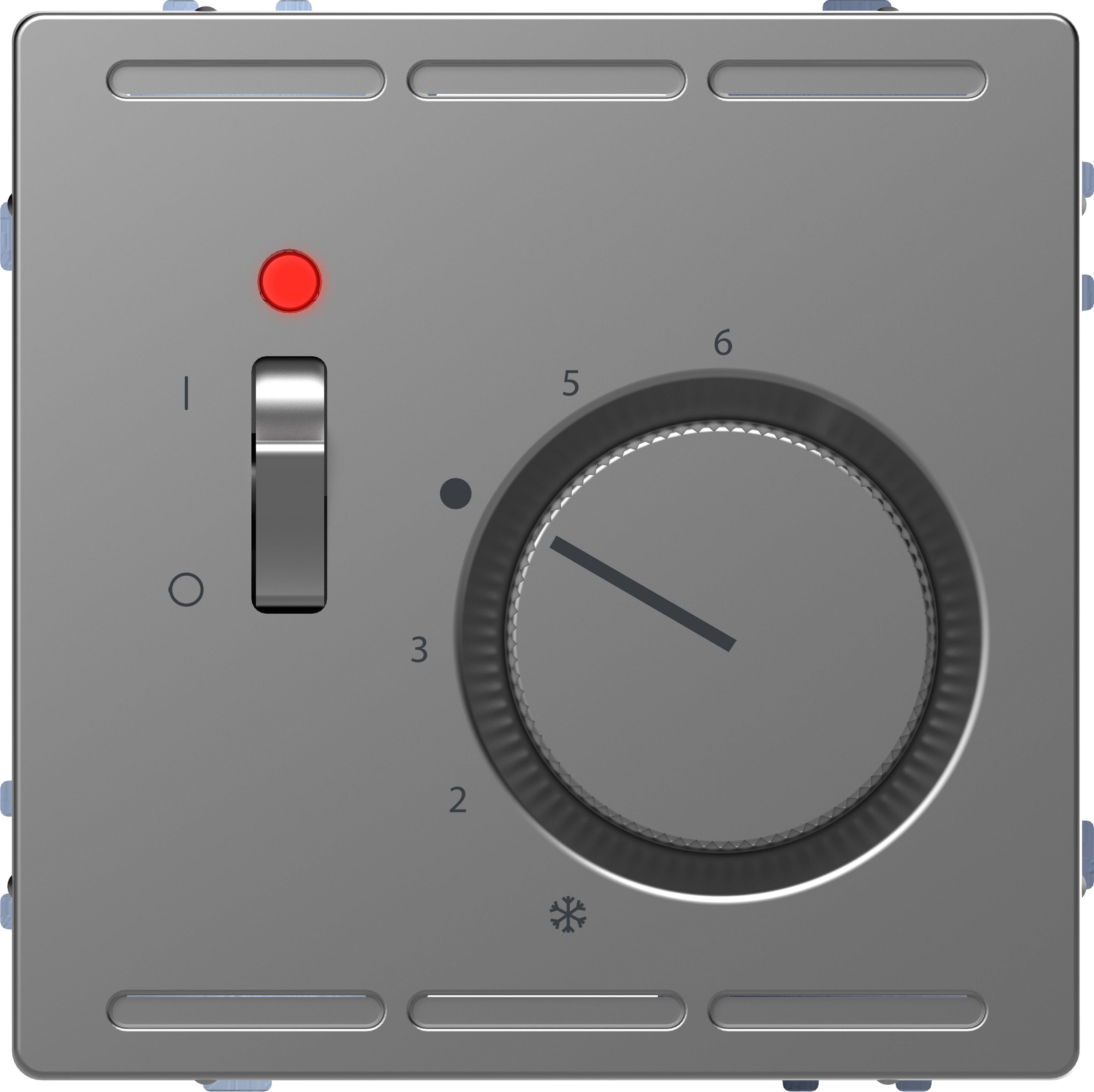

Merten MEG5761-6036 MEG5761-6036 Indoor thermostat Screw fastening 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Indoor thermostat
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Compatible with
Heaters
- Mounting type
Screw fastening
- Operating voltage
24 V
- Hysteresis
0.5 K
- Contact current
10 A
- Nighttime drop
Yes
- Factory colour
Stainless steel
- Width
71 mm
- Height
47 mm
- Length
71 mm
IP20
- Dim
(L x W x H) 71 x 71 x 47 mm
- Contact type
1 maker
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1864241 Merten MEG5761-6036 MEG5761-6036 Indoor thermostat Screw fastening 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1864241 Merten MEG5761-6036 MEG5761-6036 Indoor thermostat Screw fastening 1 pc(s)
Description
For System Design. For disconnected from the closed electromotive actuators. Range limitation in setting knob. With screw mounting. With plug-in terminals. Functions: - With on/off switch and indicator light. -1x-closing? erko stroke. Switching difference 0.5 K. Temperature range approx. 5-30 GradC. Connection for time-controlled night reduction by about 4K. - With thermal return. Nominal voltage: 24V. Nominal current (resistive): 10 A. Nominal current (DC): 4 A, max. 100 W. heating capacity rating: 240 W. Material: thermoplastic painted. Color: stainless steel.
This text is machine translated.
This text is machine translated.
