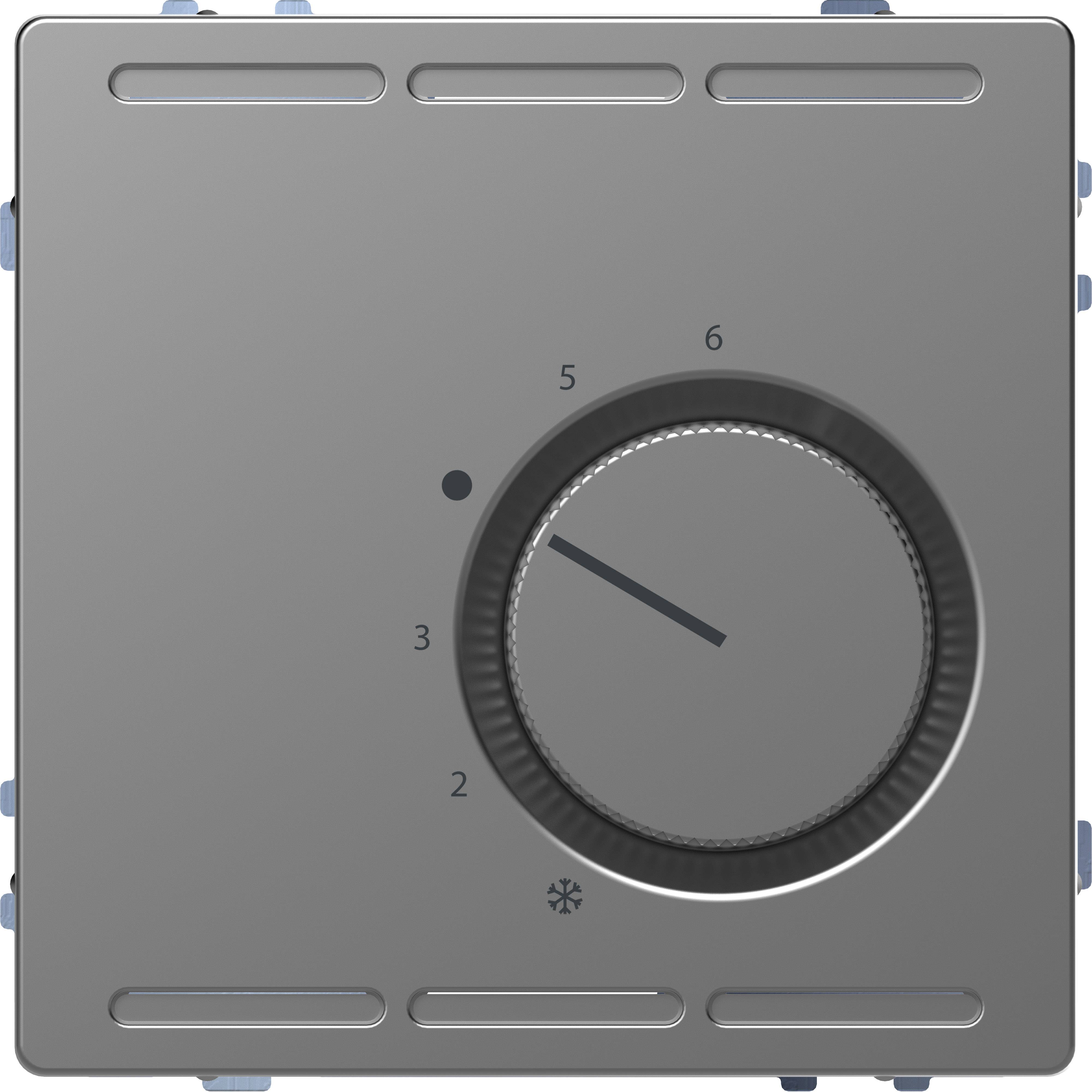

Merten MEG5763-6036 MEG5763-6036 Indoor thermostat Screw fastening 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Indoor thermostat
- Operation type
thermal
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Compatible with
Underfloor heating control
- Mounting type
Screw fastening
- Operating voltage
24 V
- Hysteresis
0.5 K
- Contact current
10 A
- Factory colour
Stainless steel
- Width
71 mm
- Height
41 mm
- Length
71 mm
IP20
- Dim
(L x W x H) 71 x 71 x 41 mm
- Contact type
1 change-over
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1864244 Merten MEG5763-6036 MEG5763-6036 Indoor thermostat Screw fastening 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1864244 Merten MEG5763-6036 MEG5763-6036 Indoor thermostat Screw fastening 1 pc(s)
Description
For System Design. For electrical floor heating, if the additional heating foot must be locked, climate control (cooling), actuators (disconnected from the open or closed). Range limitation in setting knob. With screw mounting. With plug-in terminals. Functions:-1x changer contact. Switching difference 0.5 K. Temperature range approx. 5-30 GradC. - With thermal return. Nominal voltage: 24V. Nominal current heating: 10A (DC 4A). Heating capacity rating: 240 W (DC 100 W). Nominal current cooling: 5A (DC 2 A). Cooling Capacity Rating: 120 W (DC 30 W). Material: thermoplastic painted. Color: stainless steel.
This text is machine translated.
This text is machine translated.
