Buy Merten MEG5764-6034 MEG5764-6034 Indoor thermostat Screw fastening 1 pc(s)

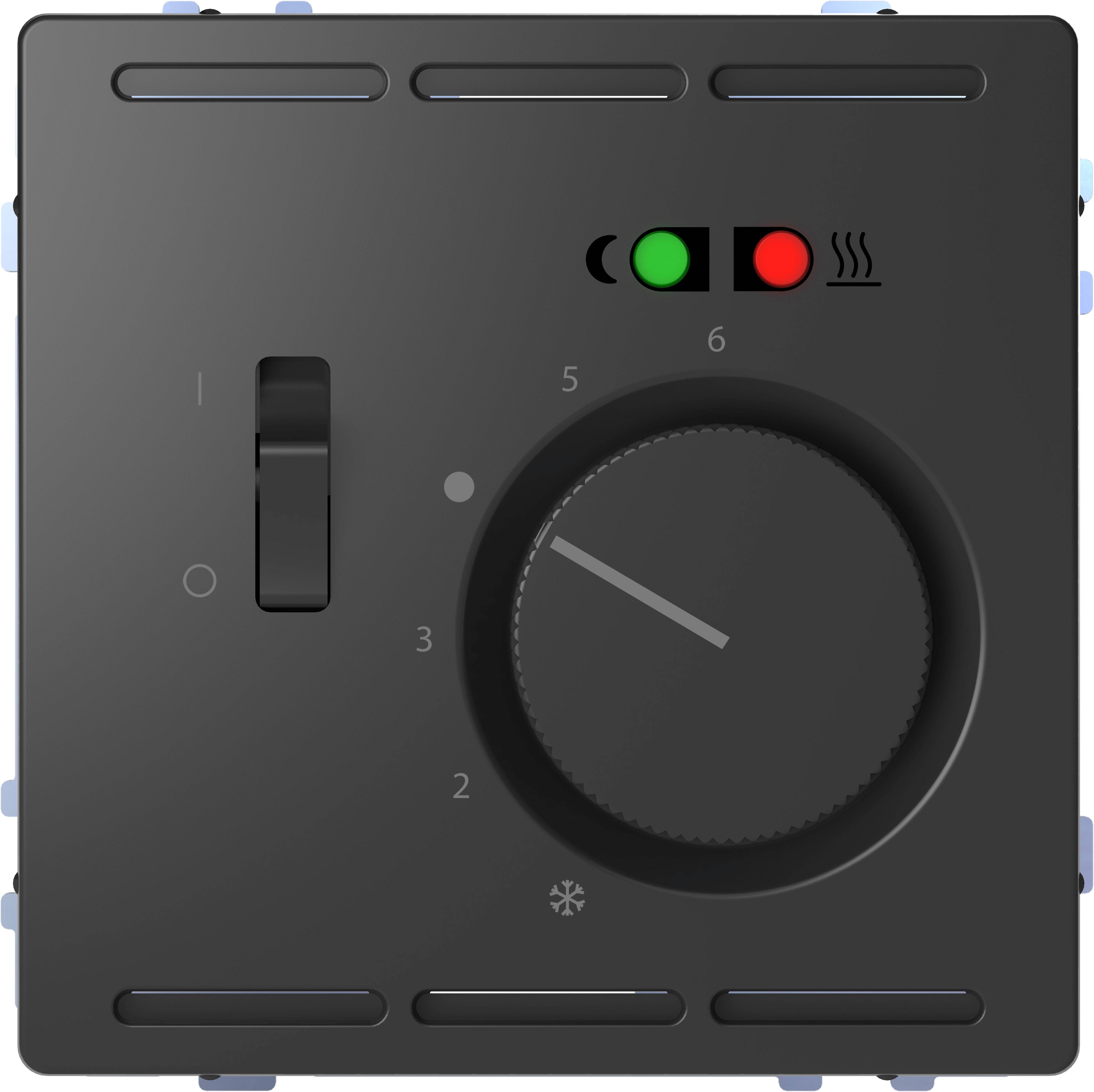

Black switch plate with rotary dial from 1 to 6. On/off slider on the left, symbols for light, heating and refrigerator at the top.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Indoor thermostat

Max. temperature setting: 50 °C

Temperature settings: 10 up to 50 °C

Display: No

Remote sensor: Yes

Compatible with: Underfloor heating

Mounting type: Screw fastening

Operating voltage: 230 V

Hysteresis: 1K

Contact current: 10 A

Nighttime drop: Yes

Factory colour: Anthracite

Width: 71 mm

Height: 41 mm

Length: 71 mm

: IP20

Dim: (L x W x H) 71 x 71 x 41 mm

Contact type: 1 maker

Min. temperature setting: 10 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1864215 Merten MEG5764-6034 MEG5764-6034 Indoor thermostat Screw fastening 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1864215 Merten MEG5764-6034 MEG5764-6034 Indoor thermostat Screw fastening 1 pc(s)

Description

For System Design. For electrical foot-floor heating with NTC sensor. Range limitation in setting knob. With Remote Sensor at 4 m cable, extendible with 2-conductor cable. With screw mounting. With plug-in terminals. Functions: - with switch and indicator lights. -1x-closing? erko stroke. Switching difference 1K. Temperature range approx. 10-50 GradC. Connection for time-controlled temperature lowering by approx. 5 K. Nominal voltage 230 V. Nominal current (resistive): 10 A. Nominal current (inductive): 4 A, cos phi = 0.6. Heating capacity rating: 2300 W Material: thermoplastic painted. Colour: anthracite
