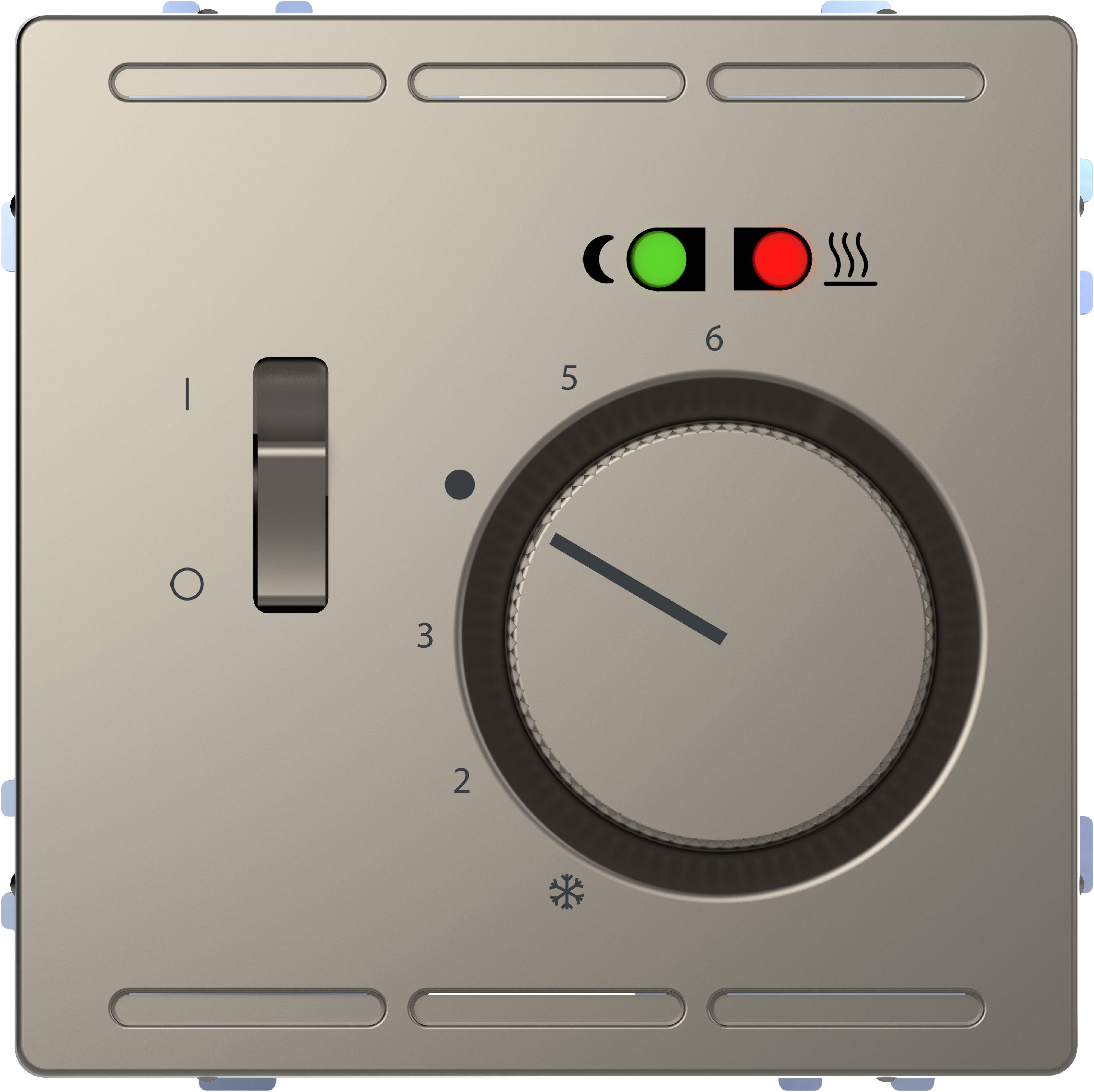

Merten MEG5764-6050 MEG5764-6050 Indoor thermostat Screw fastening 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Indoor thermostat
- Max. temperature setting
50 °C
- Temperature settings
10 up to 50 °C
- Display
No
- Remote sensor
Yes
- Compatible with
Underfloor heating
- Mounting type
Screw fastening
- Operating voltage
230 V
- Hysteresis
1K
- Contact current
10 A
- Nighttime drop
Yes
- Factory colour
Nickel
- Width
71 mm
- Height
41 mm
- Length
71 mm
IP20
- Dim
(L x W x H) 71 x 71 x 41 mm
- Contact type
1 maker
- Min. temperature setting
10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1864220 Merten MEG5764-6050 MEG5764-6050 Indoor thermostat Screw fastening 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1864220 Merten MEG5764-6050 MEG5764-6050 Indoor thermostat Screw fastening 1 pc(s)
Description
For System Design. For electrical foot-floor heating with NTC sensor. Range limitation in setting knob. With Remote Sensor at 4 m cable, extendible with 2-conductor cable. With screw mounting. With plug-in terminals. Functions: - with switch and indicator lights. -1x-closing? erko stroke. Switching difference 1K. Temperature range approx. 10-50 GradC. Connection for time-controlled temperature lowering by approx. 5 K. Nominal voltage 230 V. Nominal current (resistive): 10 A. Nominal current (inductive): 4 A, cos phi = 0.6. Heating capacity rating: 2300 W Material: metal. Color: nickel metallic.
This text is machine translated.
This text is machine translated.
