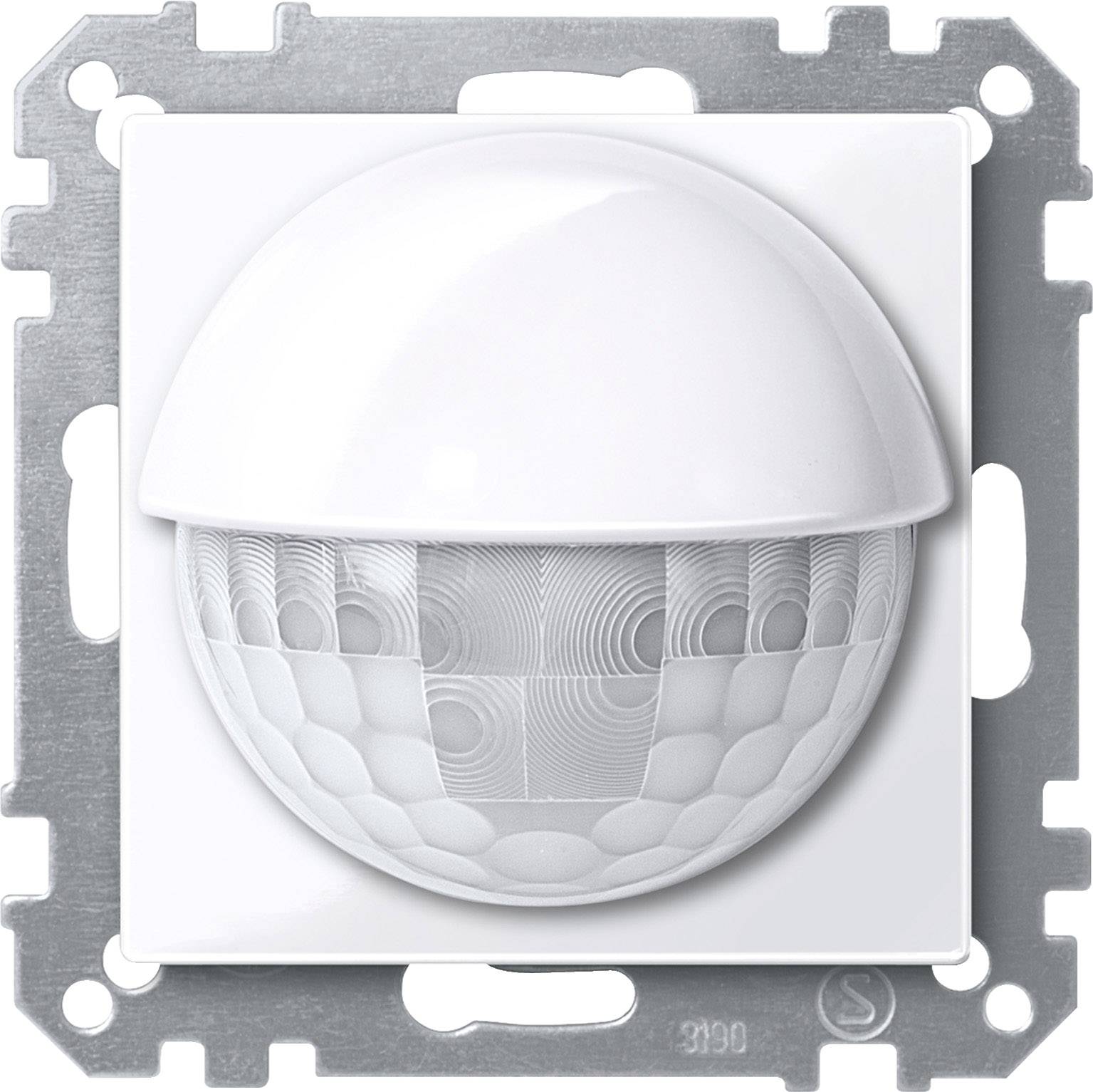

Merten Merten KNX Systeme 631725 Motion detector 631725

In the design of System M. Motion detector for the inner area with low-level detection. When a motion is a data telegram is sent through the programming defined. With integrated bus coupling unit. For wall mounting in a 60-mounted box, best used at 2.2 m. Software Functions KNX: Five movement blocks: up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, lock function. Sensitivity, brightness and staircase lighting can be connected via the ETS or adjust the potentiometer. Two motion sensors: sensitivity and range can be set separately for each sensor. Learnable staircase lighting.. Detection angle: 180 degrees. Range: 8 m left/right, 12m to the front (at a mounting height of 2.20 m). Installation height: 2.2 m or 1.1 m at half the range. Number of levels: 6. Number of zones: 46. Number of movement sensors: 2, sector-related can be set. Sensitivity: infinitely variable (ETS or potentiometer). Light sensor: continuously adjustable from 10 to 2000 Lux (ETS or potentiometer). Time: level adjustable from 1 s to 8 min (potentiometer) or adjustable from 1 s to 255 hours (ETS). Ec Directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Delivery: with bus terminal and supporting plate. With cover segments to reduce the catchment area. Material: thermoplastic brilliant, anti-bacterial. Smooth and even disinfecting surface with antibacterial effect. Color: similar to RAL 9016. Color: aktivwei? Glossy.
