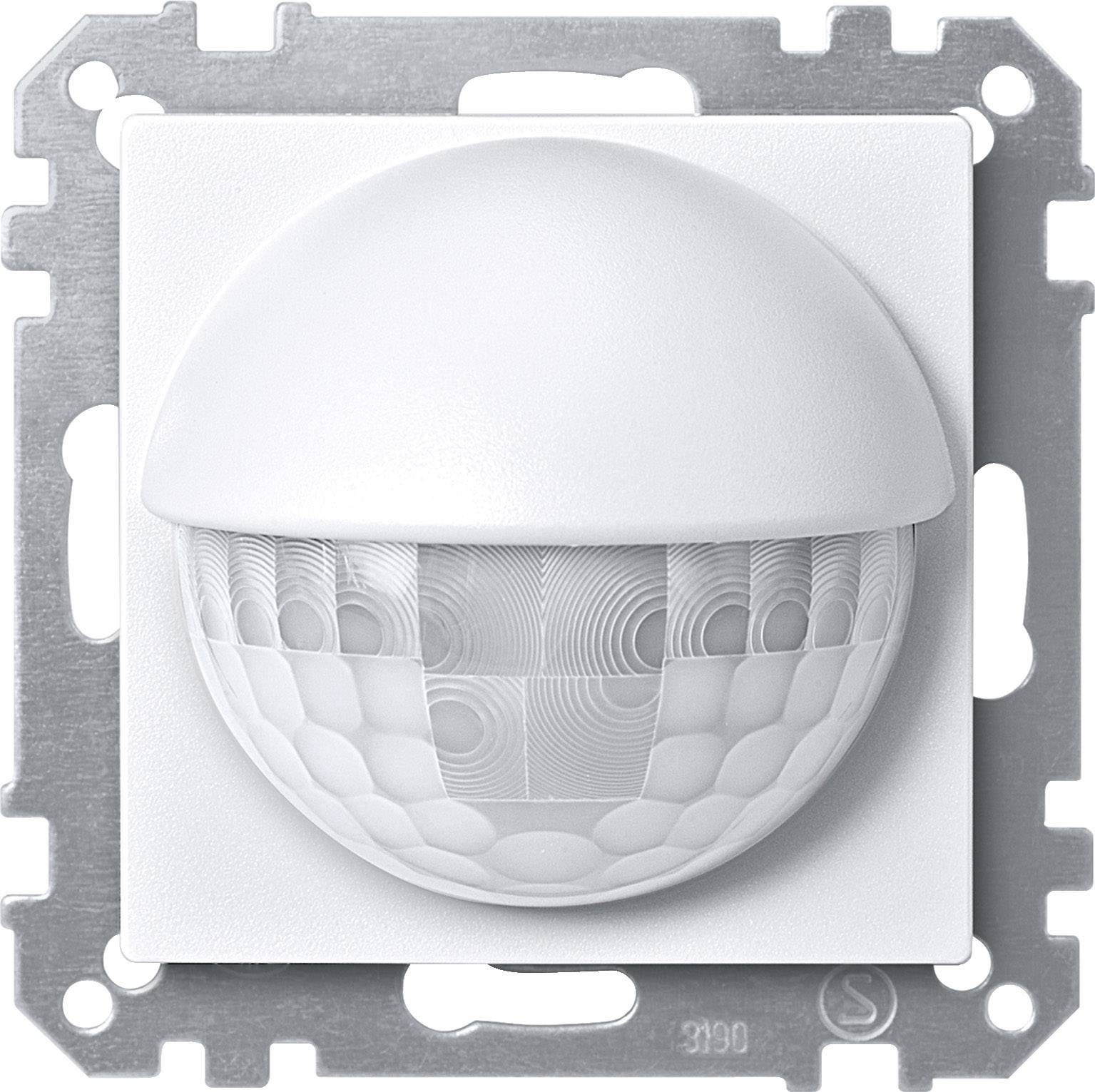

Merten Merten KNX Systeme 632719 Occupancy sensor

KNX Argus 180/2.20 m flush-mounted. For system M. motion detector for interiors with creep protection When a motion is detected, a data telegram defined by the programming is sent. With integrated bus coupler. For the wall mounting in a mounting box of the size 60, optimum mounting at a height of 2.2 m. KNX software functions: Five movement blocks: Up to four functions can be triggered per Block. Telegrams: 1 bits, 1 bytes, 2 bytes. Normal operation, Master, slave, safety pause, deactivation function. Sensitivity, brightness and staircase lighting can be adjusted via the ETS or the potentiometer. Two motion sensors: Sensitivity and range can be set separately for each sensor. Self-adjusting staircase lighting time. Detection angle: 180° Range: 8 m right/left, 12 m forward (at an installation height of 2.20 m). Mounting height: 2.2 m or 1.1 m at half range. Number of levels: 6. Number of zones: 46. Number of motion sensors: 2, sector oriented, adjustable. Sensitivity: Infinitely adjustable (ETS or potentiometer). Light sensor: Continuously adjustable from approx. 10 to 2000 lux (ETS or potentiometer). Time: Adjustable in steps from 1 s to 8 min (Potentiometer) or adjustable from 1 s to 255 hours (ETS). Contents: With bus terminal clamp and mounting plate. With cover segments to limit the detection range. Material: Thermoplastic classic matt. Colour: Polar white.
