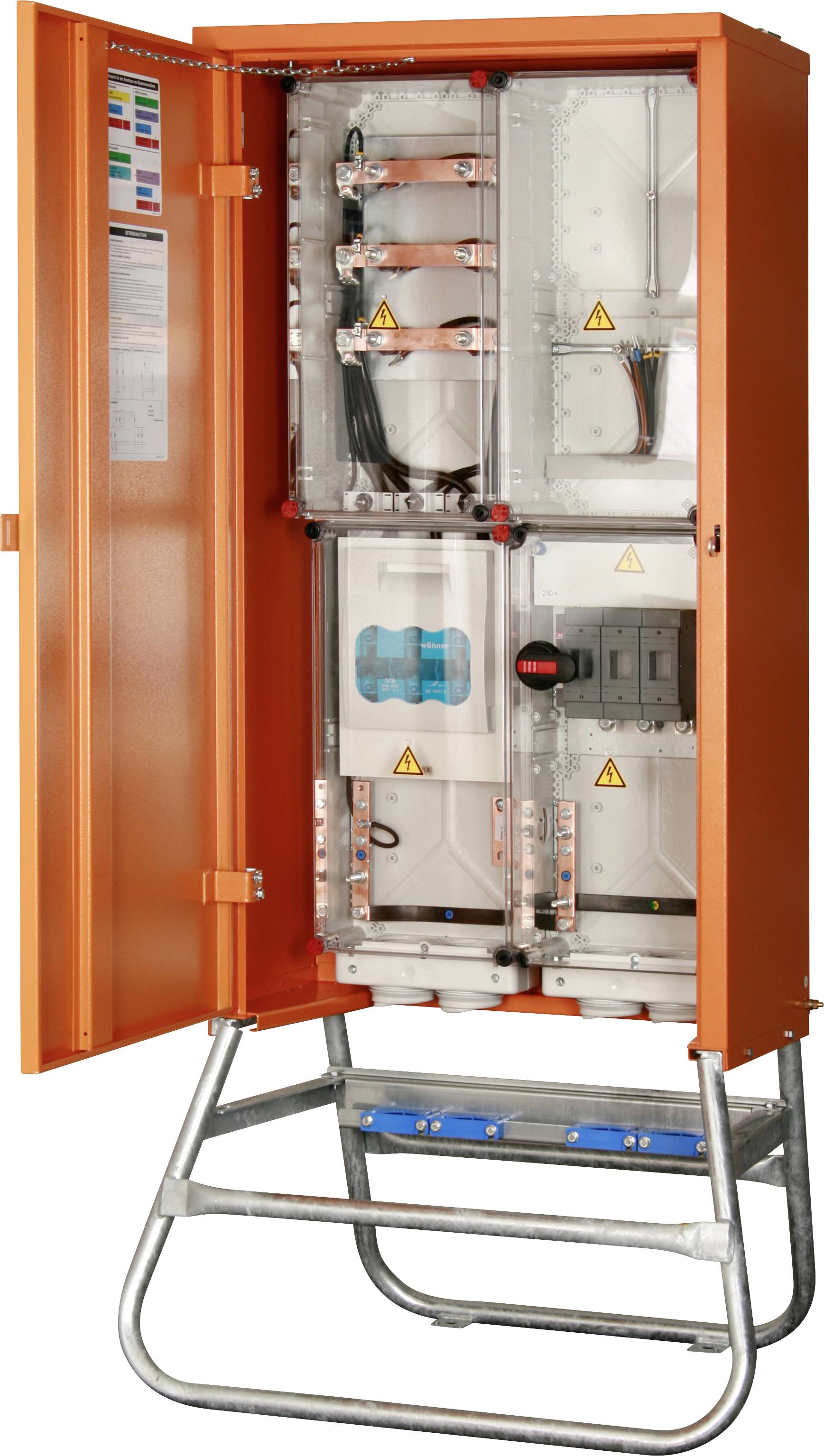

MERZ M-A 250-A Industrial power distributor MZ69019 400 V 400 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connection distributor 250 A, 1 meter field, 1 conversion seat
- Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
- 2 swinging crane eyes
- Measuring device according to DIN 43870
- All fixtures are protectively insulated
- Galvanized chassis with plastic sleeves for ground nails
- Standard DIN EN 61439-4
Technical specifications
- Product type
Industrial power distributor
- Nominal input voltage
400 V
- Nominal input current
400 A
- Nominal output voltage
400 V
- Inputs
Terminal 50-240 mm²
- Type A
Screw terminals
- Outputs
Terminal 50-150 mm²
- Type B
Screw terminals
- Standards
DIN EN 61439-4
- Dim
(W x H x D) 720 x 1800 x 400 mm
- Width
720 mm
- Height
1800 mm
- Depth
400 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
Screw terminals
Documents & Downloads
Datasheet
Datasheet 3521761 MERZ M-A 250-A Industrial power distributor MZ69019 400 V 400 A
User & Safety Instructions
User & Safety Instructions 3521761 MERZ M-A 250-A Industrial power distributor MZ69019 400 V 400 A
User & Safety Instructions 3521761 MERZ M-A 250-A Industrial power distributor MZ69019 400 V 400 A
Description
Connected load 173 kVA
Connection fuse NH2 /400 A
1 Counter field
1 conversion slot
Circuit breaker switch with fuse NH1 / 250 A
This text is machine translated.
Connection fuse NH2 /400 A
1 Counter field
1 conversion slot
Circuit breaker switch with fuse NH1 / 250 A
This text is machine translated.
Hints
Attention: Connection by a qualified electrician only; current transformer and converter counter are not included in the scope of delivery. Not suitable for Vattenfall Hamburg and Vattenfall Berlin
