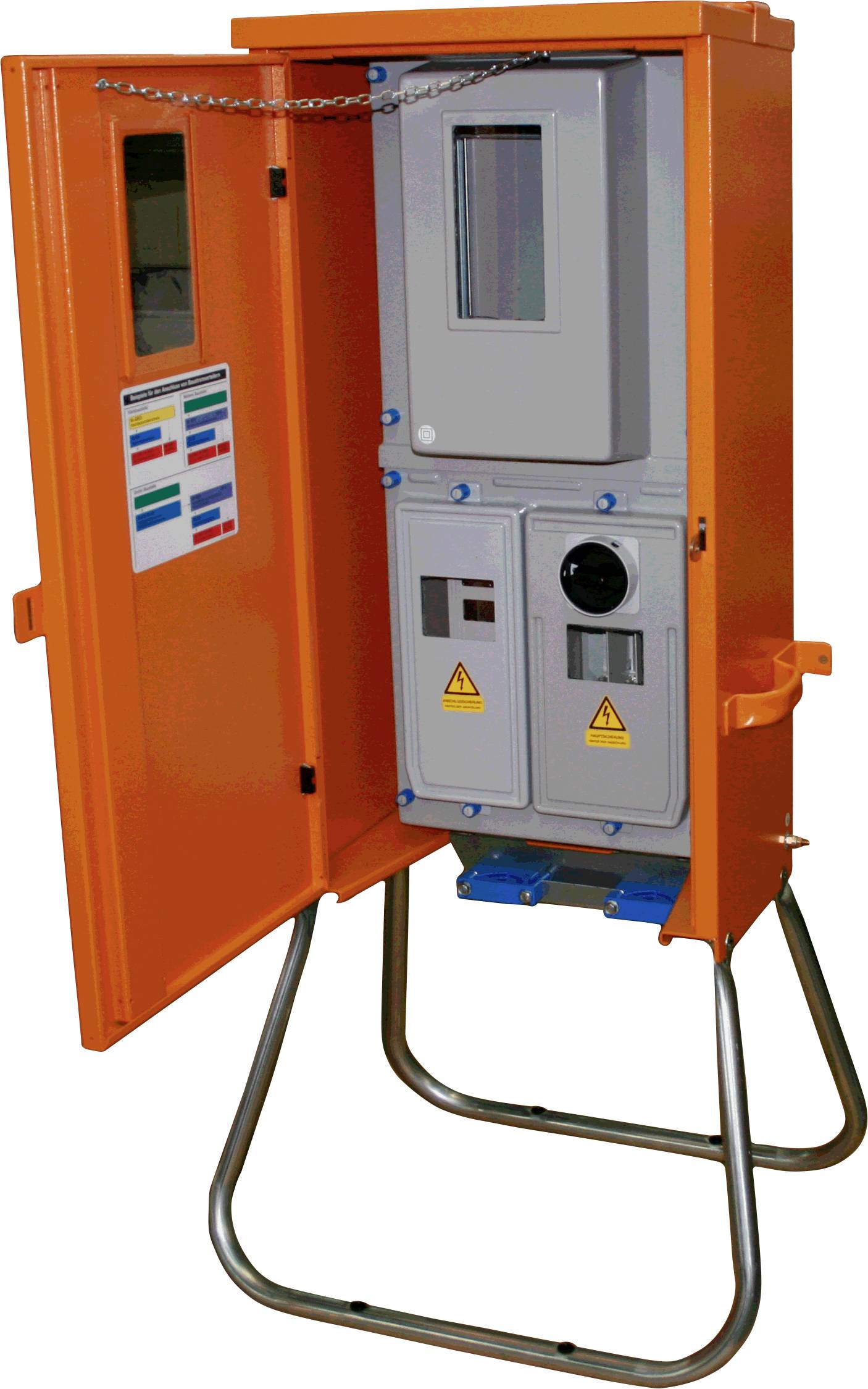

MERZ M-A 80 (ML/NHOO) Power distribution cabinet MZ69016 400 V 100 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connection distributor 80 A, 1 counter field
- Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
- 2 swinging crane eyes
- Measuring device according to DIN 43870
- All fixtures are protectively insulated
- Galvanized chassis with plastic sleeves for ground nails
- Standard DIN EN 61439-4
Technical specifications
- Product type
Power distribution cabinet
- Nominal input voltage
400 V
- Nominal input current
100 A
- Nominal output voltage
400 V
- Inputs
Terminal 6-35 mm²
- Type A
Clip terminal
- Outputs
Terminal 10-35 mm²
- Type B
Clip terminal
- Standards
DIN EN 61439-4
- Factory colour
Orange
- Dim
(W x H x D) 500 x 1430 x 285 mm
- Width
500 mm
- Height
1430 mm
- Depth
285 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
Screw terminals
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3521762 MERZ M-A 80 (ML/NHOO) Power distribution cabinet MZ69016 400 V 100 A
User & Safety Instructions
User & Safety Instructions 3521762 MERZ M-A 80 (ML/NHOO) Power distribution cabinet MZ69016 400 V 100 A
User & Safety Instructions 3521762 MERZ M-A 80 (ML/NHOO) Power distribution cabinet MZ69016 400 V 100 A
Description
Connection power 55 kVA
Mains fuse NH00 /100 A
1 Counter field
Direct measurement
Circuit breakers NH00 / 125A
This text is machine translated.
Mains fuse NH00 /100 A
1 Counter field
Direct measurement
Circuit breakers NH00 / 125A
This text is machine translated.
Hints
Attention: Connection by a qualified electrician only; current transformer and converter counter are not included in the scope of delivery. Not suitable for Vattenfall Hamburg and Vattenfall Berlin
