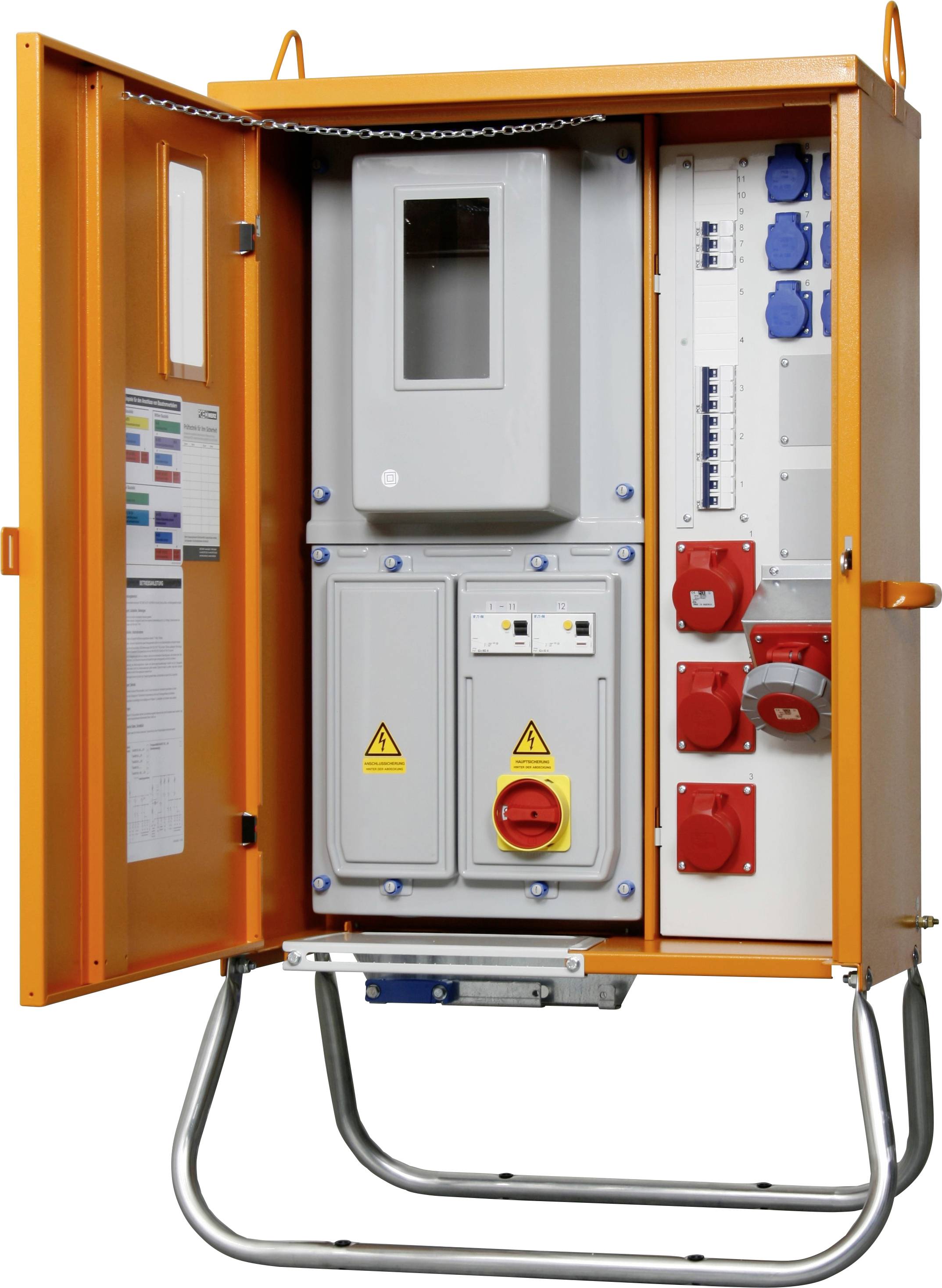

MERZ M-AVEV 63/211-6/V2/X Switchboard MZB9007 400 V 63 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connection distribution cabinet
- Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
- 2 swinging crane eyes
- Measuring device according to DIN 4387
- All fixtures are protectively insulated
- Galvanized chassis with plastic sleeves for ground nails
- Standard DIN EN 61439-4
Technical specifications
- Product type
Switchboard
- Nominal input voltage
400 V
- Nominal input current
63 A
- Nominal output voltage
400 V
- Inputs
Terminal 6-35 mm²
- Type A
Screw terminals
- Type B
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 65 A)
PG socket
- No. of CEE connectors
4
- No. of PG sockets
6
- Standards
DIN EN 61439-4
- Factory colour
Orange
- Dim
(W x H x D) 710 x 1270 x 360 mm
- Width
710 mm
- Height
1270 mm
- Depth
360 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 63 A)
PG connector
Documents & Downloads
Datasheet
Datasheet 3521764 MERZ M-AVEV 63/211-6/V2/X Switchboard MZB9007 400 V 63 A
User & Safety Instructions
User & Safety Instructions 3521764 MERZ M-AVEV 63/211-6/V2/X Switchboard MZB9007 400 V 63 A
Description
Distribution cabinet 44 kVA
Counter location:1
Main switch (layman-operated): 1
FI-Protection: 1x63/0.3A Type B, 1x63/0.03A Type B
CEE sockets 5-pole: 2x16A, 1x32A and 1x63A
Earthing contact sockets 6
Circuit breaker switch 2x16A C 3-pin.
1x32A C 3-pin; 3x16A C 1-pin.
This text is machine translated.
Counter location:1
Main switch (layman-operated): 1
FI-Protection: 1x63/0.3A Type B, 1x63/0.03A Type B
CEE sockets 5-pole: 2x16A, 1x32A and 1x63A
Earthing contact sockets 6
Circuit breaker switch 2x16A C 3-pin.
1x32A C 3-pin; 3x16A C 1-pin.
This text is machine translated.
Hints
Attention: Connection by a qualified electrician only; current transformer and converter counter are not included in the scope of delivery. Not suitable for Vattenfall Hamburg and Vattenfall Berlin
