Name: MERZ M-EV 32/21-6/G/X Switchboard MZB9075 400 V 32 A
Brand: MERZ
SKU: 3521765

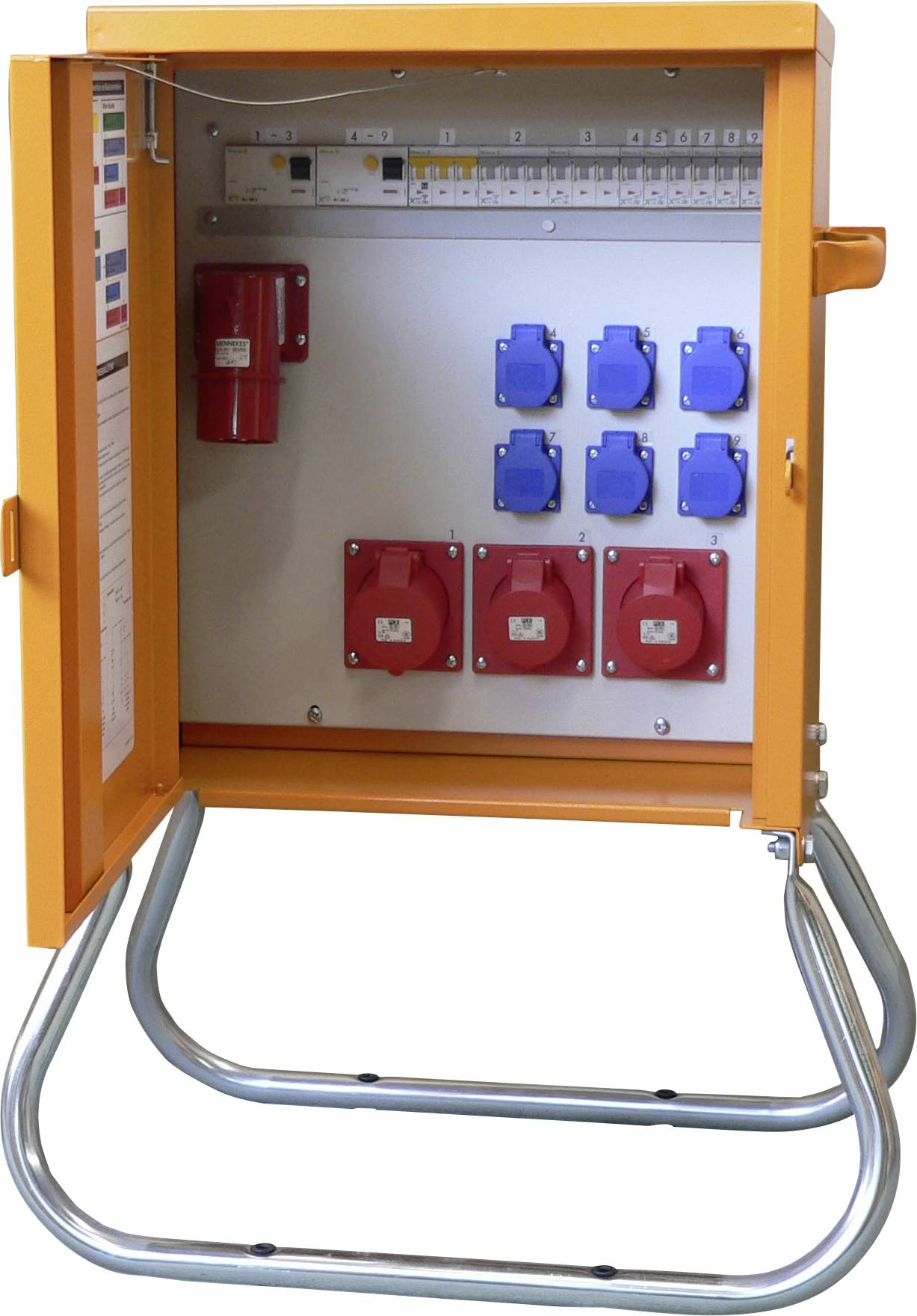

'An open electrical distribution box with orange casing, displaying circuit breakers, red and blue power sockets, and wiring inside.'

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Distribution cabinet 32 A

Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
2 swinging crane eyes
Measuring device according to DIN 43870
All fixtures are protectively insulated
Galvanized chassis with plastic sleeves for ground nails
Standard DIN EN 61439-4

Technical specifications

Product type: Switchboard

Nominal input voltage: 400 V

Nominal input current: 32 A

Nominal output voltage: 400 V

Inputs: CEE 32 A 5-pin

Type A: CEE socket (5-pin, 32 A)

Type B: CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
PG socket

No. of CEE connectors: 3

No. of PG sockets: 6

Standards: DIN EN 61439-4

Factory colour: Orange

Dim: (W x H x D) 500 x 900 x 285 mm

Width: 500 mm

Height: 900 mm

Depth: 285 mm

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): PG connector
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Documents & Downloads

Datasheet

Datasheet 3521765 MERZ M-EV 32/21-6/G/X Switchboard MZB9075 400 V 32 A

User & Safety Instructions

User & Safety Instructions 3521765 MERZ M-EV 32/21-6/G/X Switchboard MZB9075 400 V 32 A

Description

End distribution cabinet 22 kVA
1x CEE 32A 5-pin connector plug
FI-circuit breaker: 1x40/0.03A type B,
1x40/0.03A type A
CEE socket 5-pin: 2x16A, 1x32A,
Earthing contact sockets 6
Circuit breaker switch 2 x 16A C 3-pin;
1x32A C 3-pin; 6X16A C 1-pin.

This text is machine translated.
