Name: MERZ M-EV 63/22-6/G/E/X Switchboard MZB9078 400 V 63 A
Brand: MERZ
SKU: 3521766

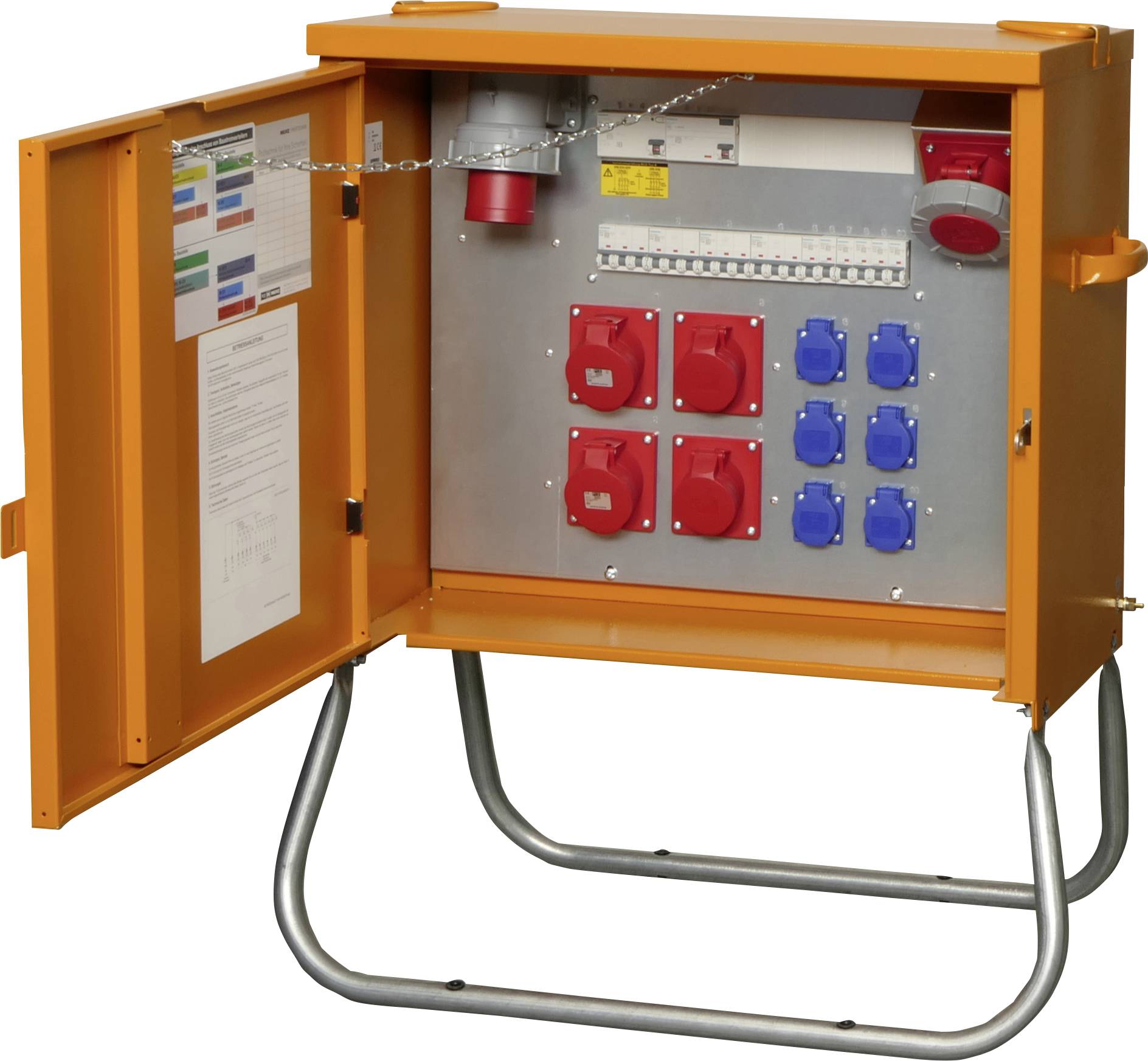

Orange electrical distribution box with open door showing various sockets and switches for power connections on a metal stand.

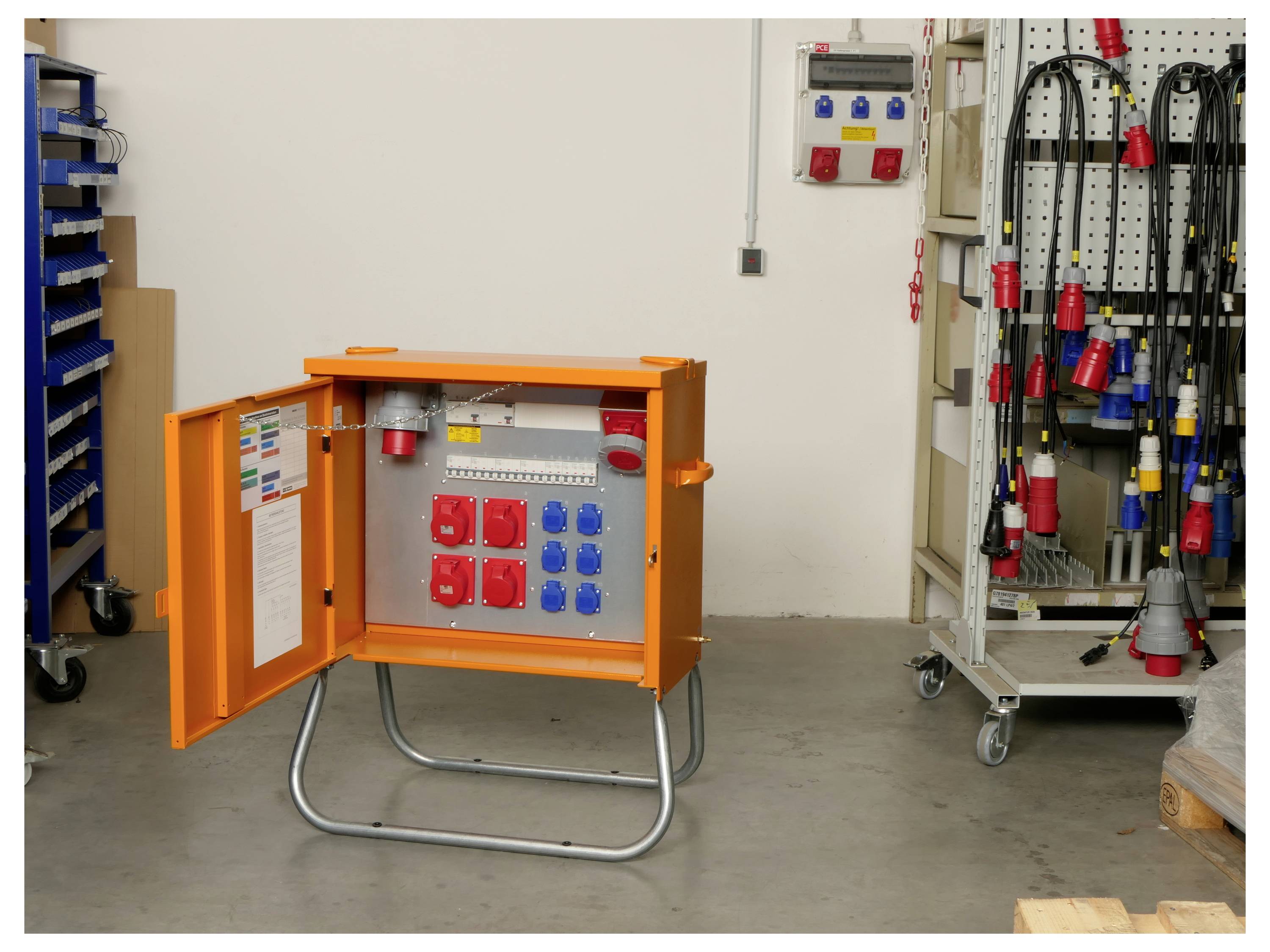

An open orange electrical power distribution box with blue and red sockets is placed on a concrete floor in a workshop setting.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Distribution cabinet 63 A

Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
2 swinging crane eyes
Measuring device according to DIN 43870
All fixtures are protectively insulated
Galvanized chassis with plastic sleeves for ground nails
Standard DIN EN 61439-4

Technical specifications

Product type: Switchboard

Nominal input voltage: 400 V

Nominal input current: 63 A

Nominal output voltage: 400 V

Inputs: CEE socket 63 A, 5-pin

Type A: CEE socket (5-pin, 65 A)

Type B: CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 65 A)
PG socket

No. of CEE connectors: 5

No. of PG sockets: 6

Standards: DIN EN 61439-4

Factory colour: Orange

Dim: (W x H x D) 710 x 935 x 360 mm

Width: 710 mm

Height: 935 mm

Depth: 360 mm

Inputs (CEE power distributor): CEE plug (5-pin, 63 A)

Outputs (CEE power distributors): PG connector
CEE connector (5-pin, 63 A)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)

Documents & Downloads

Datasheet

Datasheet 3521766 MERZ M-EV 63/22-6/G/E/X Switchboard MZB9078 400 V 63 A

User & Safety Instructions

User & Safety Instructions 3521766 MERZ M-EV 63/22-6/G/E/X Switchboard MZB9078 400 V 63 A

Description

End distribution cabinet 22 kVA
Mounted connector: 1xCEE 32A 5-pin
FI-circuit breaker 1x40/0.03A type B
1x40/0.03A type A
CEE sockets 5-pole 2 x 16A, 1x32A
Earthing contact sockets 6
Circuit breaker switch 2 x 16A C 3-pin;
1x32A C 3-pin; 6X16A C 1-pin.

This text is machine translated.
