Name: MERZ M-VEV 35/21-6/V1/X Switchboard MZB9784 400 V 32 A
Brand: MERZ
SKU: 3521745

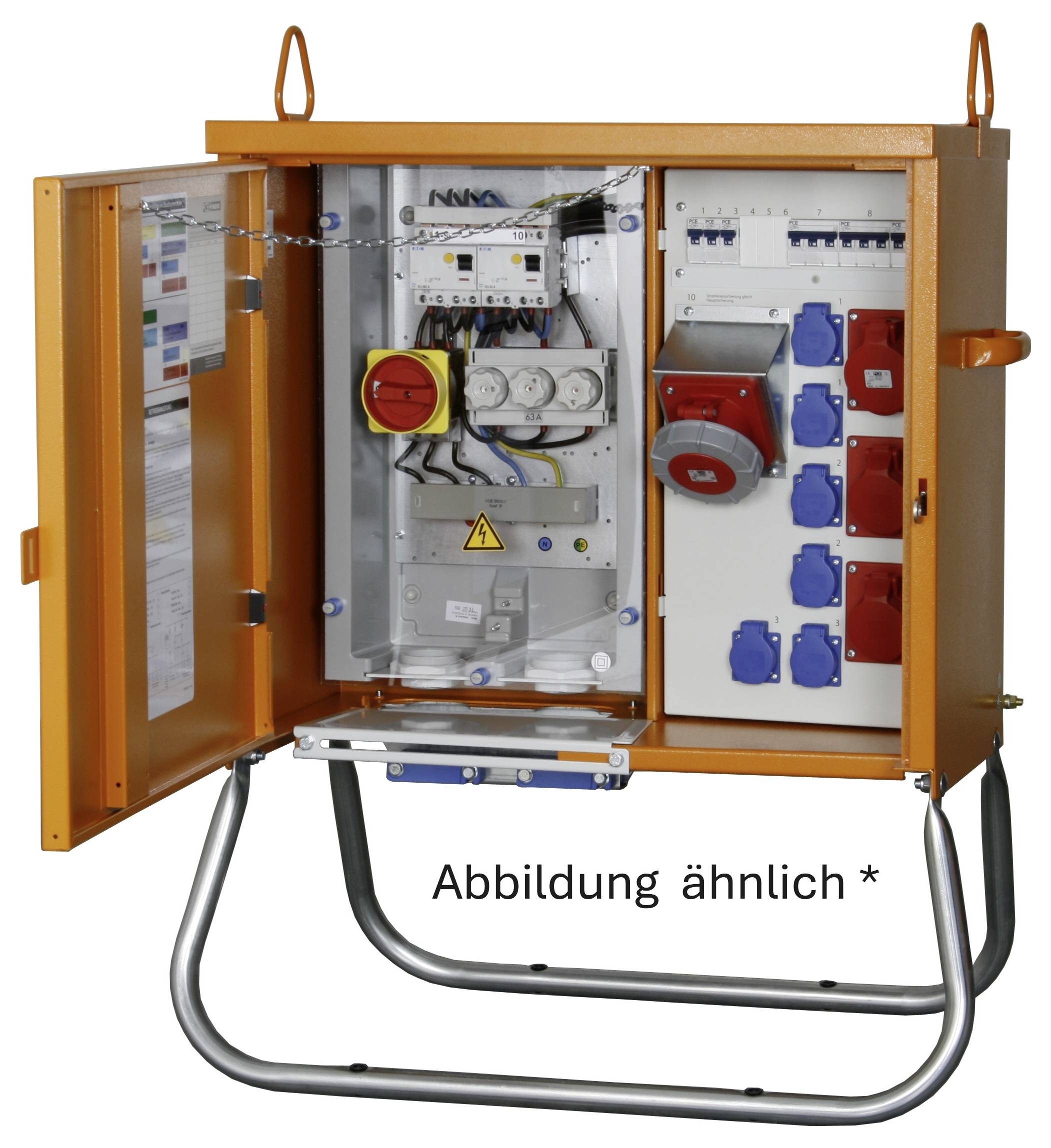

'Orange electrical distribution box with open door, showing various sockets and switches. Mounted on a metal stand. Label reads "Abbildung ähnlich".'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Switchboard 35 A

Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
2 swinging crane eyes
Measuring device according to DIN 43870
All fixtures are protectively insulated
Galvanized chassis with plastic sleeves for ground nails
Standard DIN EN 61439-4

Technical specifications

Product type: Switchboard

Nominal input voltage: 400 V

Nominal input current: 32 A

Nominal output voltage: 400 V

Inputs: Terminal 6-35 mm²

Type A: Screw terminals

Type B: CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
PG socket

No. of CEE connectors: 3

No. of PG sockets: 6

Standards: DIN EN 61439-4

Factory colour: Orange

Dim: (W x H x D) 710 x 935 x 360 mm

Width: 710 mm

Height: 935 mm

Depth: 360 mm

Inputs (CEE power distributor): Screw terminals

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

Documents & Downloads

Datasheet

Datasheet 3521745 MERZ M-VEV 35/21-6/V1/X Switchboard MZB9784 400 V 32 A

User & Safety Instructions

User & Safety Instructions 3521745 MERZ M-VEV 35/21-6/V1/X Switchboard MZB9784 400 V 32 A

Description

Distribution cabinet 22 kVA
Main switch (layman-operated): 1
FI-protection 1x40/0.03A type B
CEE sockets 5-pole 2 x 16A, 1x32A
Earthing contact sockets 6
Circuit breaker switch 2x16A C 3-pin;3x16A C 1-pin.

This text is machine translated.
