Name: MERZ M-VEV 63/211-6/V2/X Switchboard MZB9047 400 V 63 A
Brand: MERZ
SKU: 3521767

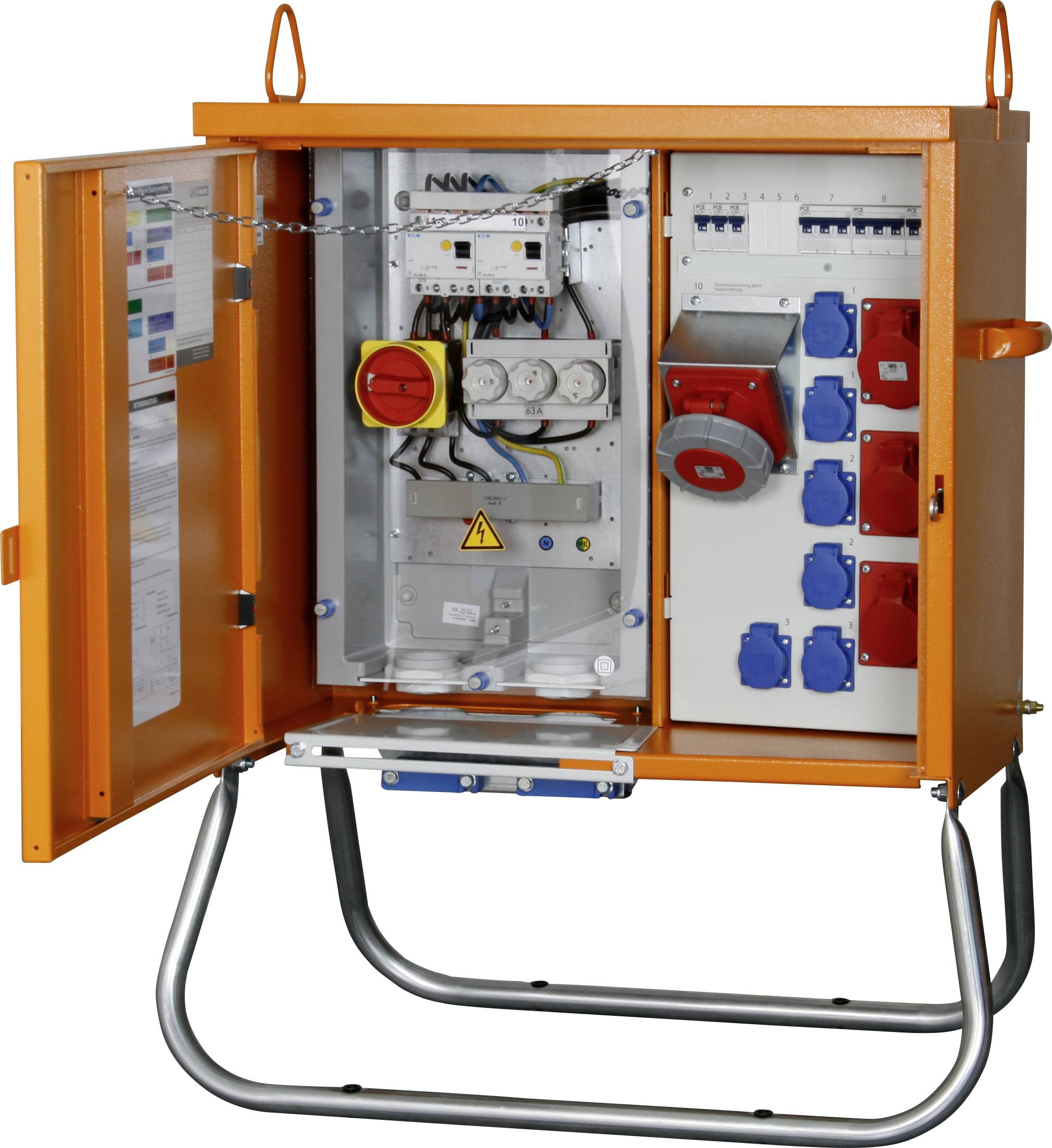

An orange electrical distribution box with multiple sockets and switches is open, showing wiring and labels inside, used for managing power connections.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Switchboard 63 A

Stable housing made of galvanized steel sheet with weather-resistant powder coating RAL 2000
2 swinging crane eyes
Measuring device according to DIN 43870
All fixtures are protectively insulated
Galvanized chassis with plastic sleeves for ground nails
Standard DIN EN 61439-4

Technical specifications

Product type: Switchboard

Nominal input voltage: 400 V

Nominal input current: 63 A

Nominal output voltage: 400 V

Inputs: Terminal 6-35 mm²

Type A: Screw terminals

Type B: PG socket
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 65 A)

No. of CEE connectors: 3

No. of PG sockets: 6

Standards: DIN EN 61439-4

Factory colour: Orange

Dim: (W x H x D) 710 x 935 x 360 mm

Width: 710 mm

Height: 935 mm

Depth: 360 mm

Inputs (CEE power distributor): Screw terminals

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 63 A)
PG connector

Documents & Downloads

Datasheet

Datasheet 3521767 MERZ M-VEV 63/211-6/V2/X Switchboard MZB9047 400 V 63 A

User & Safety Instructions

User & Safety Instructions 3521767 MERZ M-VEV 63/211-6/V2/X Switchboard MZB9047 400 V 63 A

Description

Distribution cabinet 44 kVA
Main switch (layman-operated): 1
Residual power circuit breaker: 1x63/0.3A type B,
1x63/0.03A type B
CEE sockets 5-pole: 2x16A, 1x32A and 1x63A
Earthing contact sockets 6
Circuit breaker switch 2 x 16A C 3-pin;
1x32A C 3-pin; 3x16A C 1-pin.
