Metabo 0903061278 Pump installation kit
EAN:
Part number:
Item no:
Highlights & Details
Metabo pump mounting set MSS 380-HWW M. ARMAT.
- All in one package with illustrated mounting instructions
- Filter to protect the pump and irrigation systems from damage caused by sand and dirt particles, 28 bar burst pressure
- Non-return valve: Prevents water from returning to the well or cistern
- Ball valve (closed): Prevents water from returning to the well, during maintenance work in the suction area, e.g. filter cleaning or pump deassembly
- Quick coupling as a connection possibility for suction hose fittings
- Sealing tape: Seals without hemp and sealing paste
- For mounting at the suction connection of all domestic water supply units with 1" internal thread
- Length approx. 380 mm

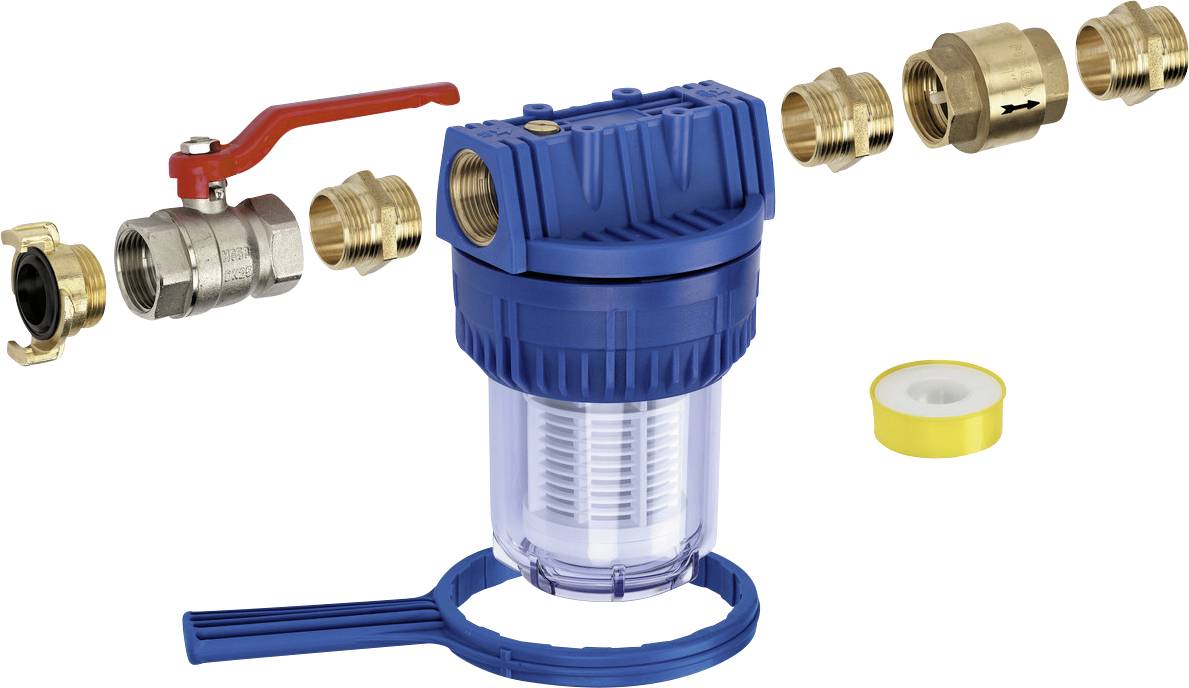

- Consisting of:
- Filter for domestic water supply long, 1" brass IG
- Washable filter insert, 80 my
- Double nipple brass, 1" AG x 1" AG
- Brass check valve, 1" female thread x 1" female thread
- Nickel-plated brass ball cock, 1" female thread x 1" female thread
- Quick coupling brass, 1" AG
- Pipe nipple galvanized, 1" AG x 1" AG x 100 mm
- Thread sealing tape, 12 m roll
- Filter wrench for loosening the filter bell
- This text is machine translated.
Technical specifications
- Product type
Pump installation kit
- UKCA
yes
