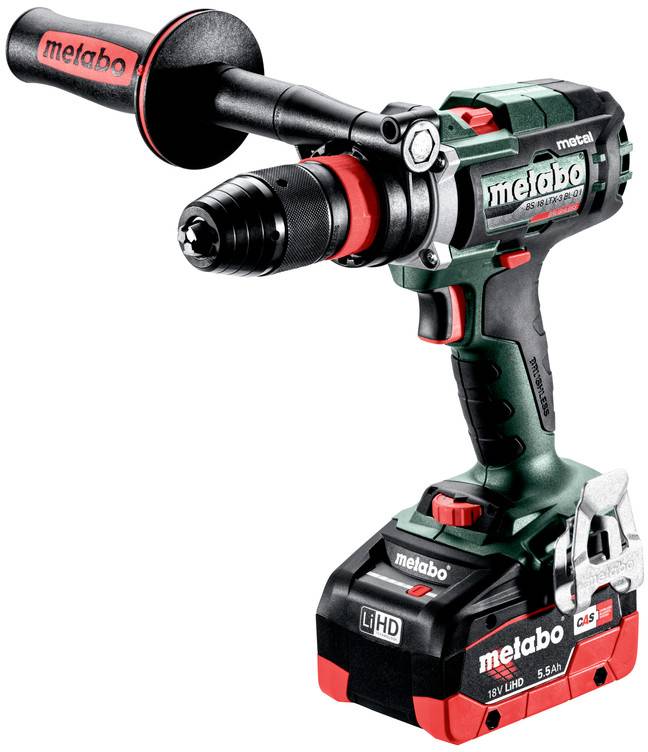

Metabo 603180660 Cordless drill 18 V LiHD incl. spare battery, brushless, incl. case
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BS 18 LTX-3 BL Q I metal battery-powered drill/screwdriver
- 18 V/ LiHD battery
- Torque (max.) (details) 18 Nm
- Screw Ø (max.) (details) 68 mm
Technical specifications
- Technology
LiHD
- Height
268 mm
- Length
233 mm
- Width
82 mm
- No. of power packs included
2
- Drill chuck clamping range
1,5 - 13 mm
- Transmission type
3-speed
- Features
incl. spare battery
brushless
incl. case
- Power supply (LOV)
rechargeable
- Tool holder
1/4" (6.3 mm) hex
- Max. drill diameter
Softwood: 68 mm/ steel: 16 mm
- Max. torque
18 Nm
- Rotational speed range
0....-4000 min
- Idle speed (details)
0 - 450 / 0 - 2000 / 0 - 4000 /min. U/min
- Type
BS 18 LTX-3 BL Q I METAL
- Max. screw Ø
68 mm
- Voltage
18 V
- Weight, information
without rechargeable batteries
- Weight
2 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3551707 Metabo 603180660 Cordless drill 18 V LiHD incl. spare battery, brushless, incl. case
User & Safety Instructions
User & Safety Instructions 3551707 Metabo 603180660 Cordless drill 18 V LiHD incl. spare battery, brushless, incl. case
User & Safety Instructions 3551707 Metabo 603180660 Cordless drill 18 V LiHD incl. spare battery, brushless, incl. case
Description
Brushless 3-speed drill driver with maximum performance, Ideal for heavy metal applications
Extremely powerful drill chuck with clamping function to prevent slipping of the application tool and highest concentricity
3. High speed gear (max. 4,000 rpm) for extended range of applications and even faster drilling progress specially in metal
Metabo QuickPlus system: Quick change of tool holder and application tool for flexible working with maximum load
Switchable pulse mode for unscrewing fixed screws and drilling on smooth surfaces
Precision Stop: Electronic torque coupling with increased precision for accurate and sensitive work
Overload protection: Protects the motor from overheating
Electronic safety shut-down: No kickback when locking the drill bit - for high user protection
Integrated LED work light with glow function for optimum brightness in the work area
With practical belt hook and bit holder, it can be attached to the left or right
With metaBOX, the intelligent solution for transport and storage
Many brands, one rechargeable battery system: This product can be combined with all 18V battery packs and chargers of the CAS brands (cordless-alliance system).
This text is machine translated.
Extremely powerful drill chuck with clamping function to prevent slipping of the application tool and highest concentricity
3. High speed gear (max. 4,000 rpm) for extended range of applications and even faster drilling progress specially in metal
Metabo QuickPlus system: Quick change of tool holder and application tool for flexible working with maximum load
Switchable pulse mode for unscrewing fixed screws and drilling on smooth surfaces
Precision Stop: Electronic torque coupling with increased precision for accurate and sensitive work
Overload protection: Protects the motor from overheating
Electronic safety shut-down: No kickback when locking the drill bit - for high user protection
Integrated LED work light with glow function for optimum brightness in the work area
With practical belt hook and bit holder, it can be attached to the left or right
With metaBOX, the intelligent solution for transport and storage
Many brands, one rechargeable battery system: This product can be combined with all 18V battery packs and chargers of the CAS brands (cordless-alliance system).
This text is machine translated.
Scope of delivery
- BS 18 LTX-3 BL Q I METAL
- Futuro Top "QuickPlus" quick-change drill chuck
- Additional handle
- C spanner
- 2 LiHD battery packs (18 V/5.5 Ah)
- FASTER EQUIPMENT ASC 145 "AIR COOLED"
- MetaBOX 145 L
- User manual.
