Name: Metabo 614305850 Cordless chopsaw w/o battery, w/o charger 305 mm 30 mm
Brand: Metabo
SKU: 2943868

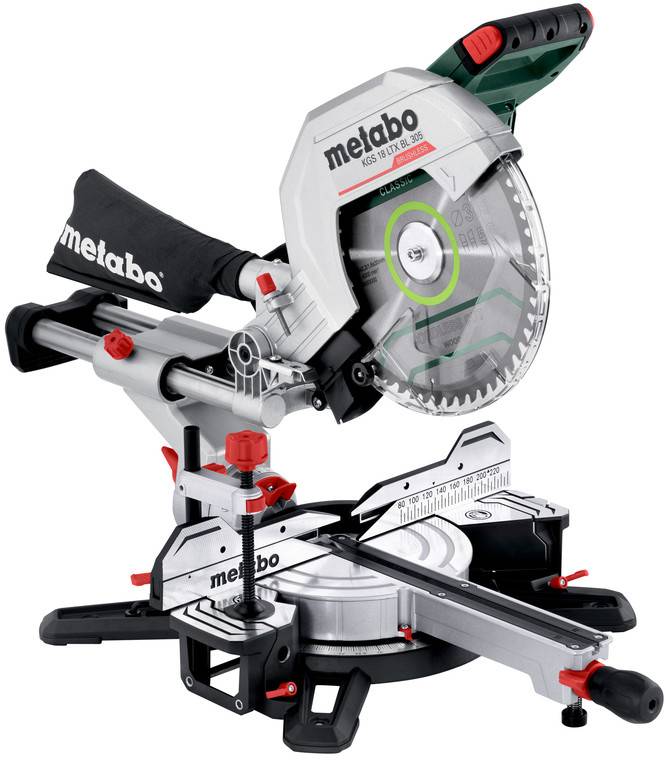

Metabo compound miter saw with blade guard, sliding arm, and adjustable base, shown on a white background.

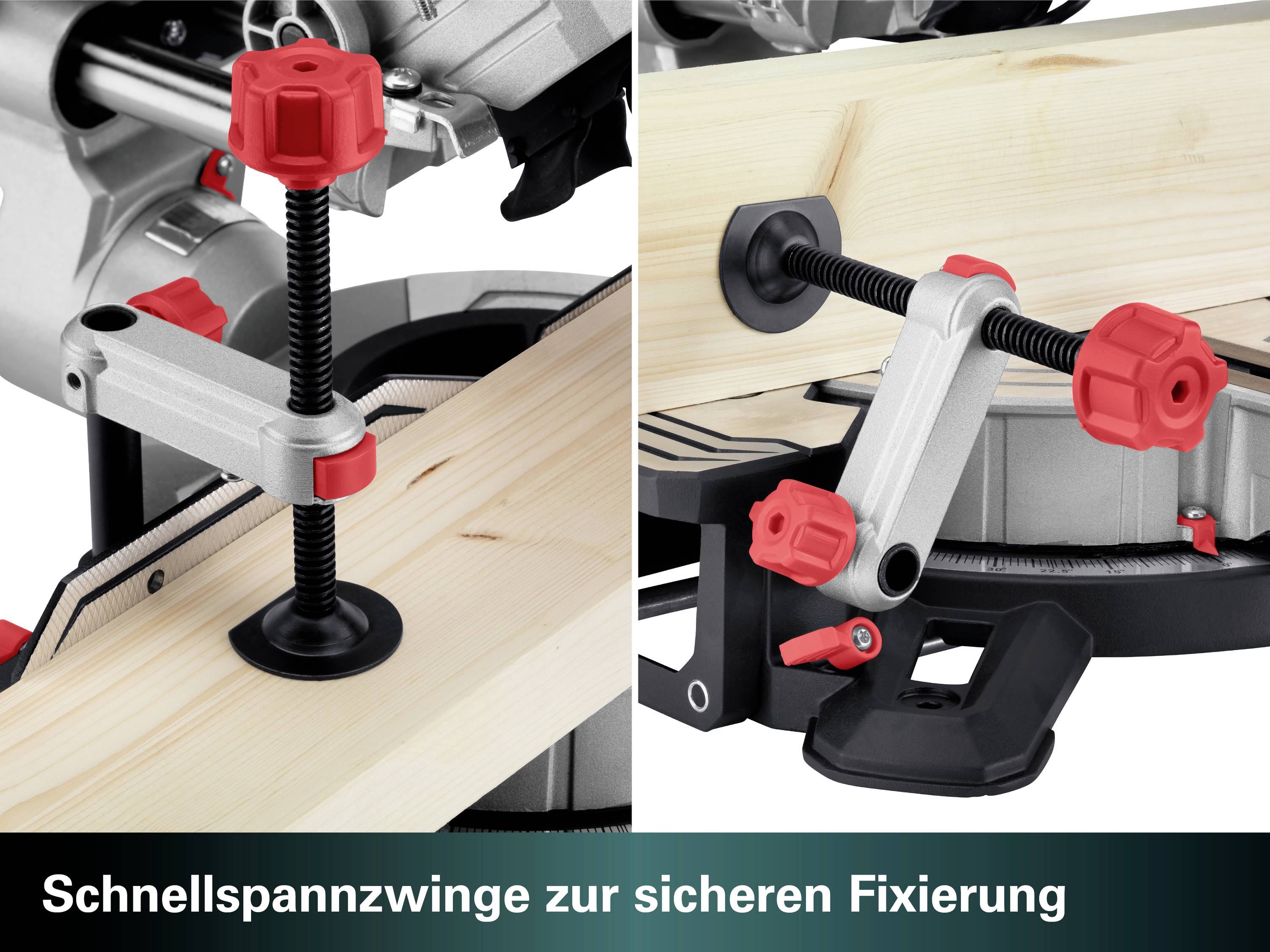

Quick-release clamp in action: Mounting secures wood-like material on a workbench. Promotes precise working through stable fixation.

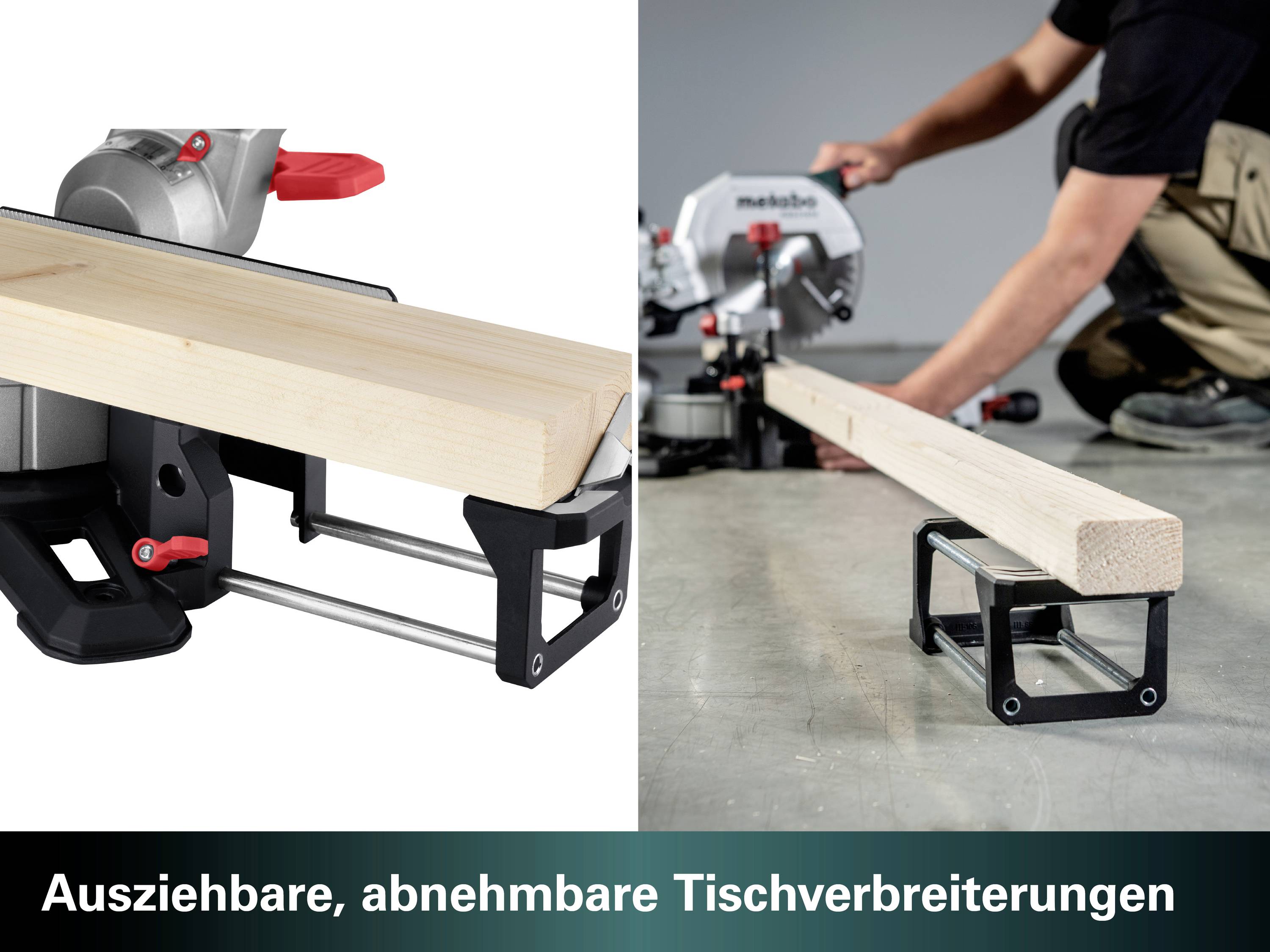

'Two images: On the left, a saw with a piece of wood on an extendable table. On the right, use of the saw with table extension.'

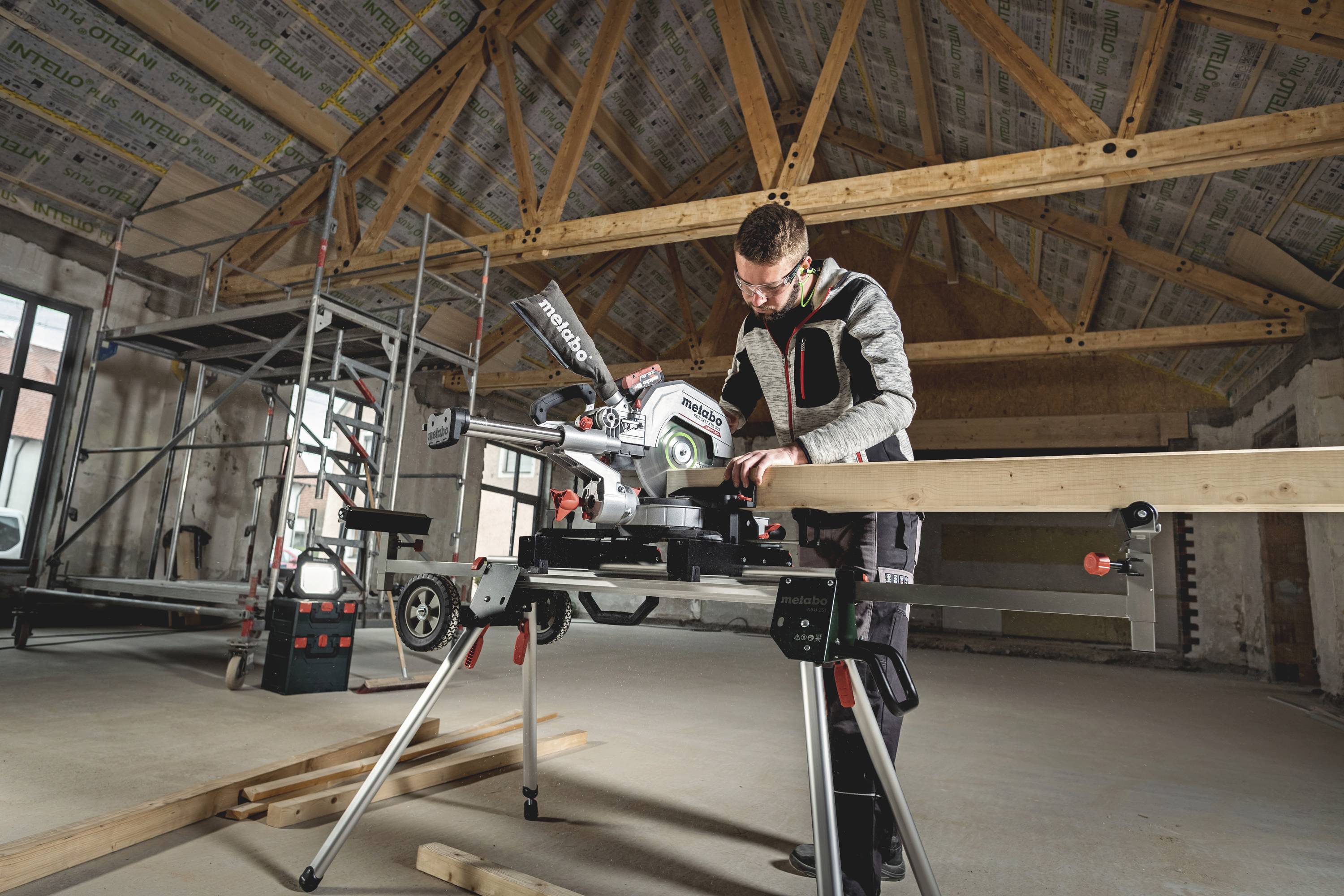

A craftsman is working in a large, unfinished wooden structure with a mitre saw. Scaffolding is visible in the background.

A person is pulling a motorised saw on wheels over bark chippings in a garden. Houses and trees are visible in the background.

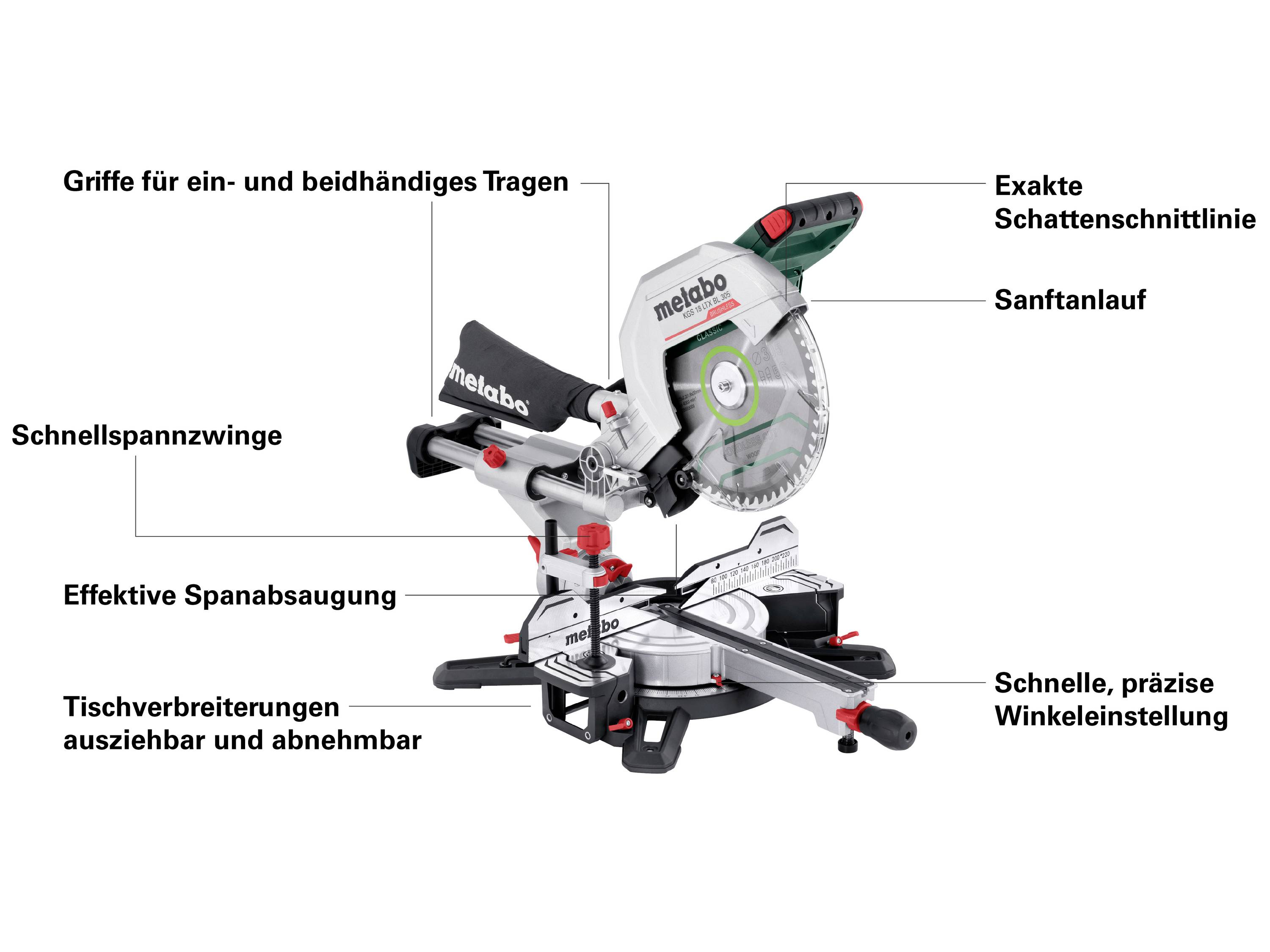

Mitre saw with details: Handles, quick-release clamp, dust extraction, extendable table extensions, soft start, precise cuts, accurate angle adjustment.

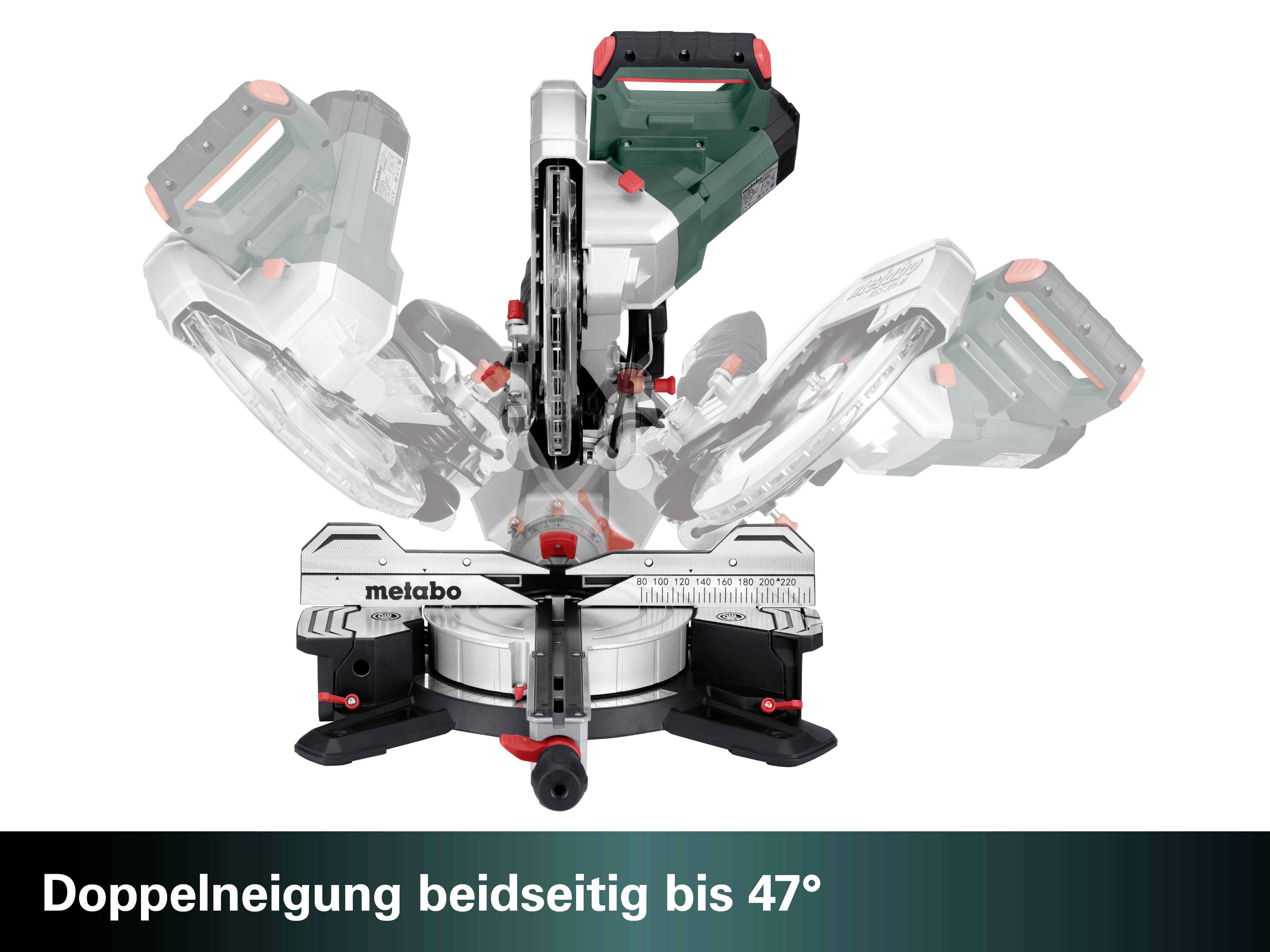

'Metabo' mitre saw demonstrates dual-sided tilt up to 47 degrees, illustrated by overlay of the saw head's movement.

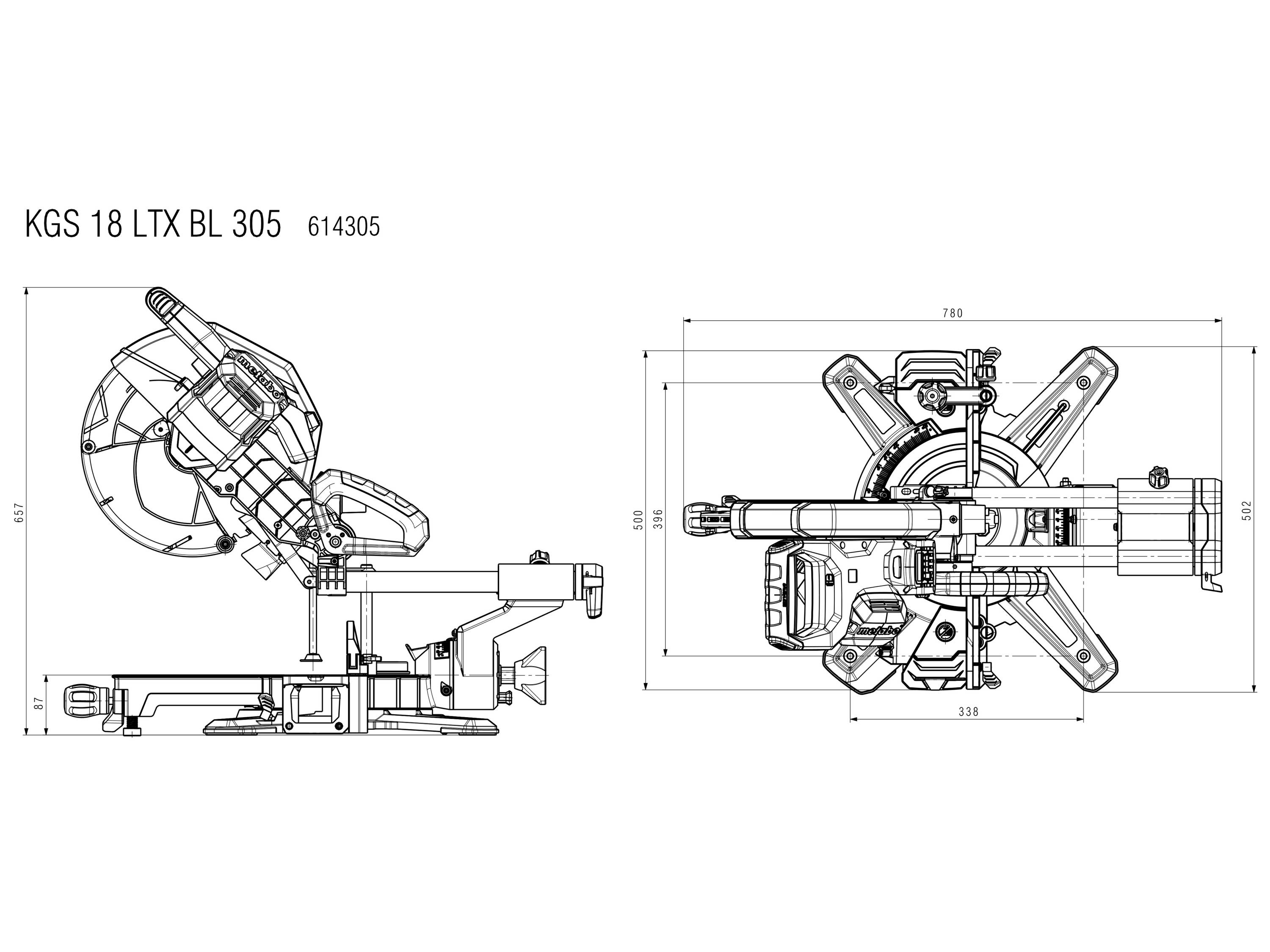

Technical drawing of a mitre saw, Model 'KGS 18 LTX BL 305', with side view and top view, including dimensional measurements in millimetres.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

KGS 18 LTX 305 cordless chopsaw

Cutting depth (max.) (45°/ 90° ): 67 mm/110 mm

Technical specifications

Supporting surface 345 x 770 mm
Max. Cutting width 90°/45° 305/215 mm
Cutting capacity 90°/90° 305 x 110 mm
Cutting capacity 45°/45° 215 x 67 mm
Turntable setting left/right: 50 / 60 °
Saw-blade inclination left/right: 47 / 47 °
Max. Cutting speed 59 m/s

Product type: Cordless chopsaw

Features: w/o battery
w/o charger

Saw blade diameter: 305 mm

Bore Ø: 30 mm

Cutting depth (max.) (45°): 67 mm

Cutting depth (max.) (90°): 110 mm

Weight: 17.4 kg

Content: 1 pc(s)

Battery voltage: 18 V

Idle speed: 3700 U/min

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2943868 Metabo 614305850 Cordless chopsaw w/o battery, w/o charger 305 mm 30 mm

User & Safety Instructions

User & Safety Instructions 2943868 Metabo 614305850 Cordless chopsaw w/o battery, w/o charger 305 mm 30 mm

Description

Largest battery chop and miter saw in the mobile M-Class - light, precise, user friendly. Powerful brushless motor for powerful sawing like with a power net machine.

This text is machine translated.

Features

Up to 120 cuts in soft wood 100 x 100 mm per battery charge (LiHD 10 Ah)
Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED
Large cutting capacity by traction function for broad work pieces
Turntable with fast, precise setting of common angles via locking points
Saw-blade inclination on both sides up to 47° for maximum flexibility
Robust design made of die-cast aluminum for the toughest requirements
Effective chip-suction via the integrated chip-collection funnel
Soft start-up and overload protection for long life of motor and gear
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
Depth stop for easy creation of grooves
All scales and control elements can be viewed and used intuitively from the working position
Ergonomic grip for one or both-handed carrying

Scope of delivery

Saw-blade "Cordless cut wood - classic" 305x30 Z56
2 integrated table extensions
Cut-off stop
Material clamp
Tool for changing saw-blade
Chip collection bag
Without battery pack
Without charger
