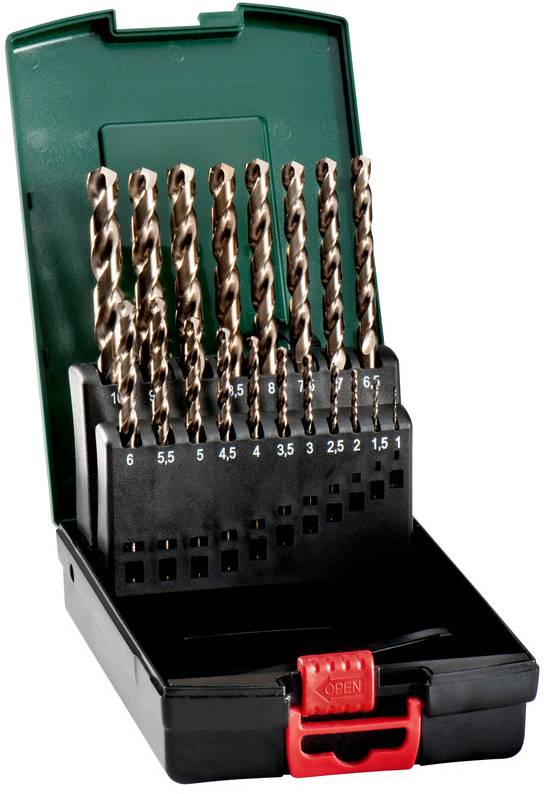

Metabo 627121000 Metal twist drill bit set 19-piece 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm
EAN:
Part number:
Item no:
Product type
Metal twist drill bit set
Drill hole Ø
1 mm
1.5 mm
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
4.5 mm
5 mm
5.5 mm
6 mm
6.5 mm
7 mm
7.5 mm
8 mm
8.5 mm
9 mm
9.5 mm
10 mm
Content
1 pc(s)
Material
HSS-Co
Material suitability
Metal
Technical specifications
- Product type
Metal twist drill bit set
- DIN standard
DIN 338
- Drill hole Ø
1 mm
1.5 mm
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
4.5 mm
5 mm
5.5 mm
Show more
- Drill hole Ø tolerance limit
h 8
- Tip angle
135°
- Content
1 pc(s)
- Material
HSS-Co
- Material properties
burnished
- Material suitability
Metal
- Tensile strength (max.)
1100 N/mm²
- Tool holder
Cylinder shank
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2001558 Metabo 627121000 Metal twist drill bit set 19-piece 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm
Warranty Terms
Warranty Terms 2001558 Metabo 627121000 Metal twist drill bit set 19-piece 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm
Description
HSS Co-Bohrerkassette, 19-piece. Precision twist drill bit from cobalt-alloyed high-performance high speed steel according to DIN 338, precision-ground, cylindrical, type N ␍. Reinforced core thickness, cross-135° according to DIN 1412 C (2 mm), diameter tolerance h8. Surface bronzes. For extraordinary stress and precision in trade and industry, for drilling in steel, stainless steel, cast steel, non-ferrous metals, plastics, special alloys, stainless steel, stainless steel up to 1100 N/mm² tensile strength.
