Metabo Air compressor Mega 350-150 D 150 l
EAN:
Part number:
Item no:
Highlights & Details

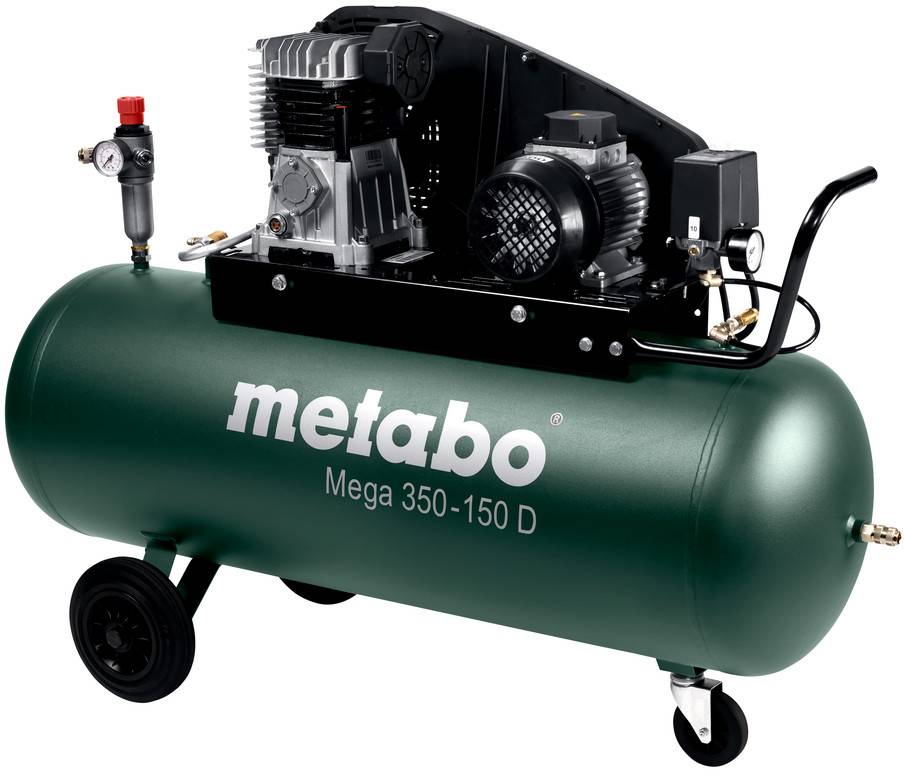

Metabo Mega 350-150 D compressor
- Powerful, robust V-belt compressor for demanding applications
- Belt drive for low speeds and particularly smooth running
- Oil-lubricated piston-compressor
- For three-phase current
- Adjustable, application-oriented working pressure through filter pressure reducer with pressure gauge
- Good cold start by pressure switch with relief valve
- Additional pressure gauge for displaying the boiler pressure
- Overload protection: Protects the motor from overheating
- Rubberized, stable wheels and pull handle for mobile use
- 10 year rust-through guarantee for boiler
- This text is machine translated.
Technical specifications
- Suction capacity 320 l/min.
- Effective delivery quantity (at 80% max. pressure): 220 l/min.
- Cable length 1.5 m.
- Max. Speed: 1350 rpm
- Max. Pressure 10 bar
- Sound pressure level 86 dB(A)
- Sound pressure level (LpA): 86 dB(A)
- Sound power level (LwA): 93 dB(A)
- Sound power level (LwA)_2: 93 dB(A)
- Product type
Air compressor
2.2 kW
- Vaccum power
320 l/min
- Flow rate
220 l/min
- Rotational speed (max.)
1350 U/min
- Boiler volume
150 l
- Operating voltage
380 V
412 V
- Length
1380 mm
- Width
420 mm
- Height
950 mm
- Weight
85 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282331 Metabo Air compressor Mega 350-150 D 150 l
Warranty Terms
Warranty Terms 2282331 Metabo Air compressor Mega 350-150 D 150 l
Description
Scope of delivery
- 3 universal couplings
