Metabo Air compressor Mega 520-200 D 200 l
EAN:
Part number:
Item no:
Highlights & Details

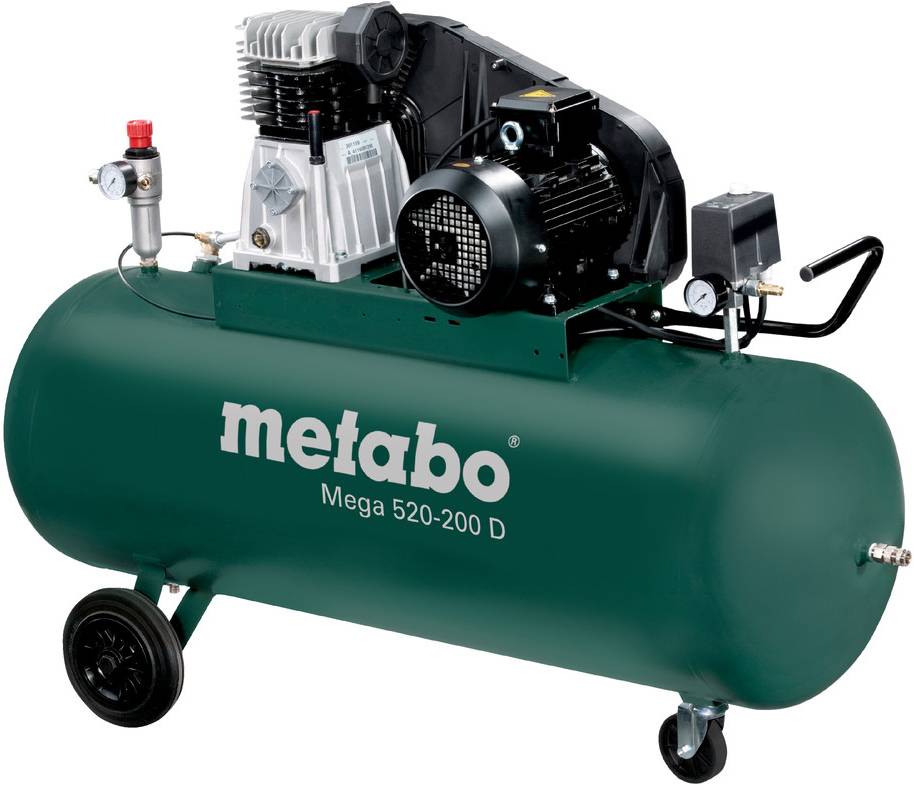

Metabo Mega 520-200 D compressor
- Powerful, robust V-belt compressor for demanding applications
- Belt drive for low speeds and particularly smooth running
- For three-phase current
- Adjustable, application-oriented working pressure through filter pressure reducer with pressure gauge
- Good cold start by pressure switch with relief valve
- Additional pressure gauge for displaying the boiler pressure
- Overload protection: Protects the motor from overheating
- Oil-lubricated 2-cylinder piston compressor for high air supply
- Rubberized, stable wheels and pull handle for mobile use
- 10 year rust-through guarantee for boiler
- This text is machine translated.
Technical specifications
- Intake capacity 490 l/min.
- Effective delivery quantity (at 80% max. pressure): 320 l/min.
- Cable length 1.5 m.
- Max. Speed 1300 rpm
- Max. Pressure 10 bar
- Sound pressure level 89 dB(A)
- Sound pressure level (LpA) 89 dB(A)
- Sound power level (LwA): 96 dB(A)
- Sound power level (LwA)_2: 96 dB(A)
- Product type
Air compressor
3 kW
- Vaccum power
490 l/min
- Flow rate
320 l/min
- Rotational speed (max.)
1300 U/min
- Boiler volume
200 l
- Operating voltage
230 V
- Length
1500 mm
- Width
450 mm
- Height
960 mm
- Weight
131 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282327 Metabo Air compressor Mega 520-200 D 200 l
Warranty Terms
Warranty Terms 2282327 Metabo Air compressor Mega 520-200 D 200 l
Description
Scope of delivery
- 3 universal couplings
