Metabo Air compressor Mega 650-270 D 270 l
EAN:
Part number:
Item no:

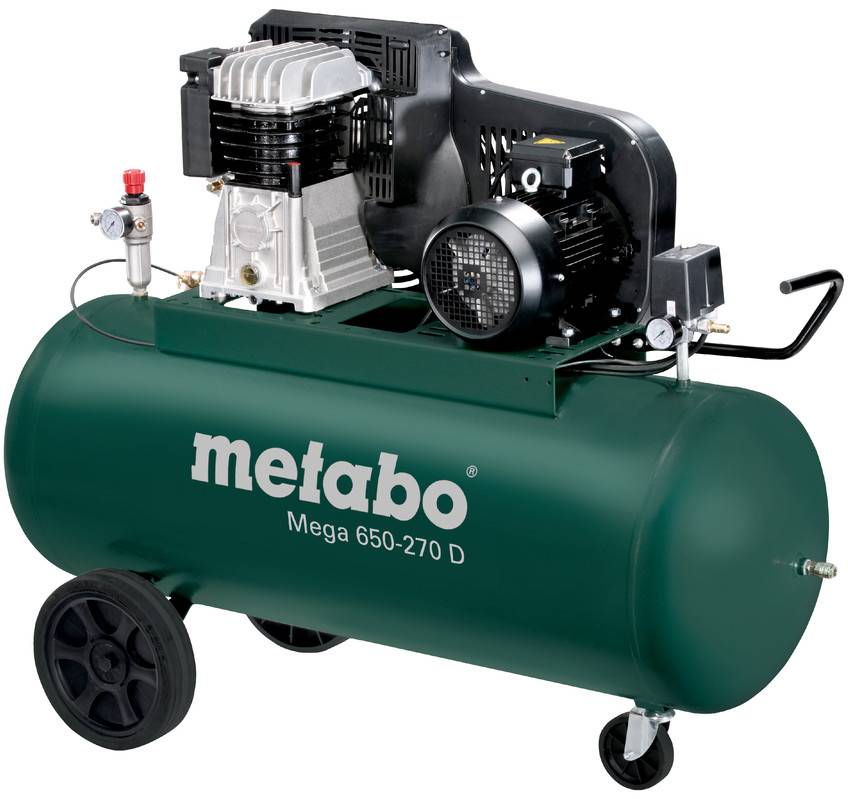

Metabo Mega 650-270 D compressor
Highlights & Details
- Powerful, robust V-belt compressor for demanding applications
- Belt drive for low speeds and particularly smooth running
- Two-stage compression for particularly high performance and long life
- For three-phase current
- Adjustable, application-oriented working pressure through filter pressure reducer with pressure gauge
- Good cold start by pressure switch with relief valve
- Additional pressure gauge for displaying the boiler pressure
- Overload protection: Protects the motor from overheating
- Oil-lubricated 2-cylinder piston compressor for high air supply
- Aftercooler for less condensation
- Rubberized, stable wheels and pull handle for mobile use
- 10 year rust-through guarantee for boiler
- This text is machine translated.
Technical specifications
- Suction power 650 l/min.
- Effective delivery quantity (at 80% max. pressure): 450 l/min.
- Cable length 1.5 m.
- Max. Speed: 1400 rpm
- Max. Pressure 11 bar
- Sound pressure level 88 dB(A)
- Sound pressure level (LpA): 88 dB(A)
- Sound power level (LwA) 97 dB(A)
- Sound power level (LwA)_2: 97 dB(A)
- Product type
Air compressor
4 kW
- Vaccum power
650 l/min
- Flow rate
450 l/min
- Rotational speed (max.)
1400 U/min
- Boiler volume
270 l
- Operating voltage
230 V
- Length
1530 mm
- Width
600 mm
- Height
1160 mm
- Weight
170 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282328 Metabo Air compressor Mega 650-270 D 270 l
Warranty Terms
Warranty Terms 2282328 Metabo Air compressor Mega 650-270 D 270 l
Description
Scope of delivery
- 3 universal couplings
