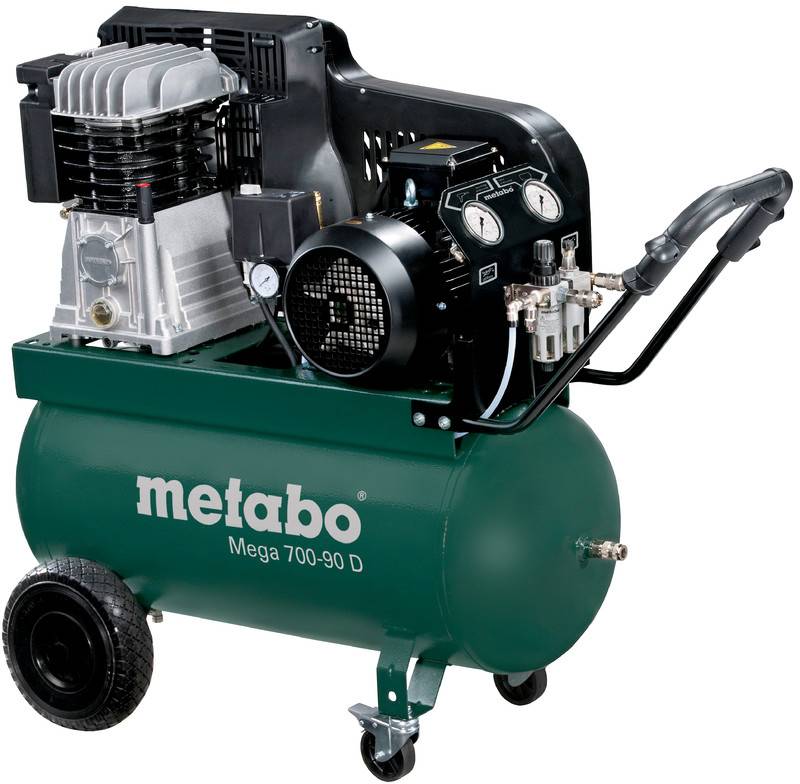

Metabo Air compressor Mega 700-90 D 90 l 11 bar
EAN:
Part number:
Item no:
Highlights & Details
Compressor Mega 700-90 D
- Boiler volume: 90 l
Technical specifications
- Cable length: 1.5 m
- Product type
Air compressor
- No. of cylinders
2
4 kW
- Vaccum power
650 l/min
- Flow rate
450 l/min
- Operation pressure
11 bar
- Rotational speed (max.)
1400 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- Length
1188 mm
- Width
520 mm
- Height
1110 mm
- Weight
119 kg
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1719328 Metabo Air compressor Mega 700-90 D 90 l 11 bar
Warranty Terms
Warranty Terms 1719328 Metabo Air compressor Mega 700-90 D 90 l 11 bar
Description
Features
- High-performance, robust v-belt compressor for the sophisticated application
- Belt-drive for low speeds and particularly smooth running
- Two-stage compression for particularly high performance and long service life.
- For three-phase current
- Adjustable, application-compliant working pressure and improved air quality by Filter pressure reducer with manometer and mist oiler
- Good cold start by pressure switch with relief valve
- Additional manometers for displaying the boiler pressure
- Overload protection: protects the engine from overheating
- Oil-lubricated 2-cylinder piston compressors for high air quantity supplied
- Instrument panel with easy-to-read pressure gauges for boiler and pressure of work
- After-cooler for less condensation
- Large, rubber-coated wheels for easy transport
- Swivel castors with locking brake for high manoeuvrability
- Storage option for the cable
- Ergonomic, long handle with integrated cable winding.
- This text is machine translated.
Scope of delivery
- 3 universal couplings.
