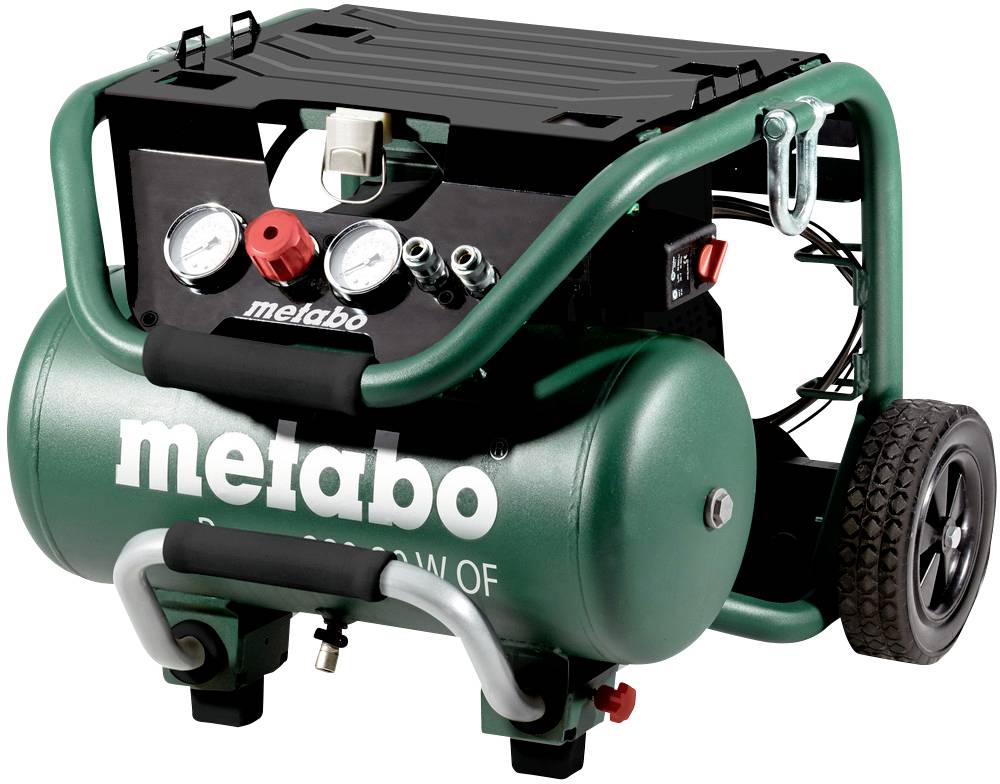

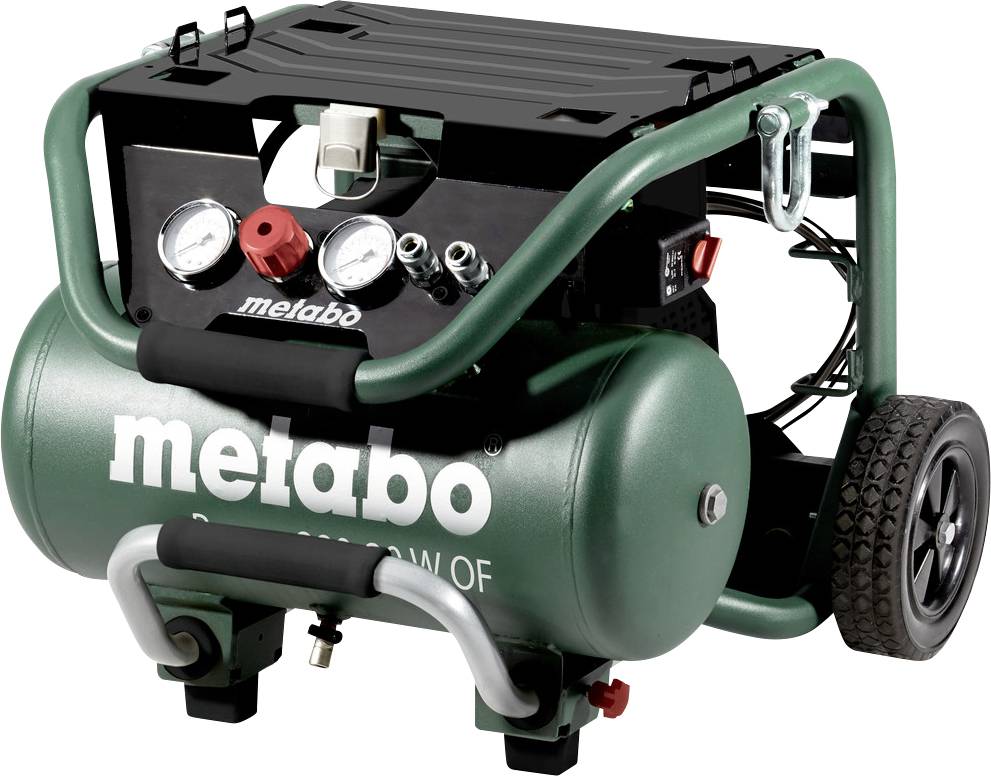

Metabo Air compressor Power 280-20 W OF 20 l
EAN:
Part number:
Item no:
Highlights & Details
Metabo power 280-20 W OF compressor
- Compact and mobile piston compressor for flexible use in interior fittings and on construction sites
- For single-phase alternating current
- Oil-free piston compressor: Easy transport and reduced service costs
- Adjustable, application-oriented working pressure through pressure reducer with pressure gauge
- Fittings and control elements in the pipe frame are protected and clearly visible
- Rubberized, stable wheels and pull handle for mobile use
- Winding option for the cable
- Good cold start by pressure switch with relief valve
- Overload protection: Protects the motor from overheating
- Rubberized feet for optimum stability
- Mounting and transport options for Metaloc and other common case systems
- Crane eyelets for safe and easy transport on the construction site
- This text is machine translated.
Technical specifications
- Suction power 280 l/min
- Effective delivery quantity (at 80% max. pressure): 140 l/min.
- Cable length 4 m
- Max. Speed: 2850 rpm
- Max. Pressure 10 bar
- Sound pressure level 83 dB(A)
- Sound pressure level (LpA): 83 dB(A)
- Sound power level (LwA) 97 dB(A)
- Sound power level (LwA)_2: 97 dB(A)
- Product type
Air compressor
1.7 kW
- Vaccum power
280 l/min
- Flow rate
140 l/min
- Rotational speed (max.)
2850 U/min
- Boiler volume
20 l
- Operating voltage
230 V
- Length
580 mm
- Width
600 mm
- Height
500 mm
- Weight
40 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282330 Metabo Air compressor Power 280-20 W OF 20 l
Warranty Terms
Warranty Terms 2282330 Metabo Air compressor Power 280-20 W OF 20 l
Description
Scope of delivery
- 2 universal quick-couplings
