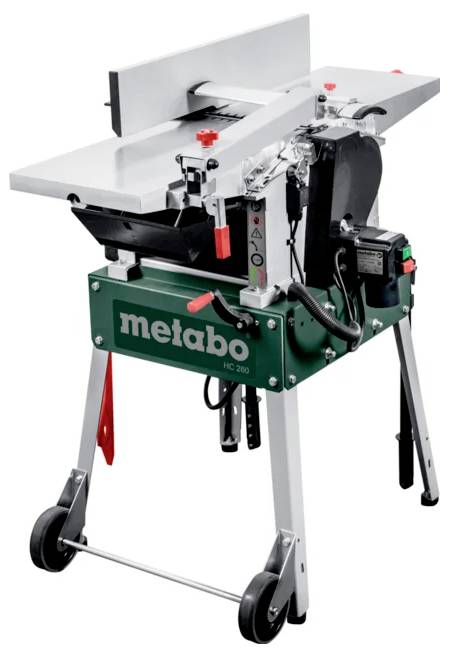

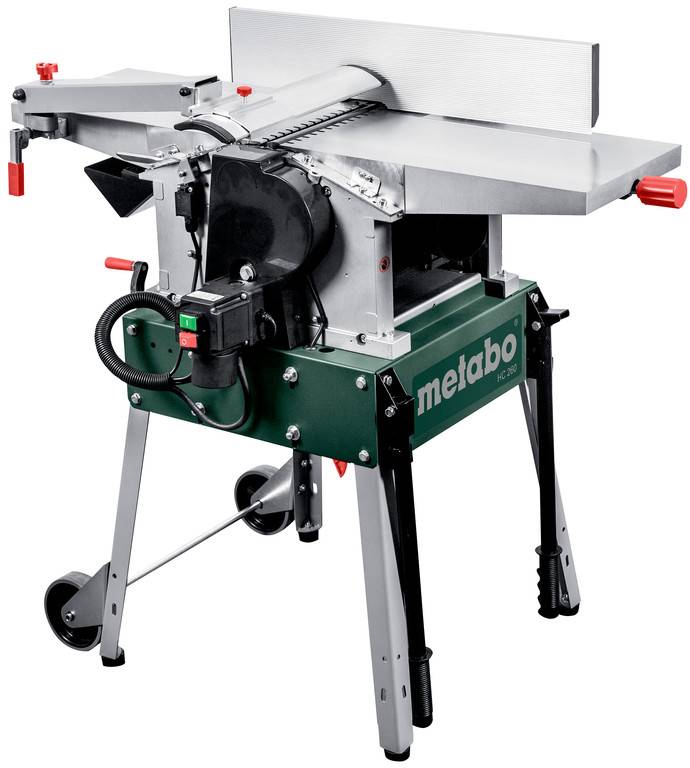

Metabo HC 260 C - 2,2 WNB Jointer planer combo 2200 W 26 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PLANER MACHINE HC 260 C 2.20 WNB
- Can be modified without any tools
- Uniform feed
- Thick table made from abrasion-resistant gray cast iron
- Adjust by crank handle
- Joint stopper can be swiveled
- Quiet induction motor
- This text is machine translated.
Technical specifications
- Output capacity: 1600 W
- Dressing plates L x W: 1040 x 260 mm
- Number of knives: 2
- Thickness table L x W 400 x 260 mm
- Knife shaft speed: 6500 rpm
- Forward height/width 160 / 260 mm
- Diameter of knife shaft 63 mm
- Material dressing plates: Aluminum cast
- Material thickness table: Gray cast iron
- Chip removal dressing: 0 - 3 mm
- Chip removal thickness planers: 0 - 3 mm
- Feed speed 5 m/min.
- Product type
Jointer planer combo
2200 W
- Plane width
26 cm
- Operating voltage
220 V
- Width
111 cm
- Height
96 cm
- Weight
71 kg
- Depth
62 cm
- Idle speed
6500 U/min
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2281887 Metabo HC 260 C - 2,2 WNB Jointer planer combo 2200 W 26 cm
User & Safety Instructions
User & Safety Instructions 2281887 Metabo HC 260 C - 2,2 WNB Jointer planer combo 2200 W 26 cm
Warranty Terms
Warranty Terms 2281887 Metabo HC 260 C - 2,2 WNB Jointer planer combo 2200 W 26 cm
Description
Features
- Easy, tool-free modification from trimming to thickness planers
- Stable gear for uniform workpiece feed
- Thick table made from solid, abrasion-resistant gray cast iron
- Convenient adjusting of the height through crank handle
- Plane blade with double cutting for longer service life
- Joint stops can be swiveled 90°-45°
- Low-noise induction motor, maintenance-free and robust
- Restart protection: Prevents accidental start up after power interruption
- Torque high-torque motor
Scope of delivery
- Built-in one-way reversible plane blade
- Pivoting attachments stop
- Chip ejection cover
- Vice
- Suction supports
- Transport wheels
