Metabo KGS 254 M Set Chopsaw 254 mm 30 mm 1800 W
EAN:
Part number:
Item no:

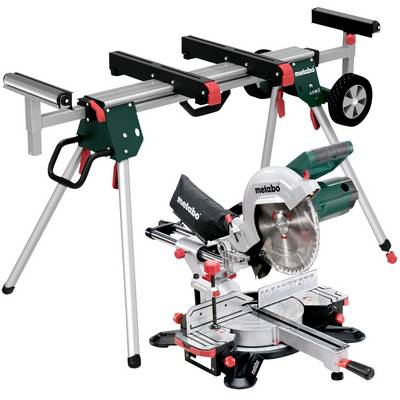

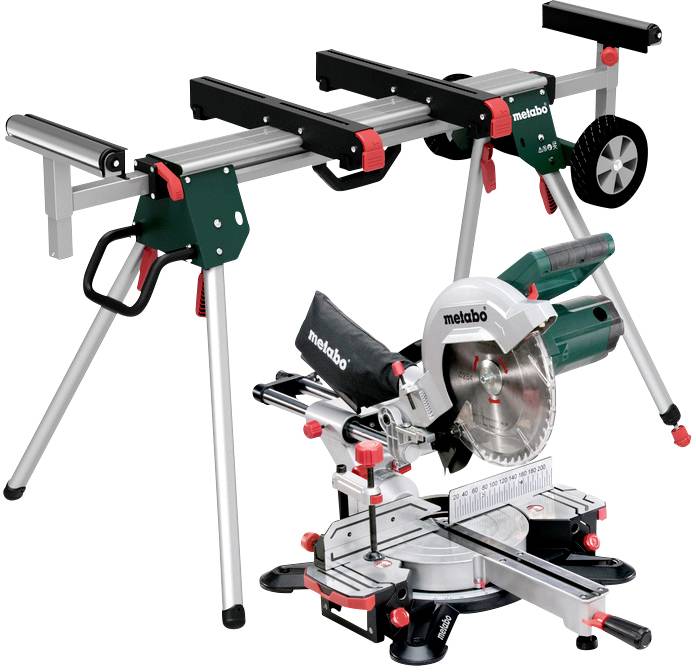

Metabo set KGS 254 M + KSU 251
Highlights & Details
- Pull function for wide workpieces
- Compact light weight, also suitable for one-handed transport
- Robust design made of die-cast aluminum for the toughest demands
- Easy to transport thanks to ergonomic carrying handles and saw head lock
- Effective chip-suction via the integrated chip-collection funnel
- Fast and precise adjustment of common angles via snap-in points
- Laser for exact display of the cutting line (mains-operated, no batteries necessary)
- Infinitely extendable table extensions, removable for laying down long panels, strips, etc.
- Bright LED work light for illuminating the interface (mains-operated, no batteries required)
- High, laterally displacable stops for safe sawing
- Material clamp for secure attachment of the workpiece from above or from the front
- Depth stop for easy production of grooves
- Saw head can be tilted to the left, with additional angle range for rear cuts
- All scales and control elements can be viewed and operated intuitively from the working position
- Simple change of saw blade by spindle lock; no dismantling of the anti-sway hood required
- This text is machine translated.
Technical specifications
- Contact surface 340 x 775 mm
- Turntable setting left/right: 47 / 47 °
- Speed at rated load: 3150 rpm
- Weight 16.3 kg.
- Max. Cutting width 90°/45° 305 / 205 mm
- Saw blade inclination left/right: 47 / 2 °
- Sound pressure level 99 dB(A)
- Sound power level (LwA) 106 dB(A)
- Cuting speed 60 m/s
- Cutting capacity 45°/45° 205 x 47 mm
- Cutting capacity 90°/90° 305 x 92 mm
- Product type
Chopsaw
- Saw blade diameter
254 mm
- Bore Ø
30 mm
1800 W
- Operating voltage
230 V
- Cutting depth (max.) (45°)
47 mm
- Cutting depth (max.) (90°)
92 mm
- Table dimensions
340 x 775 mm
- Dim
(L x W x H) 515 x 790 x 515 mm
- Length
515 mm
- Width
790 mm
- Height
515 mm
- Weight
16.3 kg
- Content
1 pc(s)
- Idle speed
4500 U/min
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282288 Metabo KGS 254 M Set Chopsaw 254 mm 30 mm 1800 W
Warranty Terms
Warranty Terms 2282288 Metabo KGS 254 M Set Chopsaw 254 mm 30 mm 1800 W
Description
Scope of delivery
- Carbide saw blade (48 teeth)
- 2 integrated table extensions
- Length stop
- Material clamp
- Tool for changing saw-blade
- Cable tidy
- Chip collection bag
- Machine stands KSU 251
