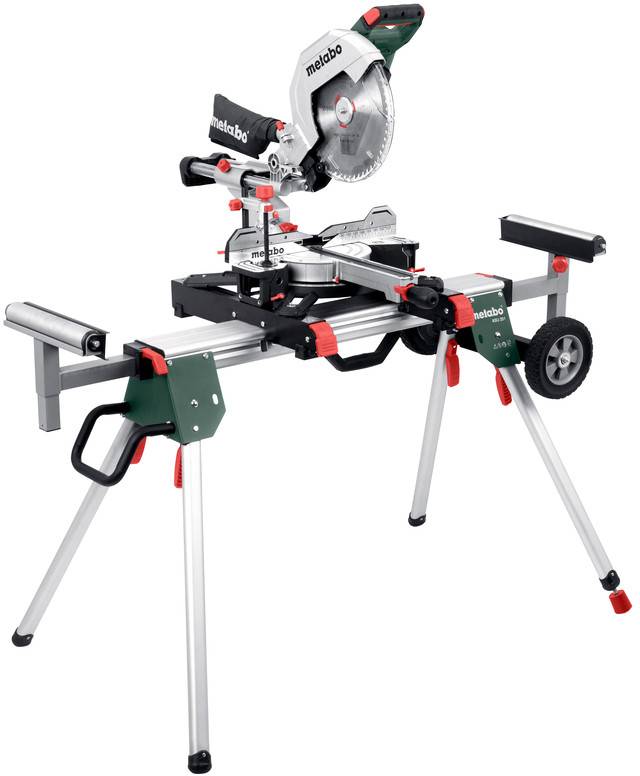

Portable Metabo miter saw on a stand with extendable support arms and folding legs.

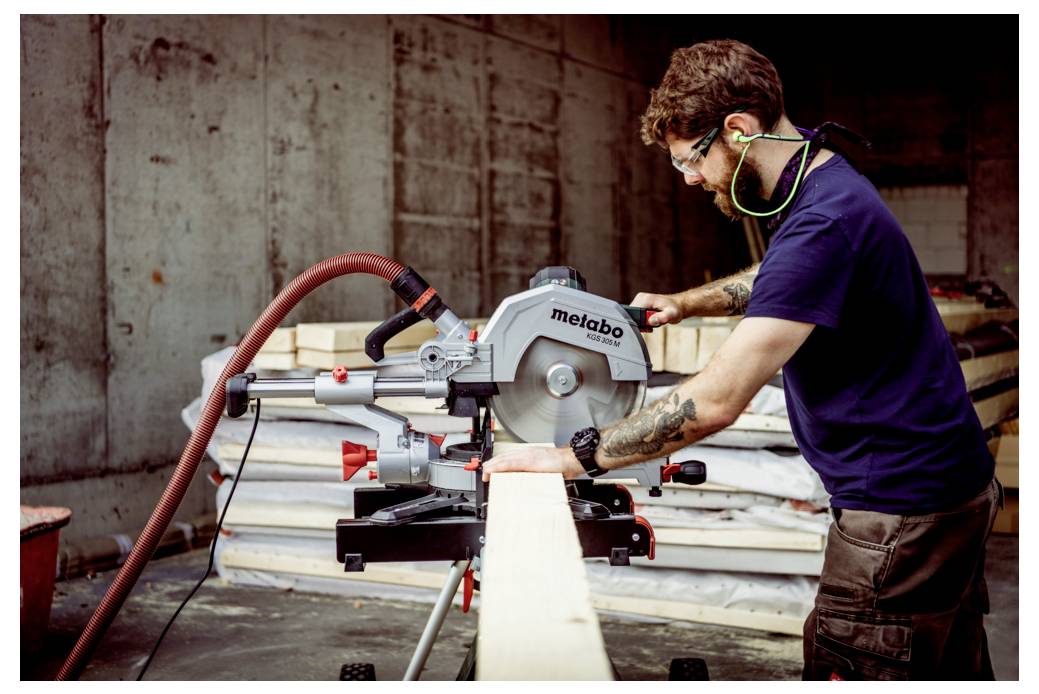

A person using a power saw to cut a wooden plank in a workshop, wearing protective eyewear and ear protection.

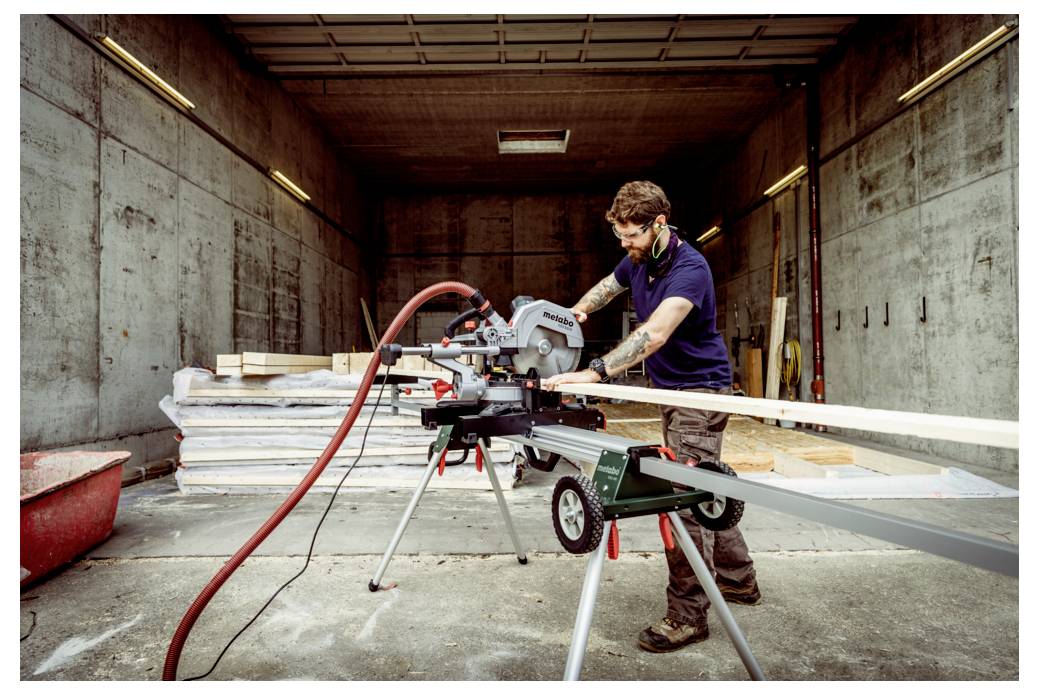

A person wearing hearing protection operates a sliding compound miter saw in a workshop, cutting a wooden plank.

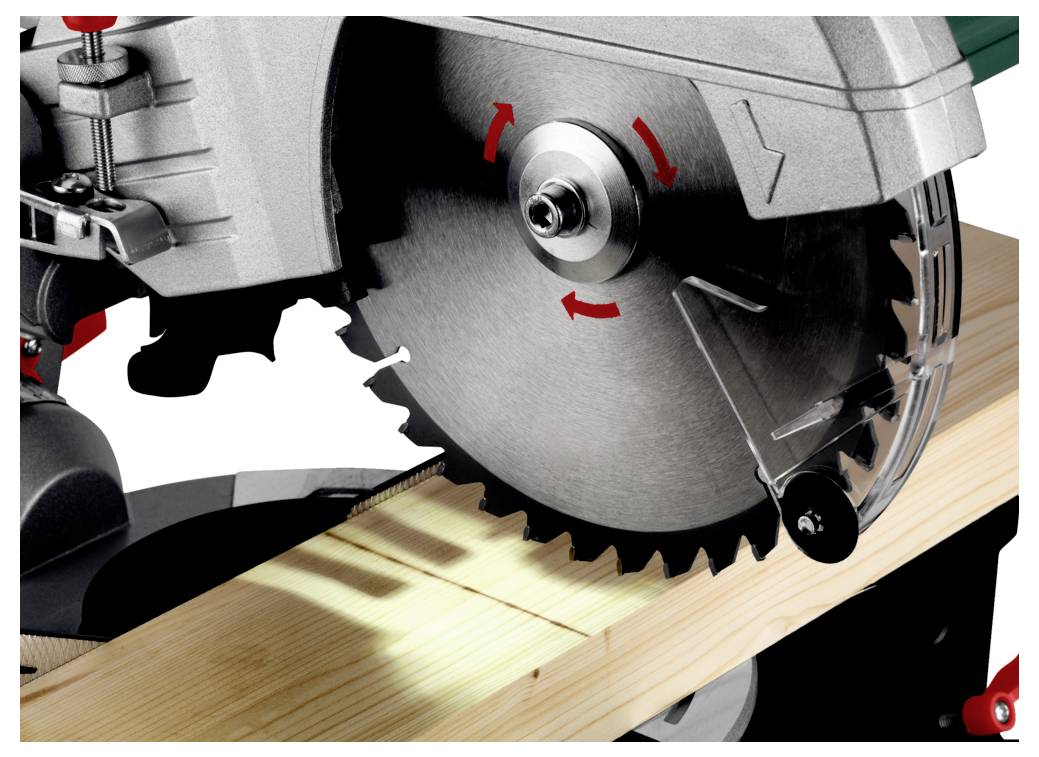

A circular saw blade cutting through a wooden board, illustrating the operation of a power tool with directional arrows showing rotation.

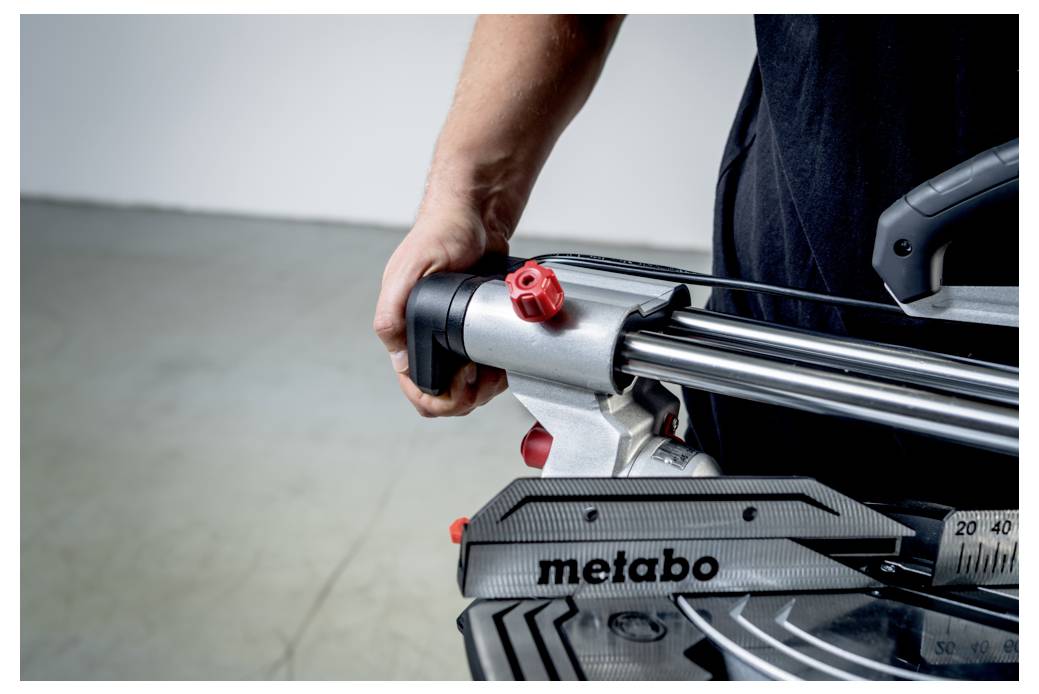

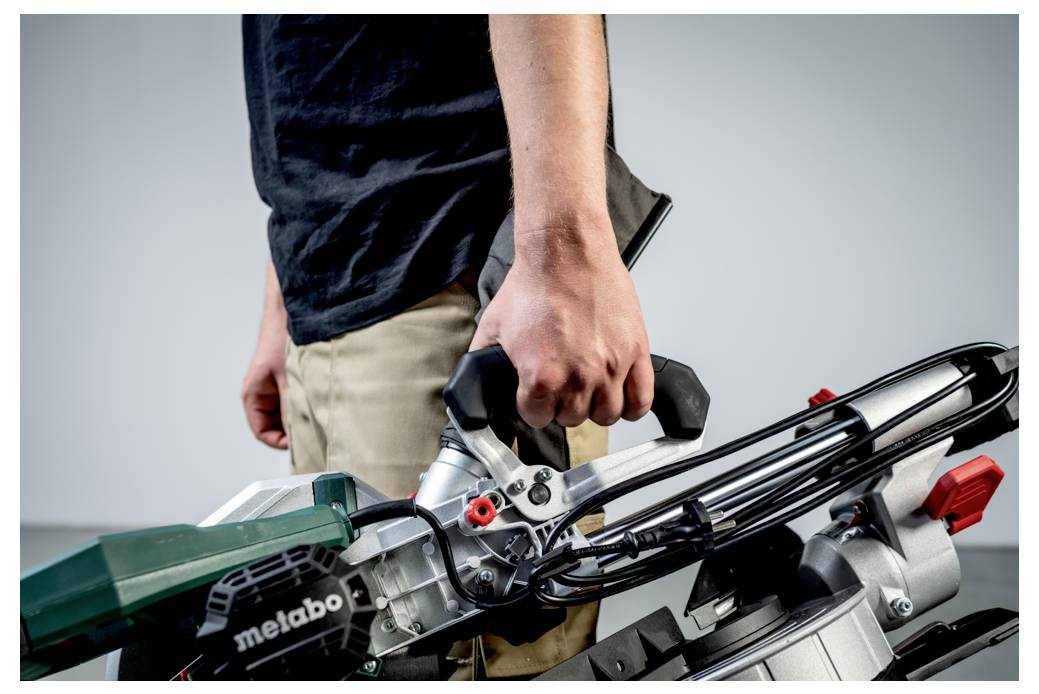

A person wearing a black shirt holds the handle of a green and silver Metabo power tool, suggesting readiness for a task.

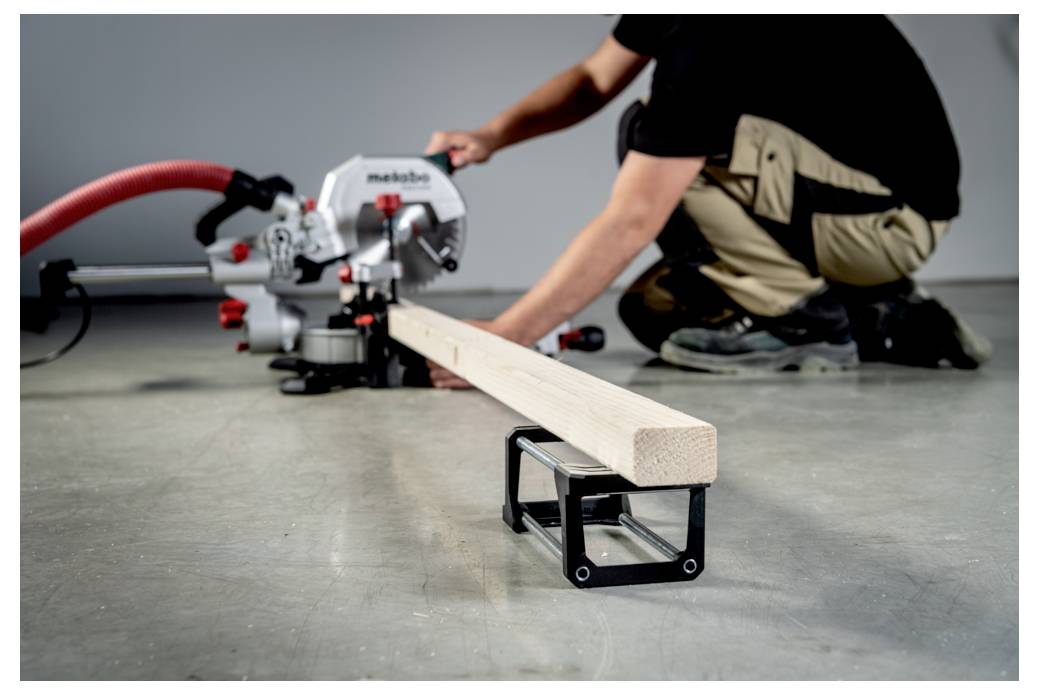

A person using a table saw to cut a wooden beam in a workshop. The focus is on the precise alignment of the wood with the saw blade.

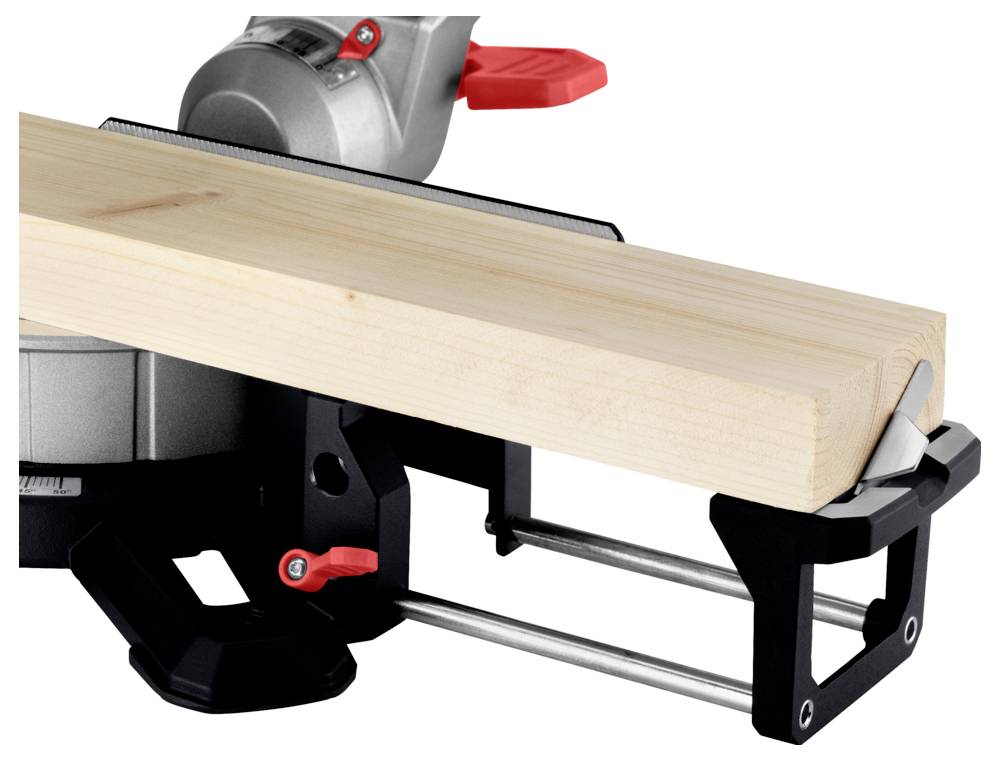

A beige wooden plank is clamped in a metal adjustable vise, with red and black handles, indicating a woodworking process.

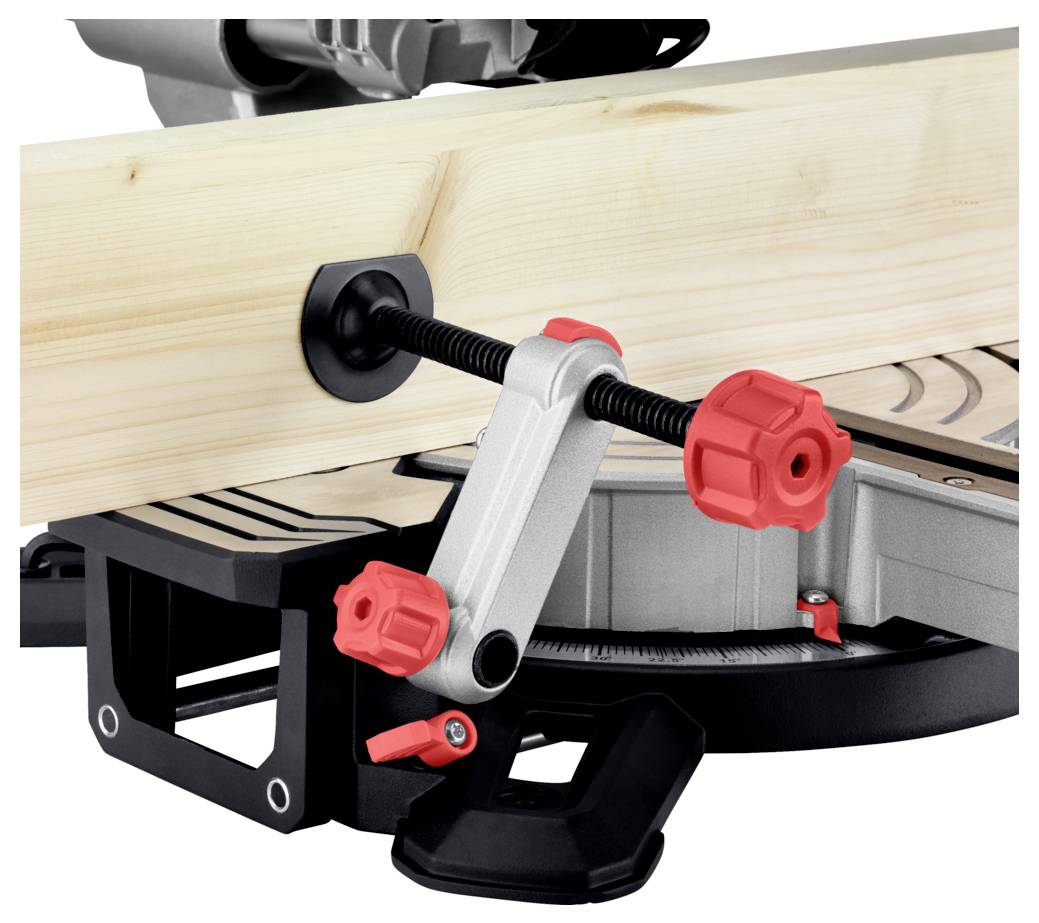

A piece of wood secured in a miter saw with a red clamp, indicating a setup for cutting.

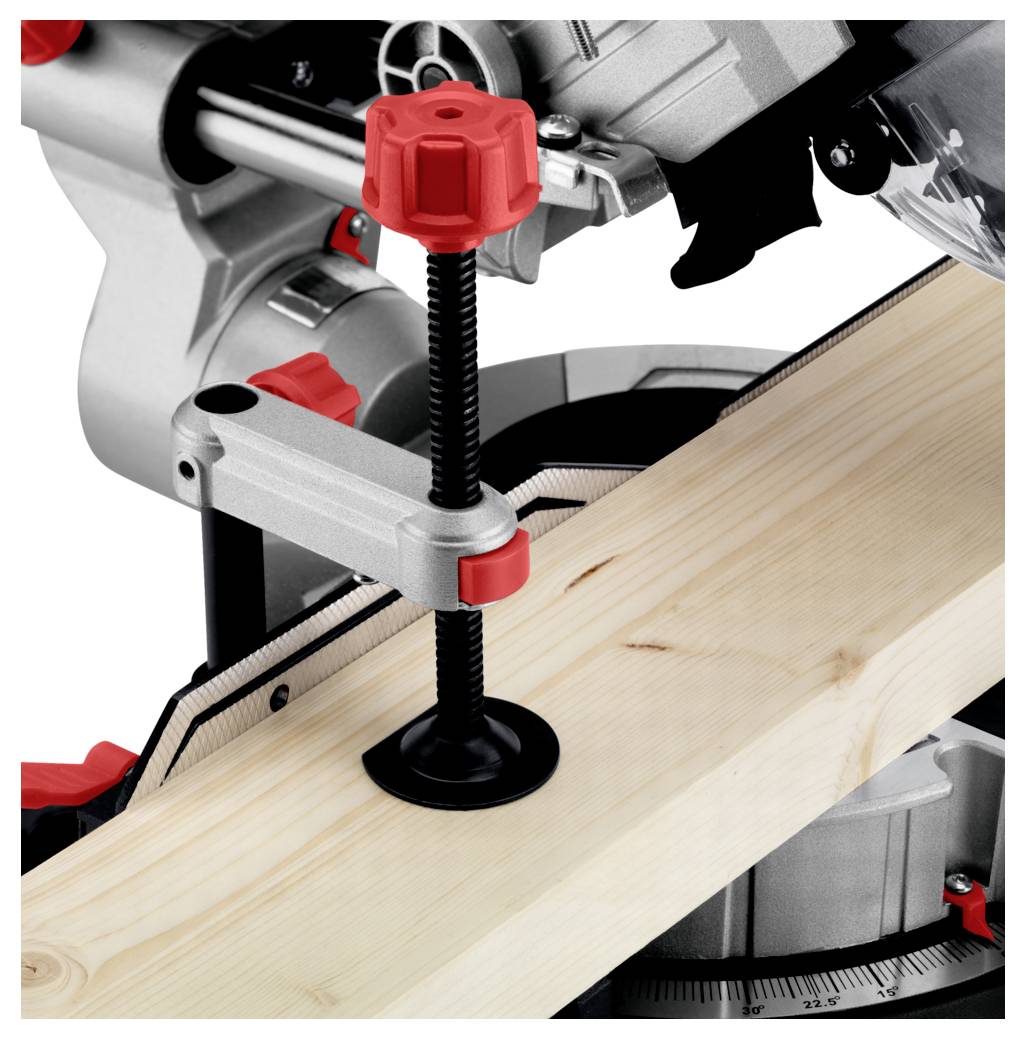

A miter saw cutting a piece of wood, secured with a clamp.

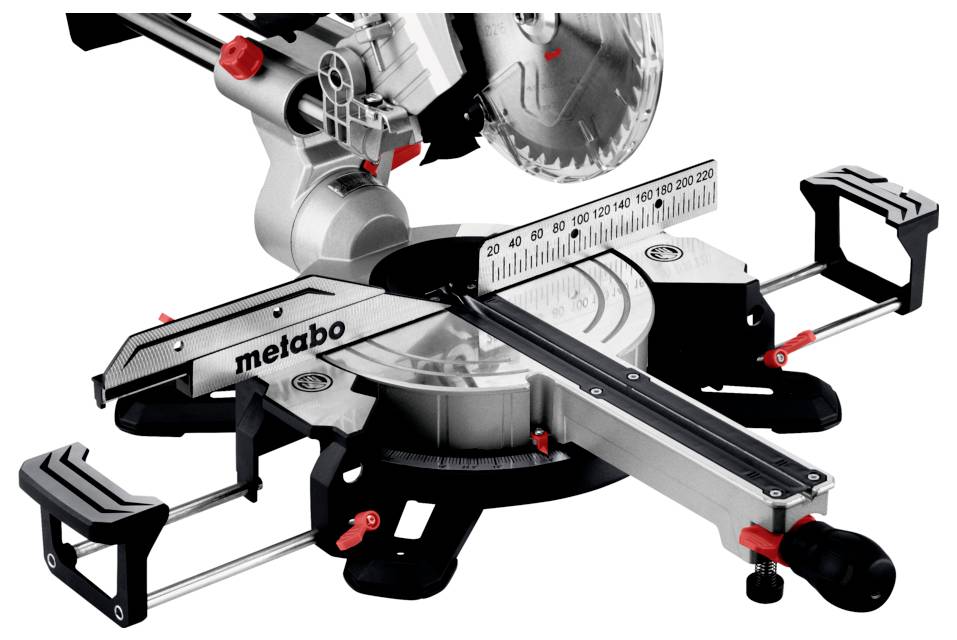

A miter saw with a blade guard, scale, and sturdy base. Used for precise angle cuts in woodworking and construction tasks.

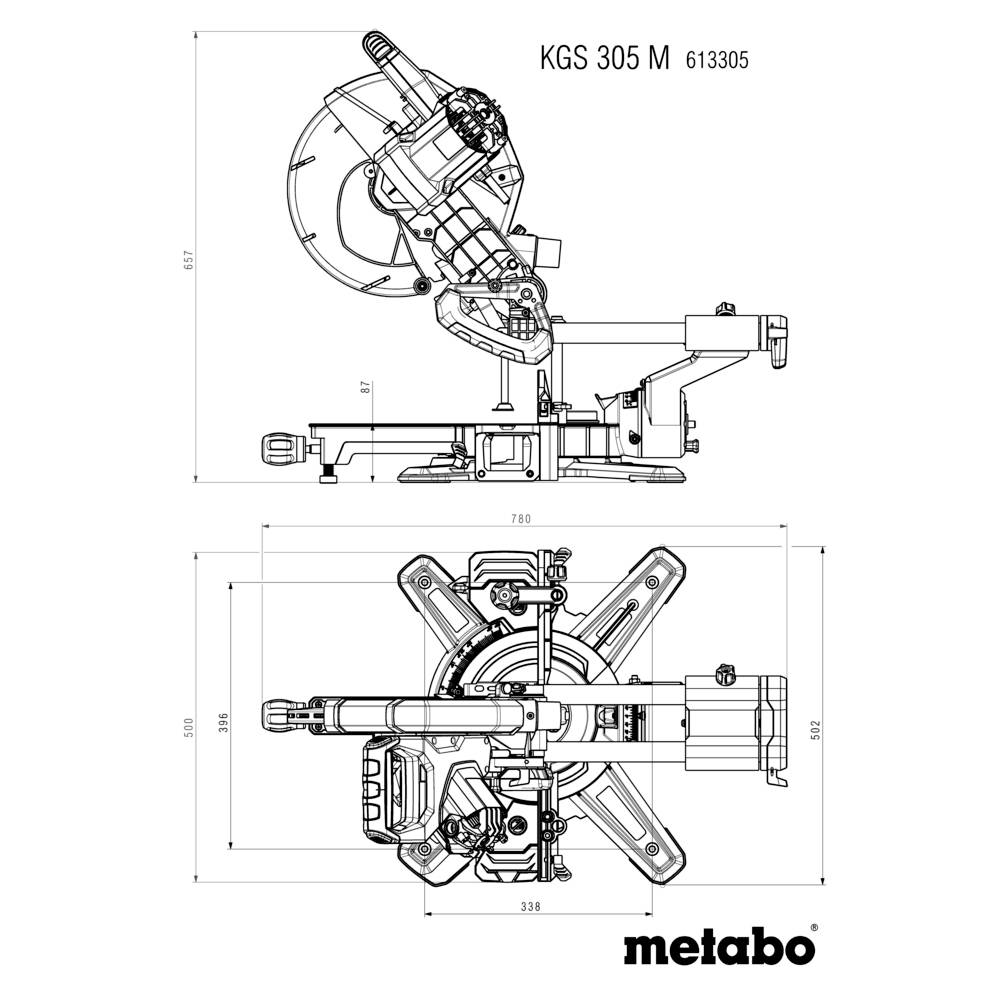

'Metabo KGS 305 M 613305' technical drawing shows a side and top view of a miter saw with dimensions.

1/12

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

KGS 305 M Chopsaw & machine stand KSU 251

1600 W, 2000 W
Cutting depth (max.) (45°/ 90° ): /

Technical specifications

Rated input power 1600 W
Rated power S1 100% 1600 W
Rated power S6 20% 2000 W
Max. Cutting width 90°/-45°305/ 215 mm
Max. Cutting depth 90°/ 45°110/ 67 mm
Cutting capacity 90°/90°305 x 110 mm
Cutting capacity 45°/45°215 x 67 mm
Turntable setting left/right: 50 / 60 °
Saw-blade inclination left/right: 47 / 47 °
Speed at rated load 3000 rpm
Cuting speed 59 m/s
Cable length: 2 m
Noise emission:
Sound pressure level 87 dB(A)
Sound power level (LwA)100 dB(A)
Measurement uncertainty K: 3 dB(A)

Product type: Chopsaw

Saw blade diameter: 305 mm

Bore Ø: 30 mm

: 1600 W
2000 W

Operating voltage: 230 V

Table dimensions: 345 x 770 mm

Dim: (L x W x H) 780 x 500 x 657 mm

Length: 780 mm

Width: 500 mm

Height: 657 mm

Weight: 18.6 kg

Content: 1 pc(s)

Idle speed: 3700 /min

Factory colour: Multicolour

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3553569 Metabo KGS 305 M Chopsaw 305 mm 30 mm 1600 W, 2000 W

Description

Largest M-Class chop saw and miter saw - light, precise, user friendly
Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED
Enormous cutting performance by extremely powerful universal motor and large saw blade
Turntable with fast, precise setting of common angles via locking points
Saw-blade inclination on both sides up to 47° for maximum flexibility
Robust design made of die-cast aluminum for the toughest requirements
Effective chip-suction via the integrated chip-collection funnel
Soft start for long life of motor and gear
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
Depth stop for easy creation of grooves
All scales and control elements can be viewed and used intuitively from the working position
Ergonomic grip for one or both-handed carrying
