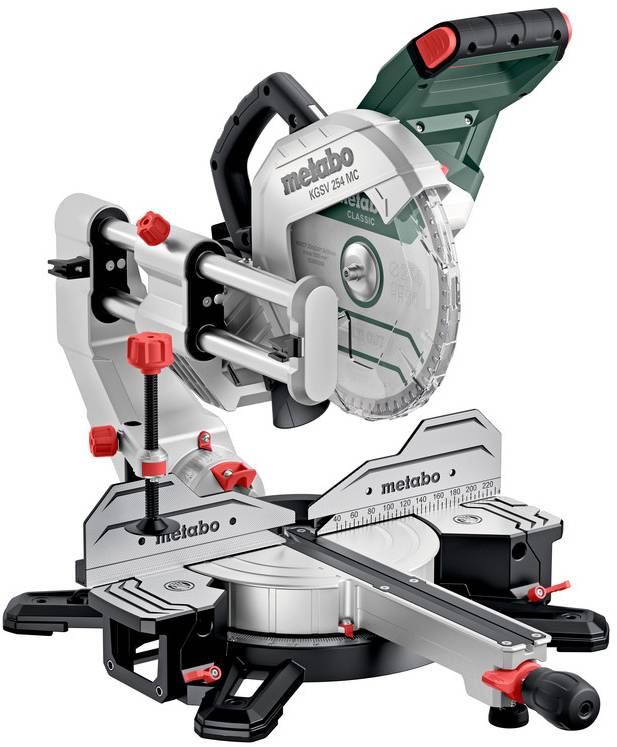

Metabo compound miter saw with sliding arm, blade guard, angle fence, and base for precision cutting.

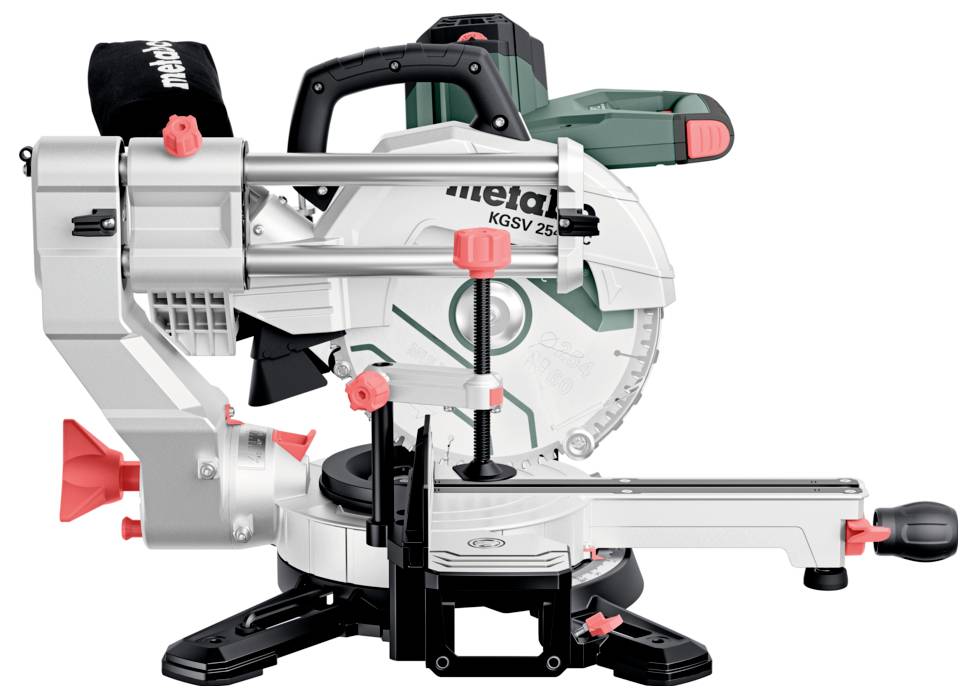

A compound miter saw with a circular blade and adjustable angles, designed for precise wood cutting, shown in a side view.

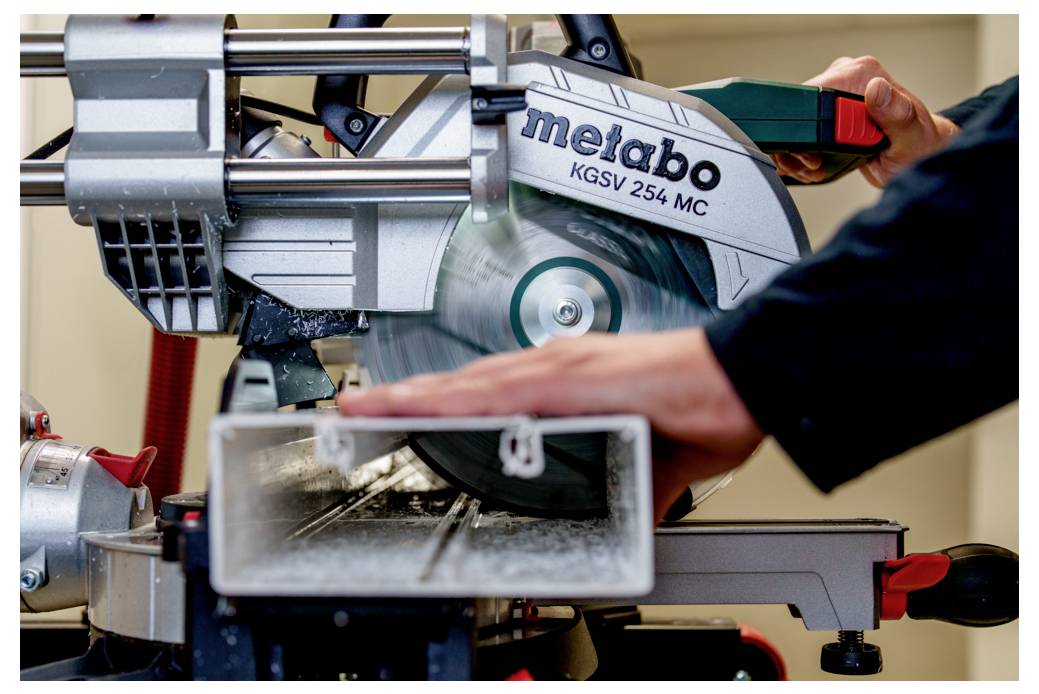

A person uses a circular saw to cut through a metal pipe, focusing on precision. The saw is labeled 'metabo KGS 254 MC'.

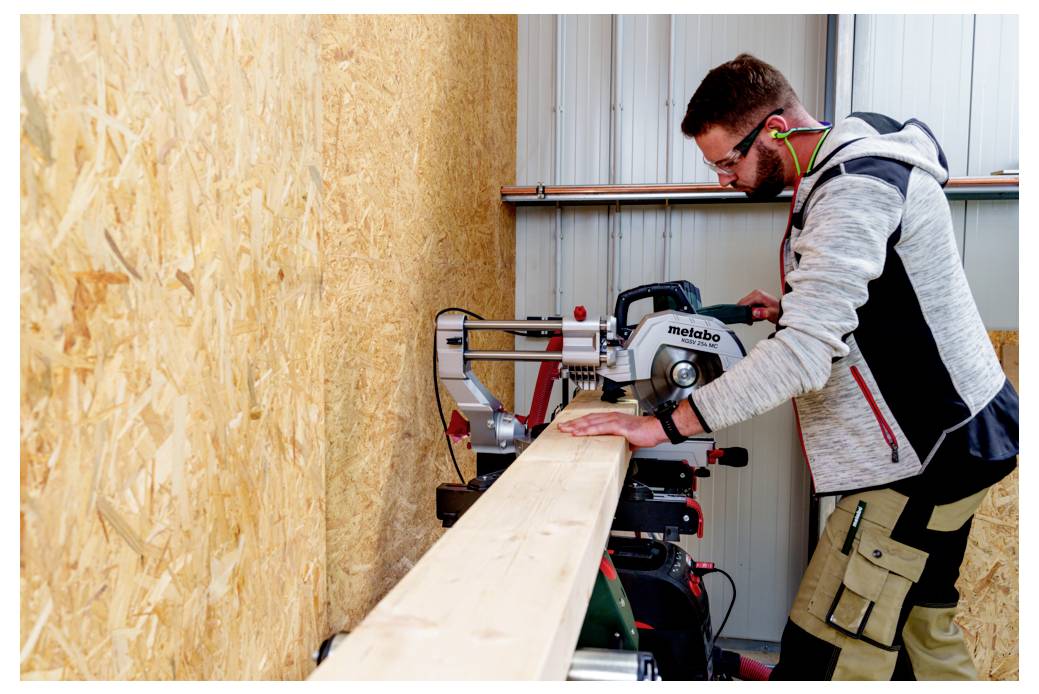

A person operates a miter saw cutting a wooden plank inside a workshop. Wearing safety glasses and ear protection, they focus on precision.

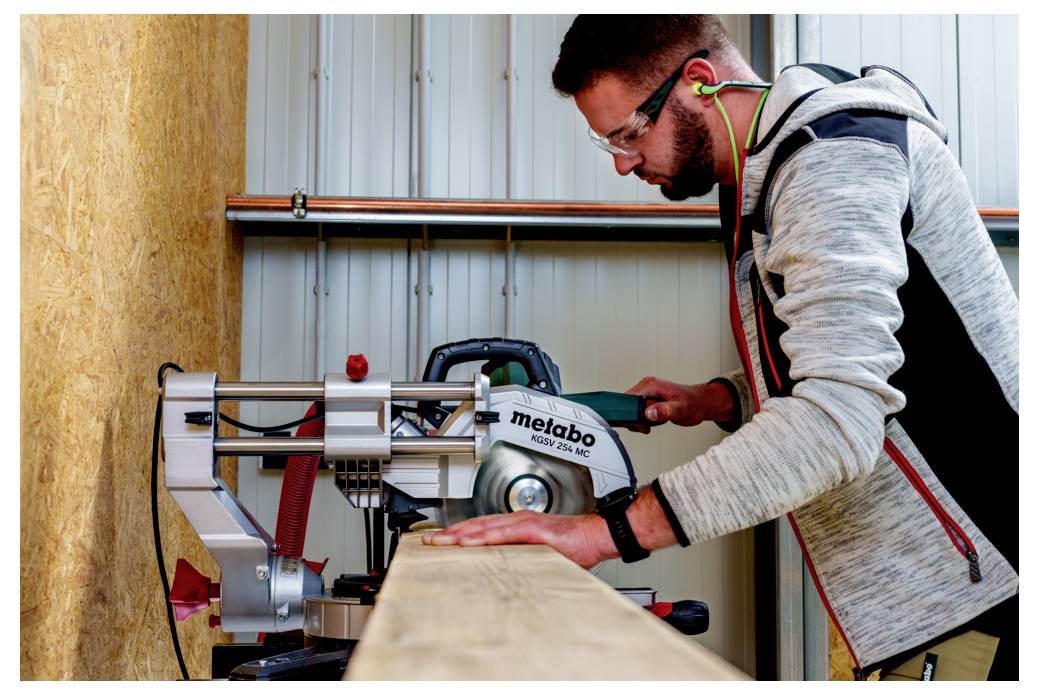

A person is using a circular saw to cut a wooden plank in a workshop. They are wearing safety goggles and ear protection.

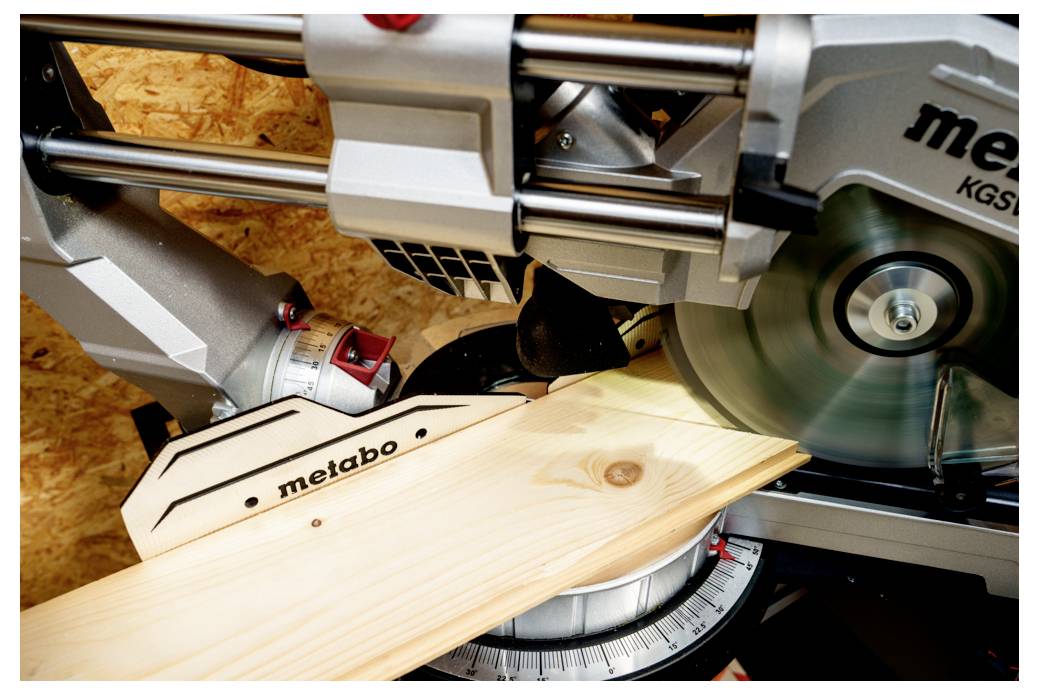

'Metabo' miter saw cutting a wooden board at an angle. Close-up view, highlighting blade and wood contact.

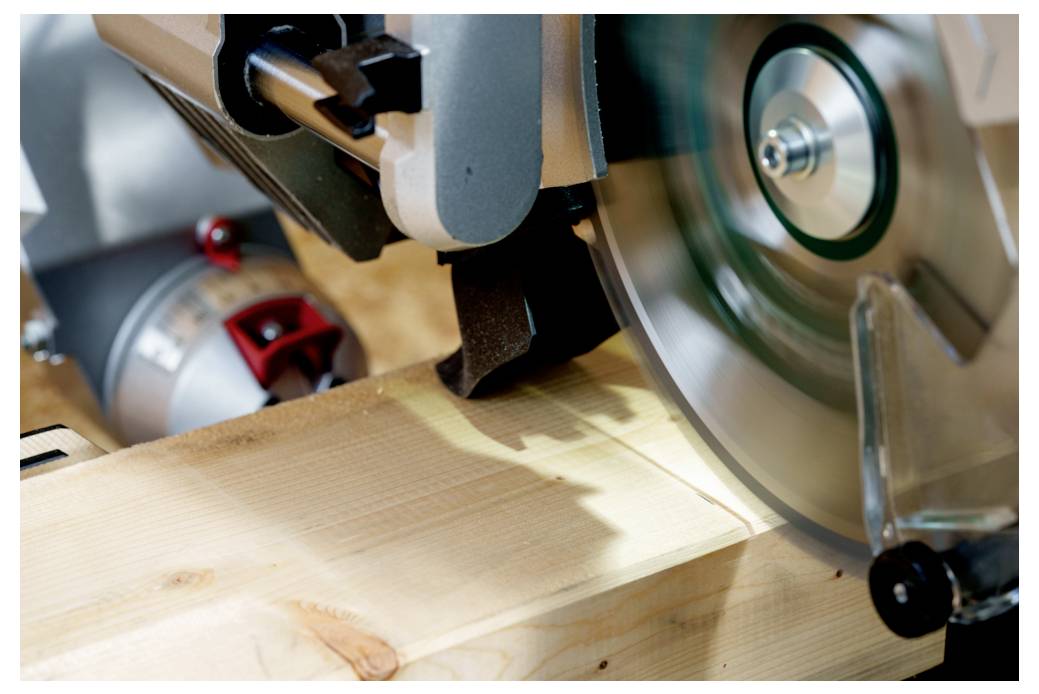

A circular saw cutting through a wooden plank, with visible motion blur on the blade, indicating high speed.

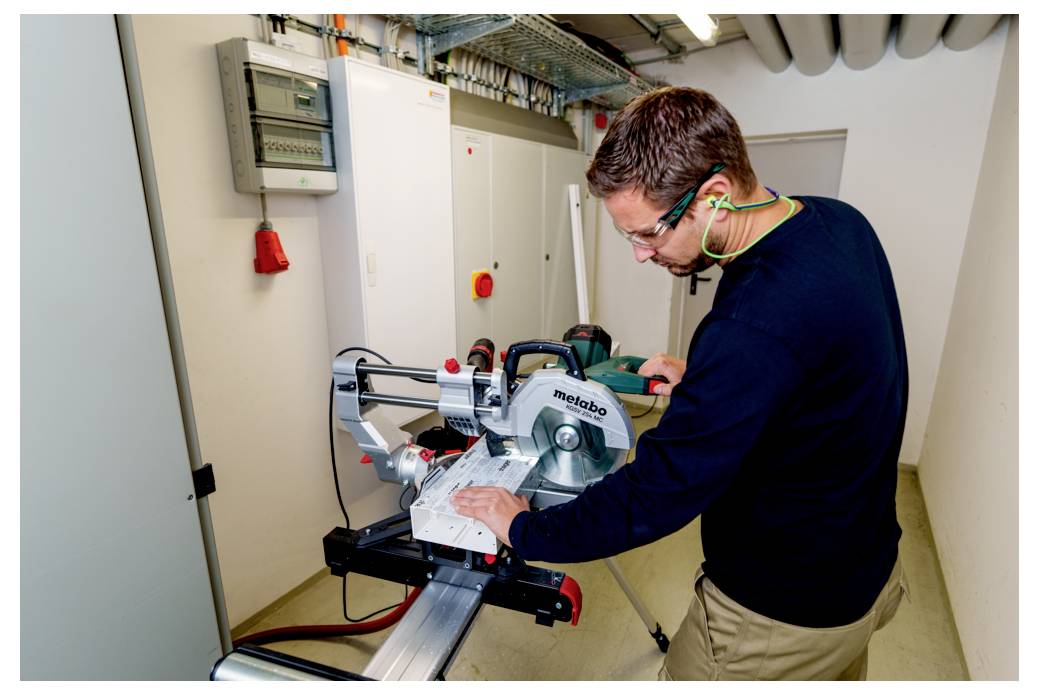

A person uses a circular saw in a workshop with control panels visible on the walls. Safety gear, including glasses and ear protection, is worn.

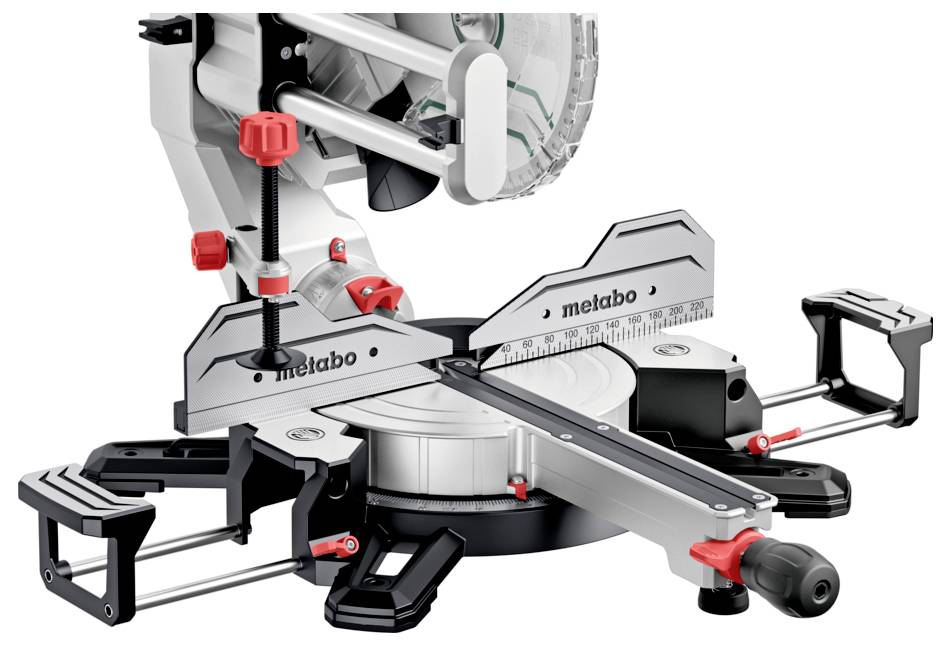

A compound miter saw with adjustable settings, featuring a rotating base, measurement markings, and branding from 'metabo' on multiple parts.

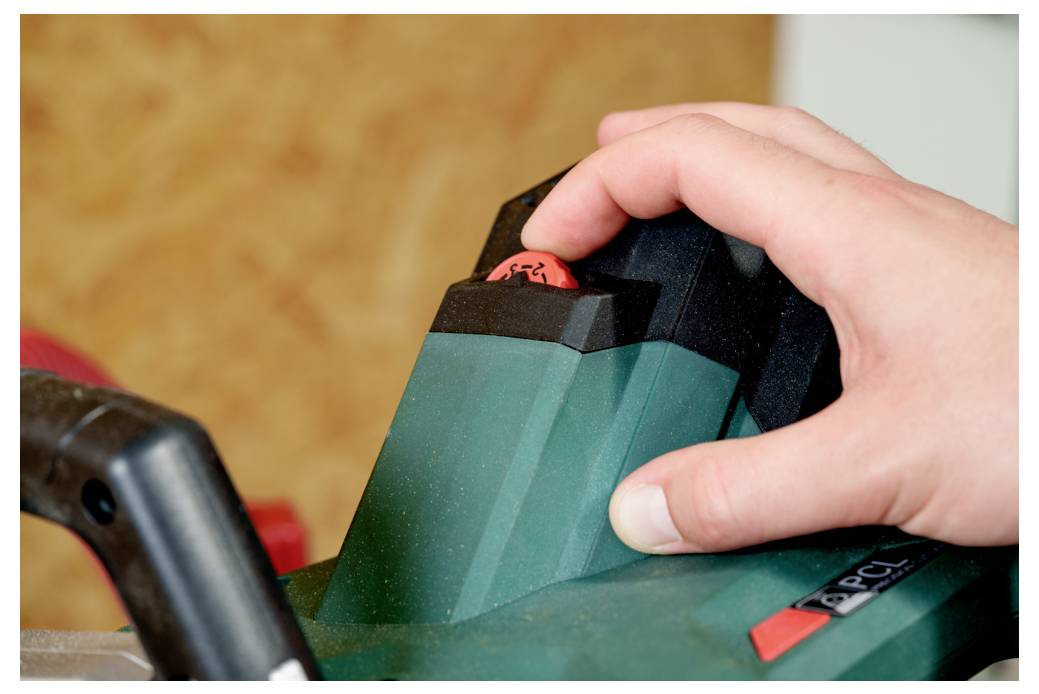

A hand presses the red safety switch on a green power tool, suggesting activation or operation in a workshop environment.

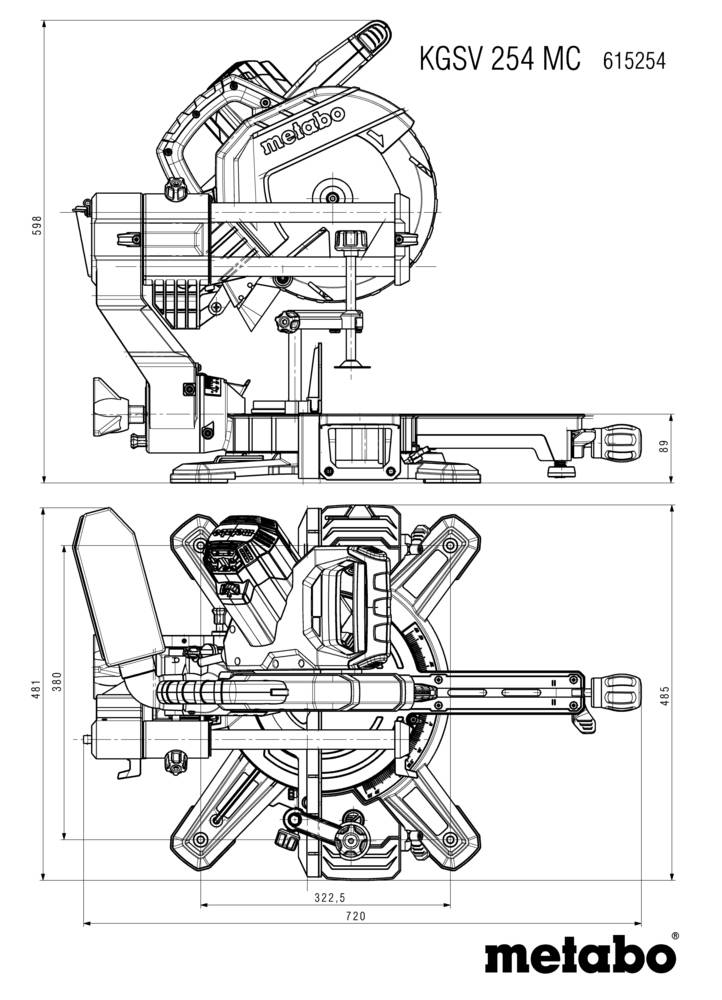

Technical drawing of a Metabo KGSV 254 MC saw, showcasing front and side views with measurements for precision engineering reference.

1/12

Datasheet (PDF)

Unavailable

373 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

KGSV 254 MC Chop saw

Precision Cut Line
Exact shadow cutting line without readjustment by clever placed LED
Electronic soft start-up
For jerk-free start-up
Flexible working thanks to continuous speed controlOptimum dust protection
For clean and pleasant work: Chips and dust are extracted immediately and effectively
Fast brake
Discharge brake for greater safety through rapid stopping of the application tool.

Technical specifications

Speed at rated load 3400 rpm
Cutting speed 25 - 60 m/s
Turntable setting left/right: 50 / 50 °
Saw-blade inclination left/right: 47 / 47 °
Max. Cutting width 90°/45° 305/215 mm
Max. Cutting depth 90°/45° 92 / 48 mm
Cutting capacity 90°/90° 305 x 92 mm
Cutting capacity 45°/45° 215 x 48 mm
Sound pressure level 90 dB(A)
Sound power level (LwA): 103 dB(A)
Measurement uncertainty K: 3 dB(A)
Cable length: 2 m

Product type: Chopsaw

Saw blade diameter: 254 mm

Bore Ø: 30 mm

: 1450 W
1800 W

Table dimensions: 345 x 760 mm

Dim: (L x W x H) 725 x 595 x 490 mm

Length: 725 mm

Width: 595 mm

Height: 490 mm

Number of cogs: 60

Weight: 18.4 kg

Content: 1 pc(s)

No. of power packs included: 0

Idle speed: 1900 /min
4500 /min

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3475892 Metabo KGSV 254 MC Chopsaw 254 mm 30 mm 1450 W, 1800 W

User & Safety Instructions

User & Safety Instructions 3475892 Metabo KGSV 254 MC Chopsaw 254 mm 30 mm 1450 W, 1800 W

Warranty Terms

Warranty Terms 3475892 Metabo KGSV 254 MC Chopsaw 254 mm 30 mm 1450 W, 1800 W

Description

Versatile chopsaw with maximum equipment: Variable speed, compact pulling function, two-sided saw head inclination and much more
Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED
Compactly designed pulling function without space required behind the saw

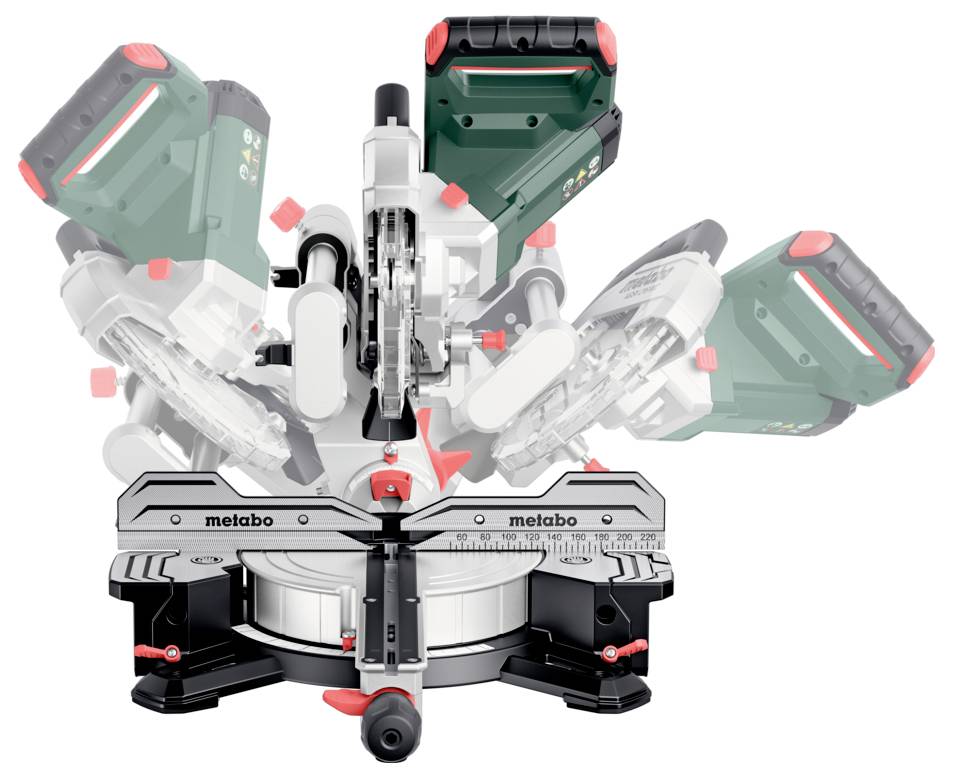

Maximum flexibility with sawing by rotating the table on both sides and pivoting saw head
Variable speed for extended usage range, e.g. for sawing aluminum profiles and plastics
Effective chip-suction via the integrated chip-collection funnel
Soft start for long life of motor and gear
Fast and precise adjustment of common angles via locking points
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
Depth stop for easy creation of grooves
