Metabo KGSV 72 Xact SYM Set Chopsaw 216 mm 1800 W
EAN:
Part number:
Item no:

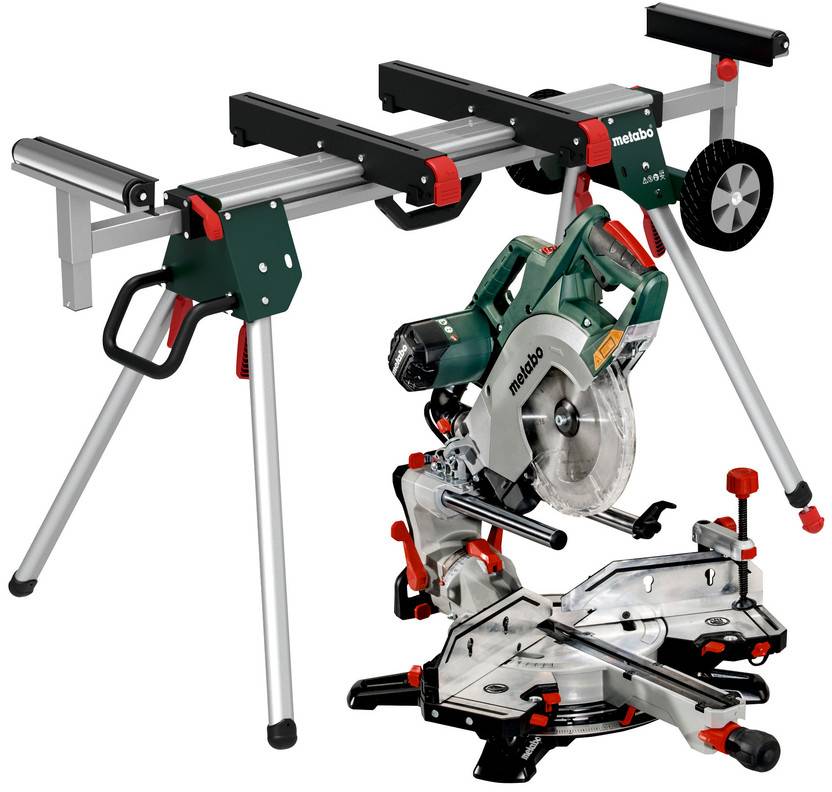

Metabo set KGSV 72 Xact SYM + KSU 251
Highlights & Details
- Unique, patented combination of panel saw with pull function and precise bar saw with symmetrically adjustable stop system
- Time-saving and precise sawing of miter cuts without calculation and measurement by simple angular transfer from forging to impact system
- Compact pull function for wide workpieces up to 305 mm: No space requirement behind the saw
- Maximum flexibility for sawing with a table that can be rotated on both sides and a saw head that can be tilted on both sides
- Double line laser for exact display of the cutting line on the left and right of the saw blade
- Speed control for extended application range, e.g. for sawing aluminum profiles and plastics
- With saw blade "multi cut« (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminum profiles
- Compact lightweight with ergonomic carrying handles, ideal for mobile use
- Effective chip-suction via the integrated chip-collection funnel
- Fast and precise adjustment of common angles via snap-in points
- Bright LED work light for illuminating the interface (mains-operated, no batteries required)
- High, laterally displacable stops for safe sawing
- Depth stop for easy production of grooves
- Simple change of saw blade by spindle lock; no dismantling of the anti-sway hood required
- This text is machine translated.
Technical specifications
- Turntable setting left/right: 50 / 50 °
- Weight: 47.71 kg
- Max. Cutting width 90°/45°: 305 / 215 mm
- Saw blade inclination left/right: 47 / 47 °
- Sound pressure level 84 dB(A)
- Sound power level (LwA) 97 dB(A)
- Cutting speed 25 - 70 m/s
- Cutting capacity 45°/45° 215 x 42 mm
- Cutting capacity 90°/90° 305 x 72 mm
- Product type
Chopsaw
- Saw blade diameter
216 mm
1800 W
- Operating voltage
230 V
- Cutting depth (max.) (45°)
42 mm
- Cutting depth (max.) (90°)
72 mm
- Dim
(L x W x H) 415 x 660 x 540 mm
- Length
415 mm
- Width
660 mm
- Height
540 mm
- Weight
47.71 kg
- Content
1 pc(s)
- Idle speed
2200 - 6300 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282292 Metabo KGSV 72 Xact SYM Set Chopsaw 216 mm 1800 W
Warranty Terms
Warranty Terms 2282292 Metabo KGSV 72 Xact SYM Set Chopsaw 216 mm 1800 W
Description
Scope of delivery
- Carbide saw blade (60 teeth)
- 2 integrated table extensions
- Sliding bevel
- Material clamp
- Tool for changing saw-blade
- Cable tidy
- Machine stands KSU 251
