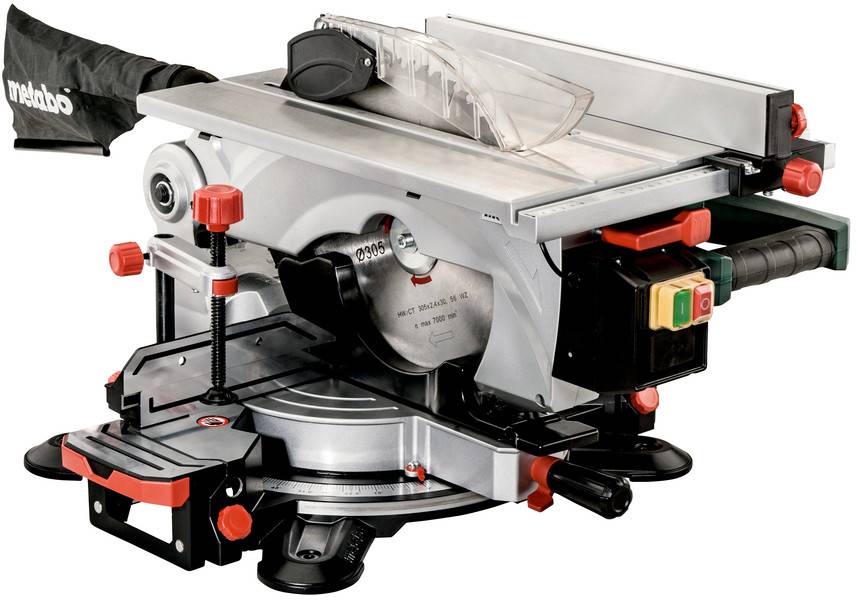

Metabo KGT 305 M Chopsaw 305 mm 1600 W
EAN:
Part number:
Item no:
Metabo KGT 305 M snipping saw with table
Highlights & Details
- Chop and miter saw with additional table saw function for longitudinal cuts
- Quick conversion from chop to table operation
- Compact light-weight, ideal for mobile use
- Easy transport by saw head safety device
- Robust design made of die-cast aluminum for the toughest demands
- Fast and precise adjustment of common angles via snap-in points
- Laser for exact display of the cutting line (mains-operated, no batteries necessary)
- Infinitely extendable table extensions, removable for laying down long panels, strips, etc.
- Bright LED work light for illuminating the interface (mains-operated, no batteries required)
- High, laterally displacable stops for safe sawing
- Material clamp for secure attachment of the workpiece from above or from the front
- Restart protection: Prevents unintentional start-up after power interruption
- Saw head can be tilted to the left, with additional angle range for rear cuts
- All scales and control elements can be viewed and operated intuitively from the working position
- Simple change of saw blade by spindle lock; no dismantling of the anti-sway hood required
- This text is machine translated.
Technical specifications
- Turntable setting left/right: 52 / 52 °
- Speed at rated load 2750 rpm
- Cable length 2.8 m
- Max. Cutting speed 60 m/s
- Measurement uncertainty K: 3 dB(A)
- Saw blade inclination left/right: 47 / 2 °
- Sound pressure level 95 dB(A)
- Sound power level (LwA): 98 dB(A)
- Cutting width - snipping operation 90/45°: 150 / 100 mm
- Cutting height - table operation: 0 - 50 mm
- Cutting capacity 45°/45° 115 x 45 mm
- Cutting capacity 90°/90°: 150 x 102 mm
- Table size 462 x 261 mm
- Product type
Chopsaw
- Saw blade diameter
305 mm
1600 W
- Cutting depth (max.) (45°)
70 mm
- Cutting depth (max.) (90°)
102 mm
- Length
460 mm
- Width
658 mm
- Height
600 mm
- Dim
(L x W x H) 460 x 658 x 600 mm
- Weight
22 kg
- Idle speed
3700 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282299 Metabo KGT 305 M Chopsaw 305 mm 1600 W
Warranty Terms
Warranty Terms 2282299 Metabo KGT 305 M Chopsaw 305 mm 1600 W
Description
Scope of delivery
- Carbide saw blade (56 teeth)
- 2 integrated table extensions
- Parallel guide
- Length stop
- Material clamp
- Chip collection bag
- Tool for changing saw-blade
- Push-lock
