Metabo MAG 32 -Core drill 1000 W
EAN:
Part number:
Item no:
Highlights & Details

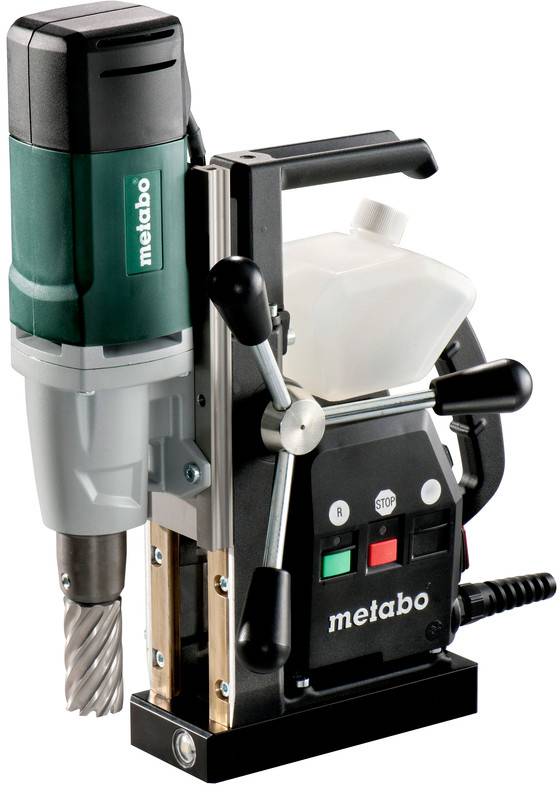

Metabo LIKES 32 magnetic core drill
- Large stroke, thus suitable for the use of core drills, spiral drills and sinkers

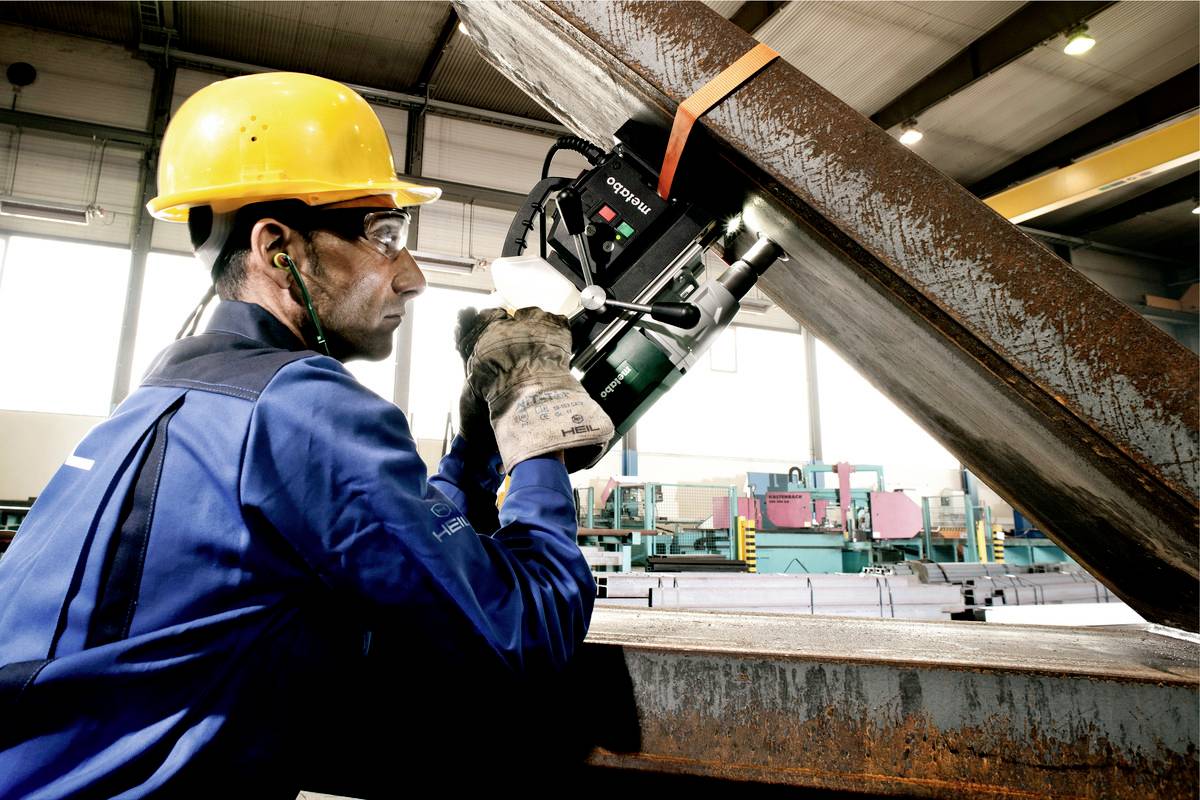

- Magnetic base with high holding force allows working on vertical surfaces and overhead
- Robust Metabo Marathon engine with internal wiring for long life
- Integrated coolant tank for easy-to-measure internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Tool-free chip protection protects the user from metal chips and tool contacts
- Protective circuit only starts the motor when the magnet is activated
- Restart protection: Prevents unintentional start-up after power interruption
- Lockable slide for easy tool change
- Carry handle for comfortable carrying and lifting
- Robust power cable (5 m) with rubber coating
- This text is machine translated.
Technical specifications
- Dimensions of the magnetic base: 90 x 189 mm
- Drilling metal: 2.5 m/s²
- Torque: 50 Nm
- Height of carriage top position: 490 mm
- Height of carriage bottom position: 343 mm
- Idle speed 700 rpm
- Max. Drill-Ø with core drill: 32 mm
- Max. 13 mm drill Ø with twist drill
- Max. Drilling depth 50 mm
- Max. Stroke 160 mm
- Max. Magnetic holding force 12250 N.
- Sound pressure level 85 dB(A)
- Sound power level (LwA): 98 dB(A)
- Tool holder: Weldon shank 19 mm (3/4"")
- Product type
Core drill
1000 W
- Output rating
520 W
- Load speed
450 U/min
- Tool holder
Weldon shank
- Cable length
5.00 m
- Weight
11.9 kg
- Max. torque
50 Nm
- Idle speed
700 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2281692 Metabo MAG 32 -Core drill 1000 W
Warranty Terms
Warranty Terms 2281692 Metabo MAG 32 -Core drill 1000 W
Description
Scope of delivery
- Ejector pin 75 mm
- Safety strap
- Allen key SW 4
- Chip protection
- Carrying case
