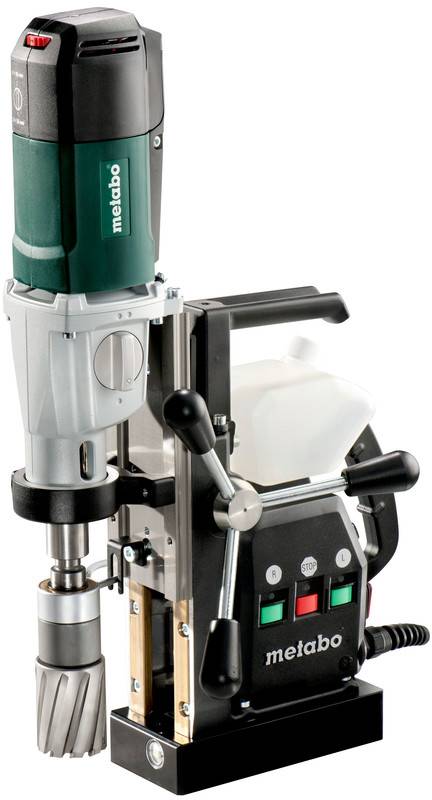

Metabo MAG 50 -Core drill 1200 W
EAN:
Part number:
Item no:
Highlights & Details
Metabo LIKES 50 magnetic core drill
- Large stroke, thus suitable for the use of core drills, spiral drills and sinkers
- Magnetic base with high holding force allows working on vertical surfaces and overhead
- Robust Metabo Marathon engine with internal wiring for long life
- Vario-Tacho-Constamatic (VTC) solid shaft electronics for working at speeds appropriate for the material that remain constant under load
- Clockwise/anti-clockwise rotation for thread cutting
- Durable two-speed transmission with oil-bath lubrication for optimum speeds
- Integrated coolant tank for easy-to-measure internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Tool-free chip protection protects the user from metal chips and tool contacts
- Protective circuit only starts the motor when the magnet is activated
- Overload protection: Protects the motor from overheating
- Restart protection: Prevents unintentional start-up after power interruption
- Lockable slide for easy tool change
- Carry handle for comfortable carrying and lifting
- Robust power cable (5 m) with rubber coating
- This text is machine translated.
Technical specifications
- Dimensions of the magnetic base: 90 x 190 mm
- Drilling metal: 2.5 m/s²
- Torque: 90 / 50 Nm
- Thread cutting: M 16
- Height of carriage top position 610 mm
- Height of carriage bottom position: 457 mm
- Idle speed 100 - 250 rpm/ 200 - 450 rpm
- Max. Drill-Ø with core drill 50 mm
- Max. Drill Ø with twist drill bit 20 mm
- Max. Drilling depth 50 mm
- Max. Stroke 160 mm
- Max. Magnetic holding force 12250 N.
- Sound pressure level 79 dB(A)
- Sound power level (LwA): 92 dB(A)
- Tool holder: Morse cone MK 2 / Weldon shank 19 mm (3/4")
- Product type
Core drill
1200 W
- Output rating
620 W
- Load speed
450 U/min
- Transmission type
2-speed
- Tool holder
Weldon shank
- Functions
Automatic load control
- Cable length
5.00 m
- Weight
12.7 kg
- Max. torque
90 Nm
- Idle speed
200 - 450 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2281693 Metabo MAG 50 -Core drill 1200 W
Warranty Terms
Warranty Terms 2281693 Metabo MAG 50 -Core drill 1200 W
Description
Scope of delivery
- Industrial socket for Weldon shank 19 mm
- Ejector pins 75 and 100 mm
- Audriver MK 2
- Safety strap
- Allen key SW 5
- Chip protection
- Carrying case
