Metabo Muley saw BAS 261 Cutting depth (max.) 103 mm 230 V 400 W Saw blade length 1712 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

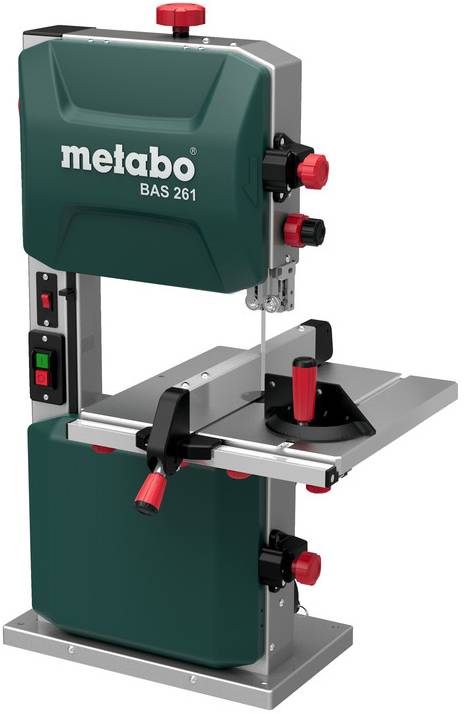

Band saw METABO BAS 261 Precision
- 400 W
- Band Speed: 735 m/min
Technical specifications
- Output power: 270 W
- Product type
Muley saw
400 W
- Tape speed
735 m/min
- Operating voltage
230 V
- Saw blade length
1712 mm
- Nosing
245 mm
- Cutting depth (max.)
103 mm
- Table dimensions
328 x 335 mm
- Length
530 mm
- Width
470 mm
- Height
840 mm
- Dim
(L x W x H) 530 x 470 x 840 mm
- Weight
32.5 kg
- Content
1 pc(s)
- Factory colour
Black
- Output rating
270 W
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1484233 Metabo Muley saw BAS 261 Cutting depth (max.) 103 mm 230 V 400 W Saw blade length 1712 mm
User & Safety Instructions
User & Safety Instructions 1484233 Metabo Muley saw BAS 261 Cutting depth (max.) 103 mm 230 V 400 W Saw blade length 1712 mm
Warranty Terms
Warranty Terms 1484233 Metabo Muley saw BAS 261 Cutting depth (max.) 103 mm 230 V 400 W Saw blade length 1712 mm
Description
High precision and stability for the highest cutting quality. Smooth belt run through balanced flywheels with rubber coating. Adjustable HSS precision three-roller guide of the saw blade at the top and bottom for exact cutting results. Precise rip fence with double clamping and quick fixing. Quiet induction motor, maintenance-free and robust. Restart protection: Prevents unintentional start-up after power interruption. Swiveling gray cast iron saw table for inclination cuts. Tool-free door opening for easy saw blade change. Tool-free height adjustment of the saw blade guard. LED work light for illuminating the interface. External suction is possible for dust-free work.
This text is machine translated.
This text is machine translated.
Features
- High precision and stability for highest cutting quality
- quiet belt operation through balanced flywheels with rubber coating
- Adjustable HSS-Precision three-roller guide of the saw blade on the top and bottom for precise cutting results
- Accurate parallel stop with double clamping and quick adjustment
- quiet induction motor, maintenance-free and robust
- Restart protection: prevents accidental start-up after power interruption
- Swivel gray cast iron saw table for tilt cuts
- Tool-less handy door-opening function for easy change of saw blade
- Tool-free height adjustment of the saw blade protection
- LED work light for illumination of the interface
- External extraction for dust-free working possible.
Scope of delivery

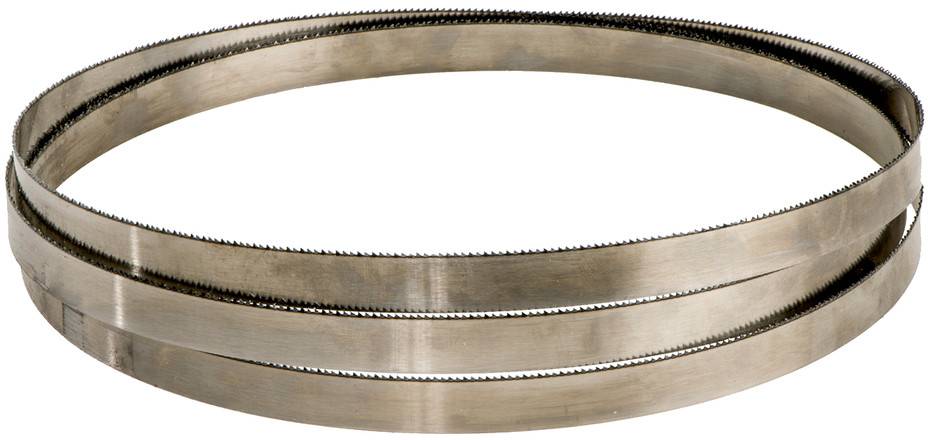

- A6 universal band saw blade
- Parallel stop
- Angle stop
- Suction adapter (for Ø 44, 58, 100 mm)
- Sliding stock.
Hints
This text is machine translated.
