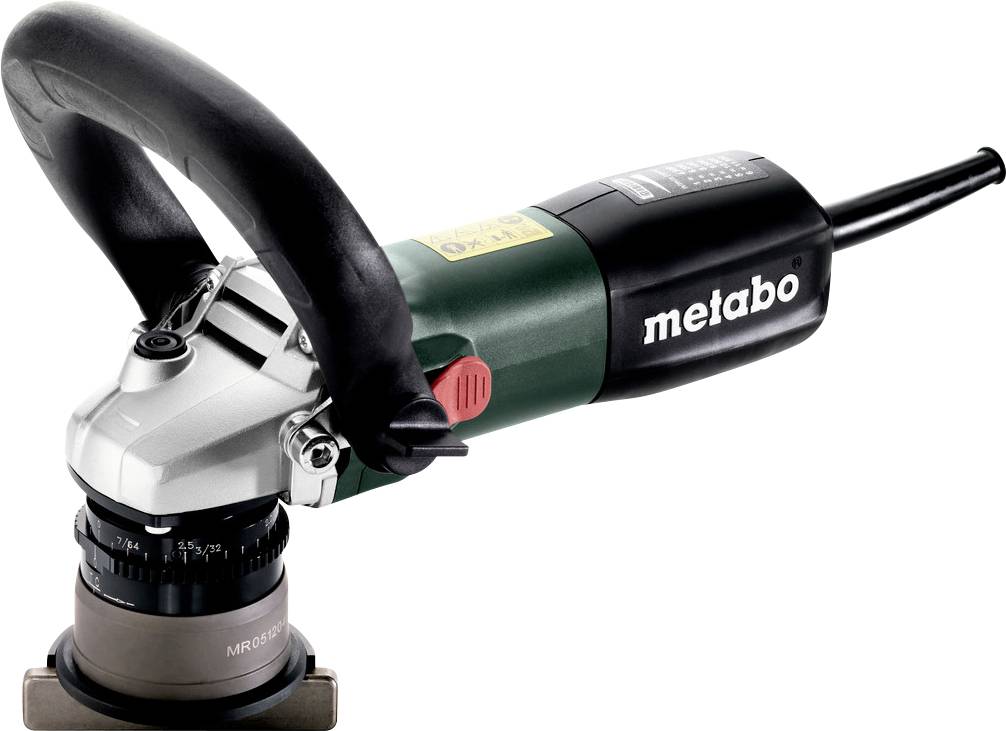

Metabo Palm router 601751700 KFM 9-3 RF 470 W
EAN:
Part number:
Item no:
Metabo KFM 9-3 RF edge-frarese
Highlights & Details
- Compact metal edge trimmer for 45° chamfers and radii from 2 to 3 mm at visual edges
- Oxide- and burr-free surfaces as optimal preparation for the application of powder or paint coatings for maximum corrosion protection
- One-touch controller: Patented, tool-free trimming depth setting in 0.1 mm steps; snap-in points for short setting times, against unintentional adjustment of the trimming depth while working
- Slim milling head with commercially available hard-metal inserts and ball bearing thrust ring for working in pipes and on roundings
- Guide stop for an even work result and high surface quality when machining straight sheets
- Metabo Marathon motor with patented dust protection for long life
- Vario-Constamatic (VC) solid shaft electronics with adjusting wheel: For working with speeds that are suitable for material and which remain almost constant under load
- Electronic safety shutdown of the engine when locking the application tool for safe working
- Electronic overload protection, soft start-up and restart protection
- Slim design for optimum handling
- This text is machine translated.
Technical specifications
- Step-down trimming depth setting: 0.1 mm
- Type of edges: Chamfer and radius
- Cable length 4 m
- Max. Chamfer width 45°: 6 mm
- Max. Chamfer height 45°: 4 mm
- Possible radii: R2/R3
- Rated input power 900 W
- Roundings of the smallest inner Ø: 13 mm
- Sound pressure level 87 dB(A)
- Sound power level (LwA): 98 dB(A)
- Product type
Palm router
470 W
- Operating voltage
230 V
- Weight
2.5 kg
- Idle speed
4500 - 11500 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2281651 Metabo Palm router 601751700 KFM 9-3 RF 470 W
Warranty Terms
Warranty Terms 2281651 Metabo Palm router 601751700 KFM 9-3 RF 470 W
Description
Scope of delivery
- 2 carbide inserts 45° chamfer (ISO: DCMT 11 T 304)
- 2 carbide inserts radius R2
- 2 carbide inserts radius R3
- guide stop
- screwdriver 6-round 15
- handle
- MetaLoc case
