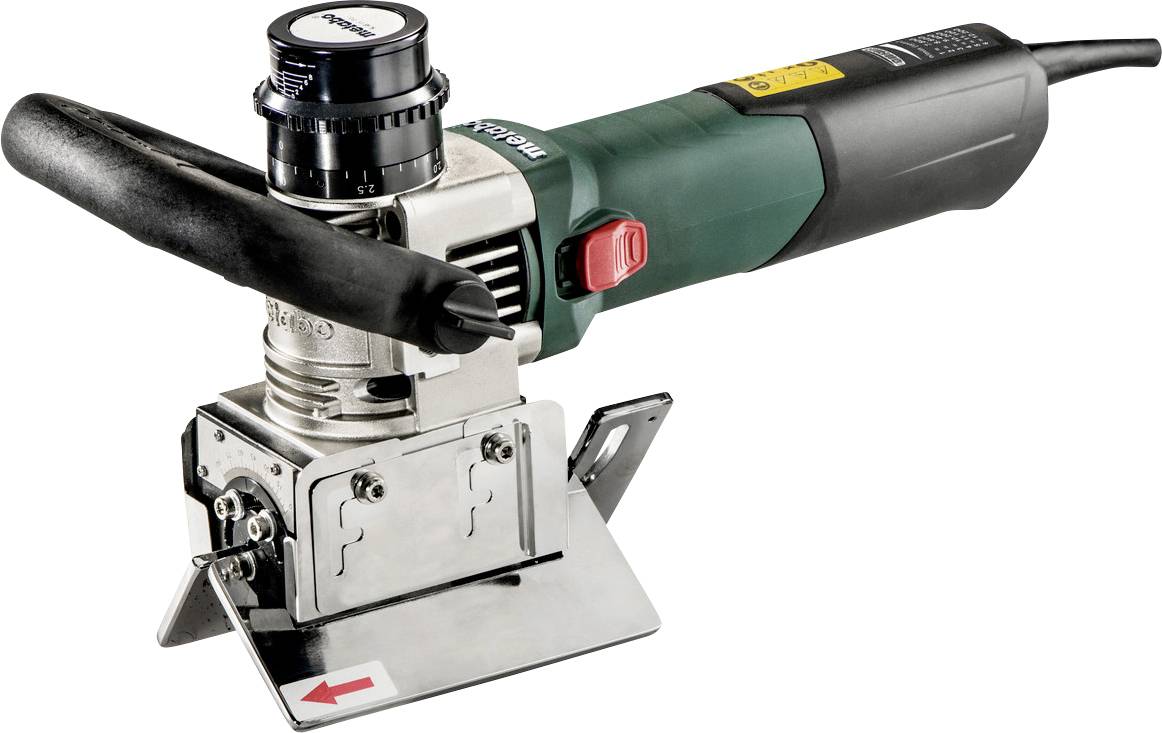

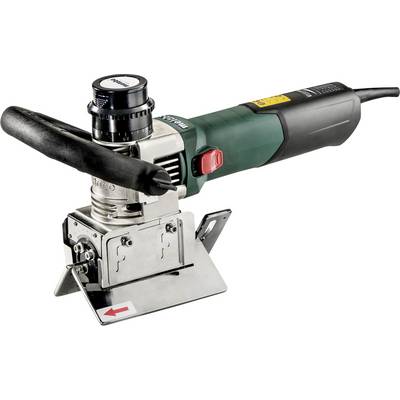

Metabo Palm router 601752500 KFM 15-10 F 810 W
EAN:
Part number:
Item no:
Highlights & Details
Metabo KFM 15-10 F edge-frarese
- Metal edge trimmer for chamfer heights up to 10 mm for welding seam preparation
- One-touch controller: Patented, tool-free trimming depth setting in 0.1 mm steps; snap-in points for short setting times, against unintentional adjustment of the trimming depth while working
- Precise adjustment of the chamfer angle directly via the guide plates
- Universal milling head with three carbide inserts for all chamfer angles of 0-90°
- Controlled work by large guide plates
- Stop roller for guiding at pipes for easy welding seam preparation
- Tool-free adjustable handle for safe and even guiding
- Metabo Marathon motor with patented dust protection for long life
- Vario-Constamatic (VC) solid shaft electronics with adjusting wheel: For working with speeds that are suitable for material and which remain almost constant under load
- Electronic overload protection, soft start-up and restart protection
- Protection of the user by side sheets for extracting the chips
- This text is machine translated.
Technical specifications
- Step-down trimming depth setting: 0.1 mm
- Edge type: Chamfer
- Cable length 4 m
- Max. Chamfer width 45° 14 mm
- Max. Chamfer height 45°: 10 mm
- Rated input power 1500 W
- Rounds of the smallest external Ø: 75 mm
- Sound pressure level 92 dB(A)
- Sound power level (LwA) 103 dB(A)
- Product type
Palm router
810 W
- Operating voltage
230 V
- Weight
4.9 kg
- Idle speed
7800 - 12200 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2281652 Metabo Palm router 601752500 KFM 15-10 F 810 W
Warranty Terms
Warranty Terms 2281652 Metabo Palm router 601752500 KFM 15-10 F 810 W
Description
Scope of delivery
- 3 hard-metal inserts Universal
- stopper roller
- Screwdriver Six-round 15
- screwdrivers SW 4 With T-handle
- open-end wrench SW 10
- additional handle
- Sheet steel-carrying case
