Metabo STE 100 Quick Jigsaw 601100000 710 W
EAN:
Part number:
Item no:

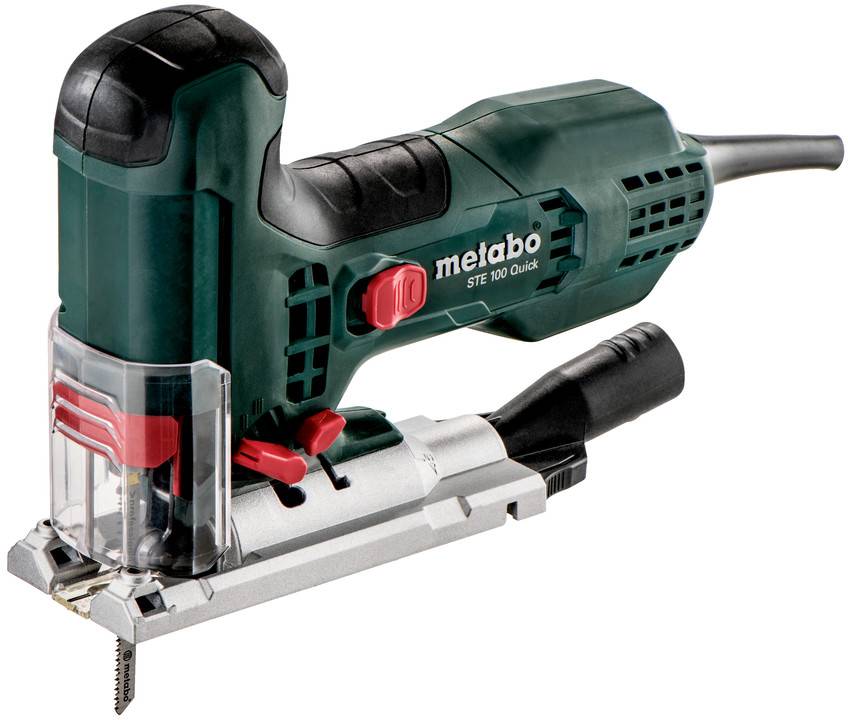

Metabo STE 100 Quick jigsaw
Highlights & Details
- Extremely slim jigsaw for perfect handling in every use
- Precise and material-oriented sawing through variable stroke rate, pendulum stroke and low-flying, spring-supported saw blade guide
- Metabo Quick for tool-free saw blade change with automatic ejection
- Switchable swarf blowing function ensures a clear view of the cutting surface
- Vario-Constamatic (VC) solid shaft electronics for working with material-compatible lift numbers, which remain almost constant under load
- Extraction option by connecting an all-purpose vacuum
- Guide rail and guide available as an accessory
- This text is machine translated.
Technical specifications
- Measurement uncertainty K: 1.5 m/s²
- Measurement uncertainty K_2: 3 dB(A)
- Pendel hub levels: 4
- Sawing wood: 13 m/s²
- Sawing metal: 13.7 m/s²
- Sound pressure level 86 dB(A)
- Sound power level (LwA) 97 dB(A)
- Swivel range from/to: - 45 / + 45 °
- Product type
Jigsaw
710 W
- Number of strokes (max.)
3100 /min
- Upstroke (max.)
22 mm
- Cutting depth (max.) (wood)
100 mm
- Cutting depth (max.) (steel)
10 mm
- Cutting depth (max.) (aluminium)
25 mm
- Output power
470 W
- Cable length
4.00 m
- Operating voltage
230 V
- Weight
2 kg
- Factory colour
Multicolour
- Output rating
470 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282256 Metabo STE 100 Quick Jigsaw 601100000 710 W
Warranty Terms
Warranty Terms 2282256 Metabo STE 100 Quick Jigsaw 601100000 710 W
Description
Scope of delivery
- Suction supports
- Protective glass
- Fixed spanner
