Metabo TKHS 315 M - 4,2 DNB Table saw 315 mm 4200 W 380 V
EAN:
Part number:
Item no:
Highlights & Details

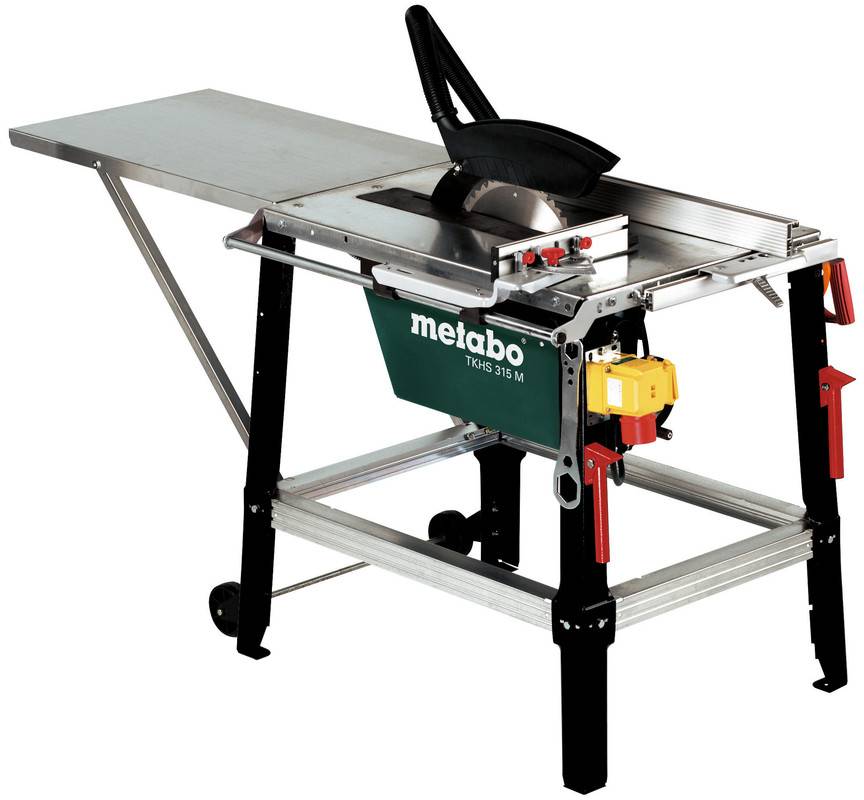

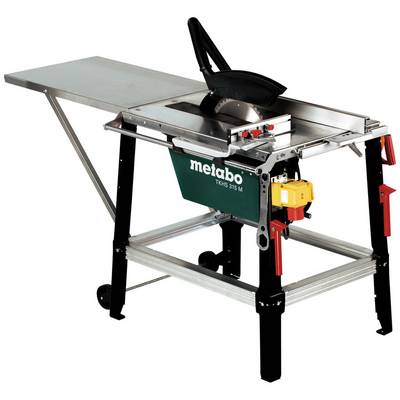

Metabo TKHS 315M 4.20 DNB table saw
- Restart protection: Prevents unintentional start-up after power interruption
- Precise, powerful table circular saw in professional equipment - quickly equipped for any application
- Ideal for sawing timber, boards, panels and wood-like materials in the workshop and on the construction
- Quiet induction motor with motor brake and overload protection - maintenance-free and robust
- Angle stop with stop ruler, can also be used as slide carriage
- Stable rip fence with quick fixing
- Continuously height-adjustable saw blade
- Comfortable setting of the saw blade inclination from the front
- Robust, powder-coated steel sheet construction and galvanized table top
- Folding table extension
- Frame and motor pre-assembled
- High torque three-phase motor
- This text is machine translated.
Technical specifications
- Working height: 850 mm
- Max. Contact surface 800 x 600 mm
- Max. Material width at angle stop: 250 mm
- Max. Width of cut at rip fence 340 mm
- Max. Cutting height 90/45°: 85 / 53 mm
- Uncertainty K 4 dB(A)
- Saw blade swivel range 0 - 45 °
- Sound pressure level 97 dB(A)
- Sound power level (LwA) 106 dB(A)
- Cuting speed 50 m/s
- Cutting height 0 - 85 mm
- Product type
Table saw
- Saw blade diameter
315 mm
4200 W
- Operating voltage
380 V
- Length
1000 mm
- Width
1700 mm
- Height
700 mm
- Dim
(L x W x H) 1000 x 1700 x 700 mm
- Weight
77 kg
- Idle speed
2900 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2282306 Metabo TKHS 315 M - 4,2 DNB Table saw 315 mm 4200 W 380 V
Warranty Terms
Warranty Terms 2282306 Metabo TKHS 315 M - 4,2 DNB Table saw 315 mm 4200 W 380 V
Description
Scope of delivery
- Carbide saw blade with change tooth (24 teeth)
- Chassis including handles
- Parallel guide
- Angular stop
- Table extension (600 x 800 mm)
- Chip suction device
- Push-lock
