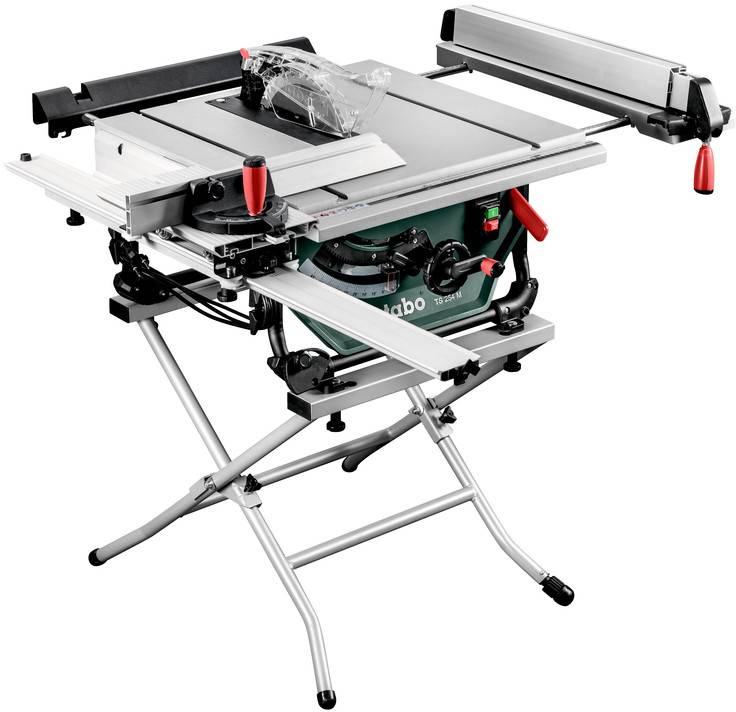

Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
EAN:
Part number:
Item no:
Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
Highlights & Details
- Compact mobile table saw with good cutting performance and hohem comfort
- Torsion-resistant tubular frame construction for the toughest demands on construction site and assembly
- Cable and all attachment parts can be stowed on the housing for transport
- High-torque motor with electronic overload protection
- Motor brake for quick stop of saw blade in 3 seconds
- Restart protection: Prevents unintentional start-up after power interruption
- Soft start for long life
- Fine adjustable rip fence with double clamping and quick fixing
- Exact saw blade inclination via toothed rim guide
- Automatic reset to 0-45° after undercut
- Simple change of saw blade by spindle lock
- Wedge can be countersunk without tools for concealed cuts and transport
- Precise, extendable table extension and extension for extra large contact surface
- This text is machine translated.
Technical specifications
- Product type
Table saw
- Saw blade diameter
254 mm
- Bore Ø
30 mm
1500 W
- Operating voltage
230 V
- Cutting depth (max.) (45°)
48 mm
- Cutting depth (max.) (90°)
80 mm
- Table dimensions
669 x 748 x 334 mm
- Weight
24.4 kg
- Idle speed
4200 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2305923 Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
User & Safety Instructions 2305923 Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
Information
Information 2305923 Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
Warranty Terms
Warranty Terms 2305923 Metabo TS 254 M Set Table saw 254 mm 30 mm 1500 W 230 V
Description
Scope of delivery
- Carbide saw blade with change tooth (40 teeth), TSU base frame, rip fence, angle stop, TS sliding carriage, table extension, table extension (right), sliding lock
