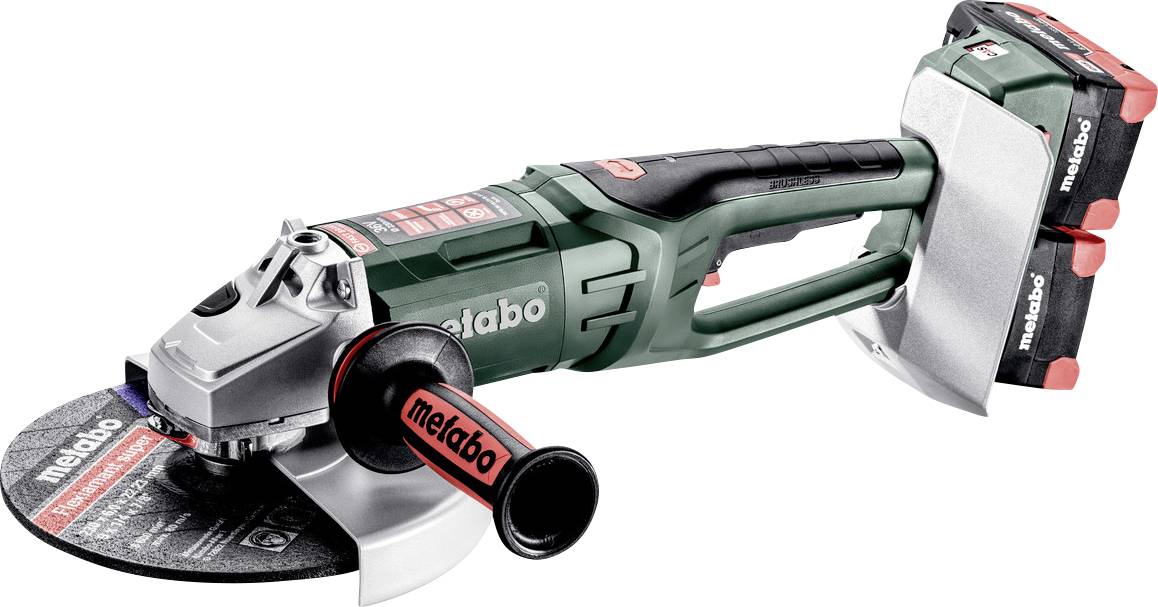

Cordless Metabo angle grinder with handle and side guard, shown with a battery attached on a white background.

A construction worker in protective clothing cuts metal with an electric saw, sparks flying. He is wearing a hard hat and safety glasses.

A construction worker in protective equipment is cutting metal with an angle grinder. Sparks are flying on a building site.

Construction worker wearing a hard hat and high-visibility clothing cuts steel beams on a building site in an urban setting.

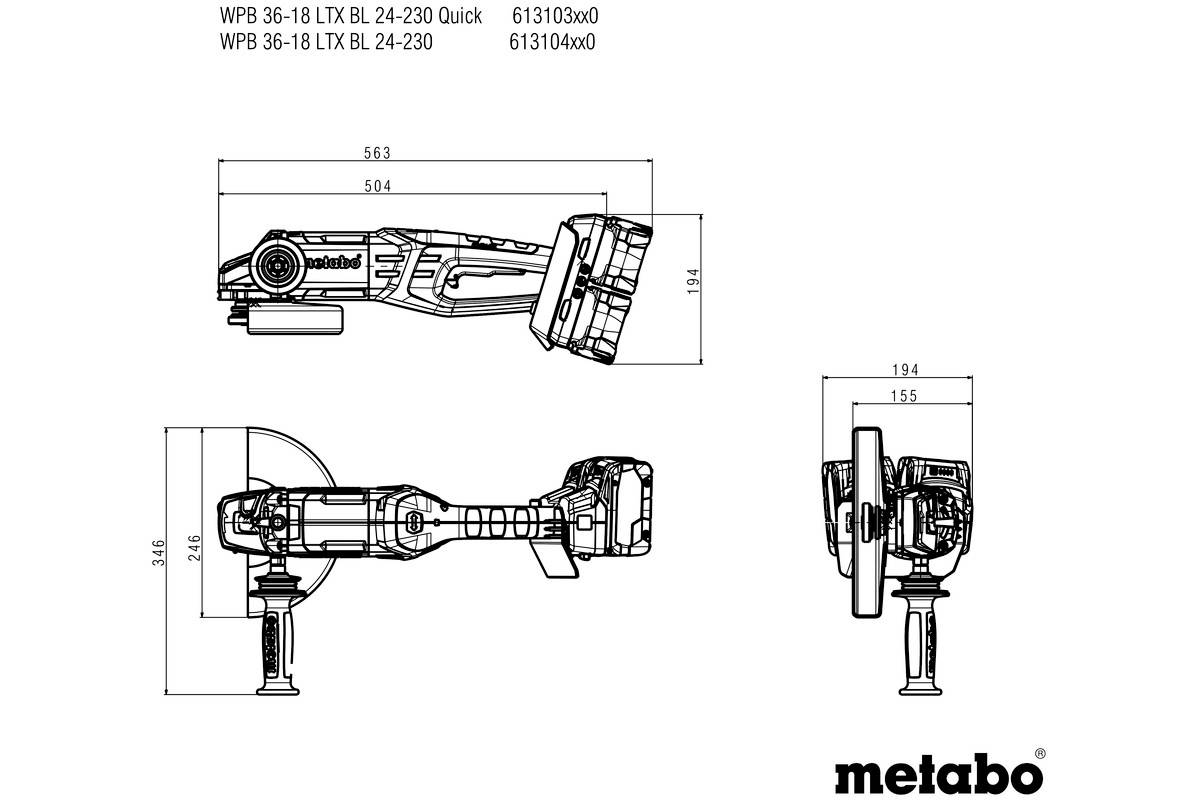

'Technical drawing of a Metabo angle grinder machine, Model WPB 36-18 LTX BL 24-230. Dimensions and component view in three perspectives.'

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

WPB 36-18 LTX BL 24-230 Quick battery-angle grinder

Highlights & Details

18 V

Technical specifications

Product type: Cordless angle grinder

Features: brushless
incl. forth battery
incl. charger
incl. case

Voltage: 18 V

Capacity (mAh, Ah): 8 Ah

Disc diameter: 230 mm

No. of power packs included: 4

Max. separation depth: 79 mm

Mandrel thread: M14

Length: 563 mm

Width: 346 mm

Height: 194 mm

Dim: (L x W x H) 563 x 346 x 194 mm

Weight: 4.6 kg

Weight, information: without rechargeable battery

Idle speed: 6600 U/min

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2813313 Metabo WPB 36-18 LTX BL 24-230 Quick 613103810 Cordless angle grinder 230 mm brushless, incl. forth battery, incl. charg

User & Safety Instructions

User & Safety Instructions 2813313 Metabo WPB 36-18 LTX BL 24-230 Quick 613103810 Cordless angle grinder 230 mm brushless, incl. forth battery, incl. charg

Information

Test Summary Report 2813313 Metabo WPB 36-18 LTX BL 24-230 Quick 613103810 Cordless angle grinder 230 mm brushless, incl. forth battery, incl. charg

Security datasheet

Security datasheet 2813313 Metabo WPB 36-18 LTX BL 24-230 Quick 613103810 Cordless angle grinder 230 mm brushless, incl. forth battery, incl. charg

Description

Large, high-performance battery-angle grinder (Ø 230 mm) for powerful cutting and roughing independent of the mains
100% compatibility with 18 V class: Powerful 36 V operation with two 18 V Metabo battery packs
Wide application spectrum by extremely large separation depth of 77 mm
Unique encapsulated Metabo brushless motor with optimum dust protection for fast work progress and highest efficiency
Dead-man switch for high user protection
Fast brake system for the highest level of user protection stops the disc within seconds after switching it off
Metabo quick for tool-free disc changes through quick clamping nut
Protective hood adjustable without tools; can be fixed without twist
Rotating main handle: High security and better handling while cutting
Additional handle Metabo VibraTech (MVT) for vibration damping for protecting your health
Additional handle can be mounted in three positions
Electronic safety shutdown: Reduces kick back when blocking the window - for high user protection
Electronic overload protection, soft start-up and restart protection
LiHD battery pack for ultimate performance, extremely long run time and life
Many brands, one rechargeable battery system: This product can be combined with all 18V battery packs and chargers of the CAS brands (cordless-alliance system).
