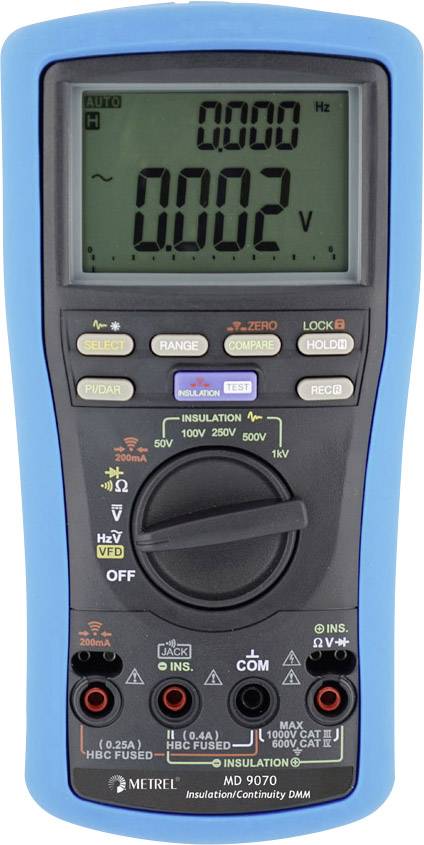

Metrel MD 9070 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 25.0 GΩ
EAN:
Part number:
Item no:
Highlights & Details
Digital multimeter for insulation/continuity test MD 9070
- CAT IV 600V, CAT III 1000 V
- TRMS Measurement
- Insulation resistance measurement up to 1000 V
Technical specifications
- Product type
Insulation tester
- Test voltage
50 V
100 V
250 V
500 V
1000 V
- Reading type
Insulation resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
0.015 - 20 Ω
IP40
- Dim
(L x W x H) 10.3 x 20.8 x 6.5 cm
- Weight
635 g
- Display type
Digital
- Max. frequency
5 kHz
- Min. frequency
50 Hz
- Frequency range
50 Hz - 5 kHz
- Insulation resistance (max.)
25.0 GΩ
- Voltage reading range (max.)
1000 V
- Voltage reading range (min.)
0.001 V
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
20.8 cm
- Height
6.5 cm
- Length
10.3 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1599727 Metrel MD 9070 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 25.0 GΩ
Description
The MD9070 is a precise multimeter for insulation and continuity measurement in a CAT IV 600 V environment can be used. On the dual digital display shows the operator with all the necessary information is displayed. The size is chosen so that it can be operated with one hand.
It is equipped with a built-in VFD-function that enables the device to measure the actual effective value in accordance with frequency, implementation of PI/DAR measurements and diode tests. The MD9070 has a wide range of additional functions, including the data hold function, memory, Min/Max, difference, automatic cut-off, automatic range selection, frequency filter, lock function, Reset, relative function and much more.
This text is machine translated.
It is equipped with a built-in VFD-function that enables the device to measure the actual effective value in accordance with frequency, implementation of PI/DAR measurements and diode tests. The MD9070 has a wide range of additional functions, including the data hold function, memory, Min/Max, difference, automatic cut-off, automatic range selection, frequency filter, lock function, Reset, relative function and much more.
This text is machine translated.
Features
- Continuity testing
- Resistance measurement
- Diode test
- Mains frequency measurement
- Data Hold freezes the display for later viewing a
- Display light for working in dark environments.
Scope of delivery
- Multimeter MD9070 with rubber sleeve
- Test leads with probe tip 2 pcs
- Insulated alligator clips, 2 pieces
- Test lead for insulation/continuity with probe tip with remote release, 1 pcs
- Batteries 1.5 V, AA (IEC LR6), 4 pcs
- User manual
