Metrel MI 3155 ST VDE tester kit Calibrated to (ISO standards) VDE standard 0100
EAN:
Part number:
Item no:
Highlights & Details
EurotestXD installation tester MI 3155 ST
Technical specifications
- Product type
VDE tester kit
ISO standards
- Interfaces
Bluetooth®
- Dim
(L x W x H) 165 x 252 x 111 mm
- Weight
1.78 kg
- DIN standard
DIN VDE 0100
- Display type
Digital (LCD)
- Width
252 mm
- Height
111 mm
- Length
165 mm
- Test procedure
automated
- Voltage supply
Rechargeable
- Memory
Yes
- Type
MI 3155 ST
- VDE standard
0100
- Features
built-in colour touchscreen
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1666104 Metrel MI 3155 ST VDE tester kit Calibrated to (ISO standards) VDE standard 0100
Description
MI 3155 EurotestXD is the flagship of metrels most advanced installation test devices and is specially designed for industrial applications. The ergonomic design as well as the intuitive control concept, with its unique storage structure, make the difference to other devices. Fully programmable AUTO-sequences, and the large color touch screen makes your work quickly and efficiently. The device works according to the common test standards, but also offers an insulation test up to 1000 V DC, the measurement of the discharge time and an extremely fast impedance testing. In addition to because measurements can now visual and functional tests in the EurotestXD filled in.
This text is machine translated.
This text is machine translated.
Features
- Uses:
- Testing of TT, TN and IT systems
- Testing of single and multi-phase systems
- Initial and periodic testing of domestic and industrial plants
- Low voltage Installation tests
- Maintenance
- Lightning protection systems
- Testing at high and low-frequency systems (industry, Aircraft, Railways, Mining, Chemical and ferry boats)
- Construction sites
- Mobile NS-generator units
- Testing of machines and switching systems
- Medical Installation tests
- Fire-brigade, rescue cars, military and police vehicles
- Mobile Video/Audio, concert halls, trade fairs, playgrounds
- Testing the charging stations (EVSE)
- The observation of insulation trends.
- Measurement functions:
- A low-impedance of the earth with 200 mA DC test current and polarity change
- PE-continuity testing with 7 mA power without RCD tripping
- RCD testing: General and selective, type AC/A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S
- Power and THD-measurement (up to 12. Harmonic)
- PE resistance measurement with 3-conductor at mains voltage (RPE-function)
- Insulation auto test between all conductors L-N and L-PE, N-PE (R ISO ALL-function)
- 4-wire resistance measurement
- TRMS-leakage and load currents (Option)
- Insulation resistance of 50 V DC up to 2500 V DC as well as PI, DAR Calculation
- Varistor Test
- 2-conductor and 3-conductor loop impedance measurement (L-PE) without RCD tripping
- Contact voltage measurement with external P/S probe
- 2-conductor and 3-conductor cable impedance (L-L, L-N) measurement
- 1-phase / 3-phase TRMS voltage and frequency measurements
- Line, loop and RCD-measurements in the frequency range 16... 400 Hz
- Phase sequence
- Four-wire impedance measurement of transformers
- Highly precise short-circuit current rating with berechnetem Hotfaktor
- Earthing resistance (3-wire and 2-pliers method)
- Specific earth resistance of Ro-Adapter (optional)
- The first error leakage current (ISFL)
- Testing of insulation monitoring devices (IMDs)
- Measurement of the discharge time
- Measurement of the light intensity (optional)
- High-resolution loop impedance (mΩ) (option)
- Charging column testing (EVSE) via adapter
- Cable detector optional
- QR and/or barcode scanner support (Option)
- Other features:
- Freely programmable AUTO-sequences
- Pre-defined auto-sequences
- Predefined automatic tests:
- Car TT (U, isn, Zs, UC)
- Car TN/RCD (U, isn, Zs, Rpe)
- Car TN (U, isn, Zlpe, Rpe)
- Car IT (U, isn, Isc, Isfl, IMD)
- Function tests
- Visual checks
- User-defined visual and functional tests in auto-sequences
- EVSE CAR sequences and function tests
- Visual and functional tests on machines
- Built-in Help Screens
- Built-in fuse tables for automatic evaluation of the line/Loop Impedance Results
- Monitoring of all 3 voltages in real-time
- Automatic polarity reversal in continuity test
- Automated RCD test procedure (RCD car)
- Automatic impedance test procedure (Z car)
- Depending on the selected measuring function filtering area Group
- By default, built-in charger and rechargeable batteries in the standard accessories
- BT-Communication with PC, Android tablet and Smartphones
- PC SW METERL IT Manager Pro license (P1101) enables structure, AUTO SEQUENCE and reporting as well as Daten-Up/Download
- Optional License (A1522) enables aMESM Android App structure and reporting, data up/download

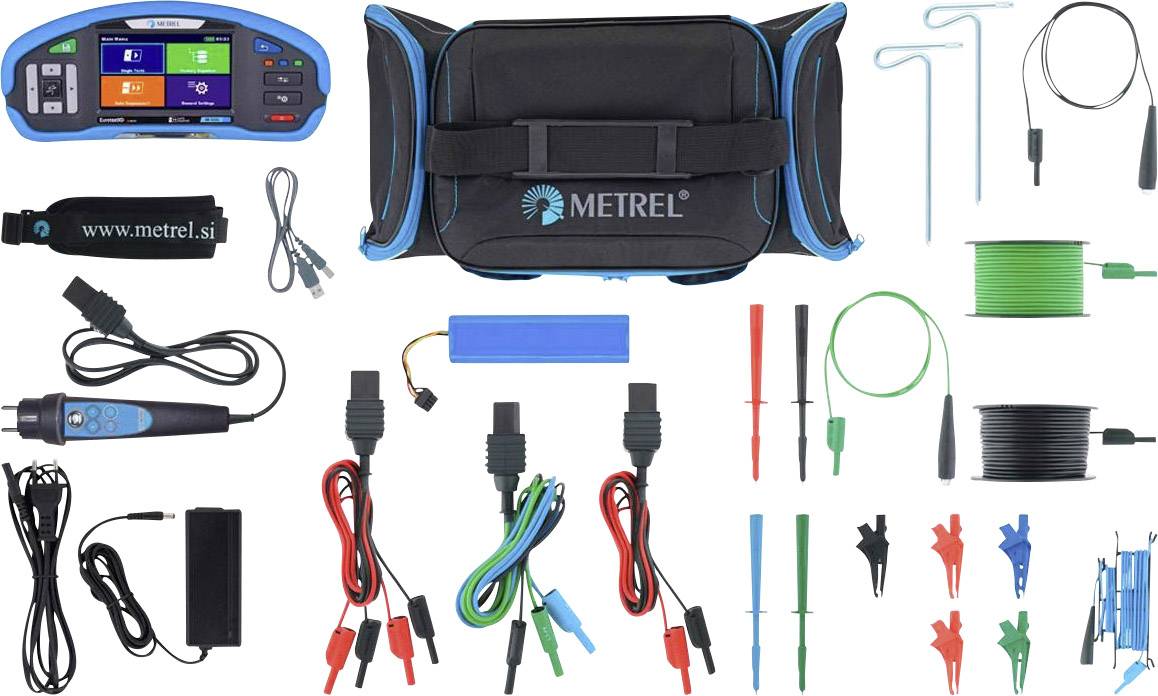

Scope of delivery
- 4400 mAh rechargeable battery
- Mains adapter 12 V/1.3 A wall bracket SA 115K-12 G ONTOP
- Commander-plug, 1.5 m
- 4-conductor test lead, 1.5 m
- 3-conductor test lead, 1.5 m
- 2-conductor test lead, 2.5 kV, 1.5 m
- 4 probes (black, blue, green, red)
- 6 alligator clips (2 x black, 1 x blue, 1 x green, 2 x red)
- Earthing set 20 m
- USB cable
- Soft carry case
- Soft Shoulder strap
- Meterl IT Manager Pro Plus (P1101)
- Quick guide
- Manual (CD)
- Instructions for testing and testing of low voltage installations (CD)
- ISO calibration certificate.
Hints
Supplied with German license.
What kind of VDE Testers are you looking for?

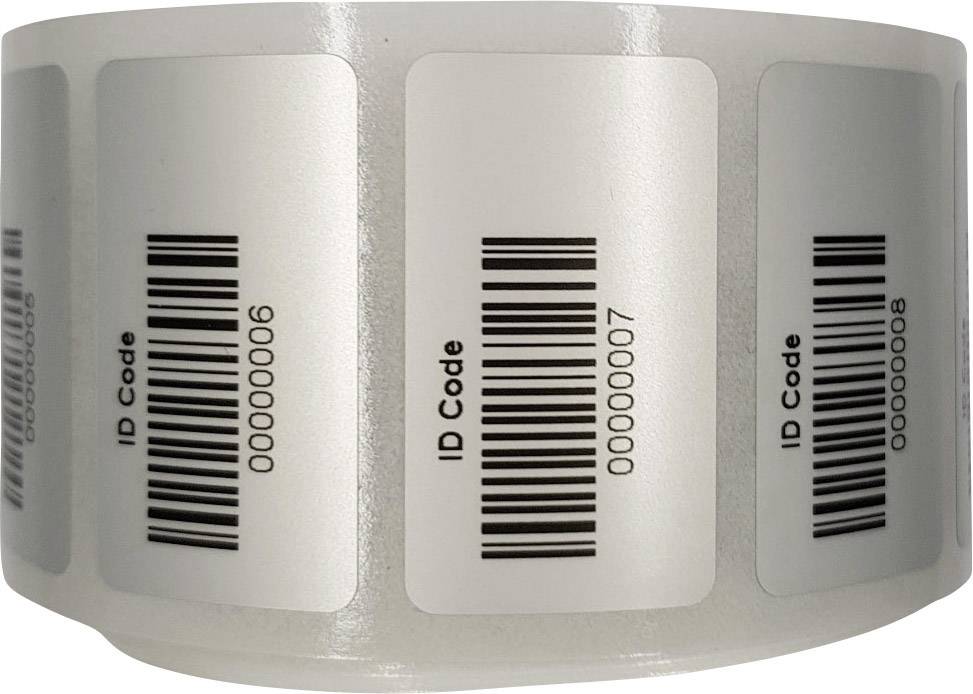

Accessories
