Metrel MI 3281 10M WR analyser 1-phase, 3-phase
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 17,192.44 / piece)
€
Technical specifications
- Test current 10 mA 20 A
- Pollution level: 2
- 4.3" (10.9 cm) 480 x 272 TFT color display
- IP65 (closed), IP40 (open)
- Dim
(L x W x H) 37 x 47 x 19 cm
- Weight
9.3 kg
- Height
19 cm
- Length
37 cm
- Width
47 cm
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Measurement type
1-phase
3-phase
- Product type
WR analyser
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2488016 Metrel MI 3281 10M WR analyser 1-phase, 3-phase
Description

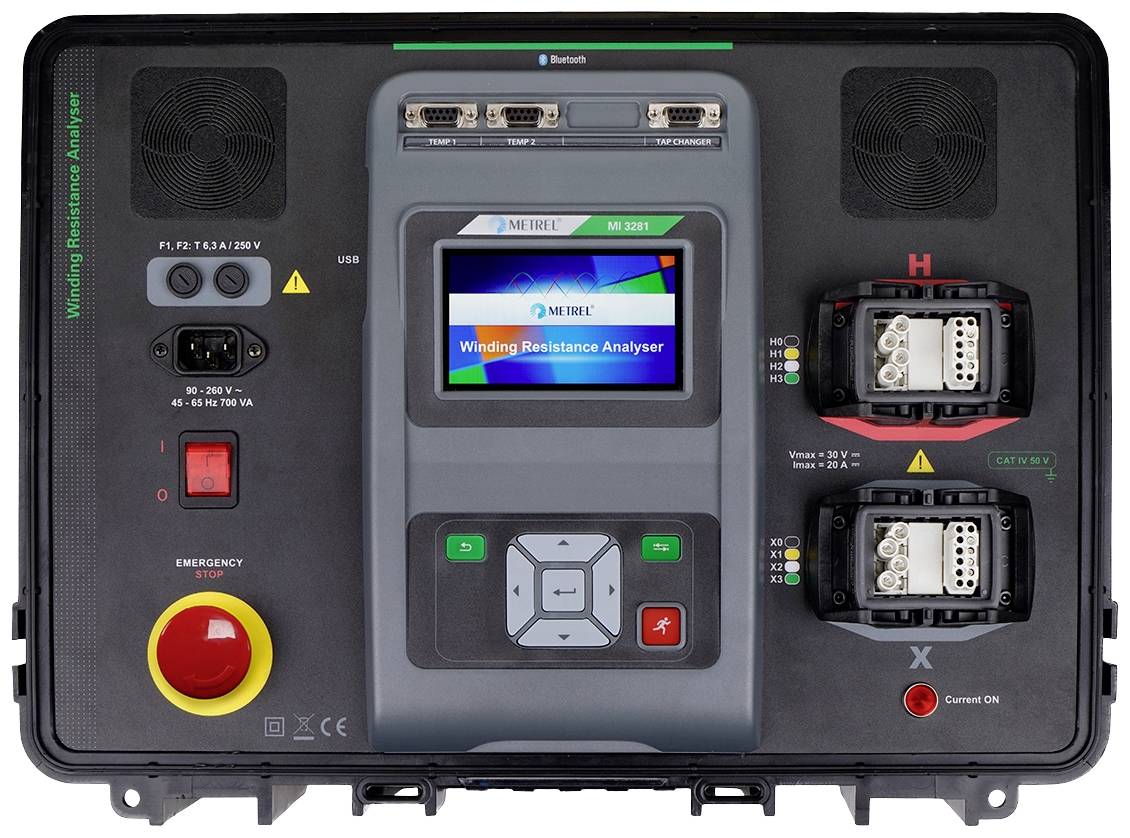

The Wind Resistance Analyser (WR Analyser) MI 3281 is a portable test device for diagnosing the winding resistance of single and three-phase transformers with manual or automatic step switch test and demagnetization of the tested transformer. Selectable test current range from 10mA to 20A. The operation is simple and clear, so that the user can operate the device without special training. For advanced users, the AUTO SEQUENCES and Visual Tests are available.
This text is machine translated.
This text is machine translated.
Features
- Test current can be selected up to 20 A.
- Automatic or manual level switch test
- Automatic discharge after completed measurement
- Integrated help windows for on-site reference
- Emergency off switch for all emergency situations
- The 4.3" (10.9 cm) LCD color display with touch screen shows all results and associated parameters clearly
- Operation is simple and clear so that the user can operate the device without special training
- The test results can be stored on the device
- PC SW Metrel ES MANAGER for creating test structures and uploading and downloading test results, Auto Sequence® and reporting
- Create and print reports
- BT communication with PCs, Android tablets and smartphones via built-in BT
- Conversion of winding resistors to a desired reference temperature
- IP 65 protection (enclosure closed), IP 40 (enclosure open)
- Measurement of the winding resistance of single and three phase transformers
- Measurement of winding resistance of single and three phase transformers with manual or automatic level switch test (automatic measurement of all coils)
- Demagnetize single and three phase transformers

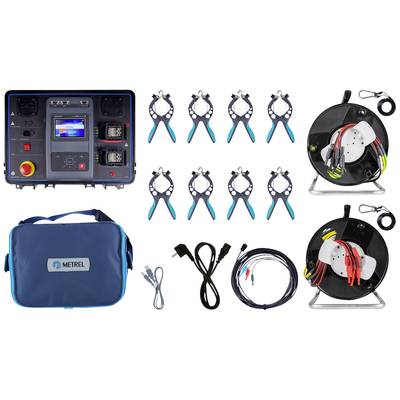

Scope of delivery
- Measuring device MI 3281
- A 1715 10M H-side test cable
- A 1716 10M X-side test cable
- A 17772 x reels for cable
- A 1757 8 x large Kelvin test terminal 65 mm
- 2x 1 m fixing cable with snap hook
- A 1813 position switch control cable 10 m
- USB cable
- Power cable;
- A 1006 bag for accessories
- Metrel ES Manager PRO license
- User manual
- Calibration certificate
