Metrel MI 3290 GX4 Earth ground meter
EAN:
Part number:
Item no:
Number
Total (€ 10,486.55 / piece)
€ 10,486.55
plus VAT.
14-day return policy included
Highlights & Details
Earth analyzer GX4
- Portable earth Resistance tester; Multiple Methods Available; Use in energetic Locations; Full Accessories;
Technical specifications
- Product type
Earth ground meter
- Content
1 pc(s)
- Type
MI 3290 GX4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536360 Metrel MI 3290 GX4 Earth ground meter
Information
Test Summary Report 2536360 Metrel MI 3290 GX4 Earth ground meter
Description
The MI 3290 Earthing Analyzer is a portable, battery-powered or mains-powered test device with an excellent IP protection class (IP 54 housing open), for measuring the earthing resistance, specific earth resistance and ground potential of the various energetic and non-energetic objects. The user can choose between different methods from the classic 3-wire earthing resistance measurement up to one or four clamp meter procedures for measuring high-voltage masts. It has a selection of measurement methods with different frequency Methods: Single frequency or frequencies from 55 Hz to 15 kHz, HF-procedures with 25 kHz and pulse method to simulate a lightning strike. Due to its high electrical interference resistance, this measuring device is ideally suited for industrial applications. The measuring instrument is available in several sets, which enable a combination of different accessories and measuring functions.
This text is machine translated.
This text is machine translated.
Features
- Possibility that all types of earthing measurements are carried out with a single measuring device.Analysis of the earth impedance as a function of the frequency due to a large measuring frequency band (55 Hz ... 15 kHz).Ground measurements on masts connected to a protective earth cable.The measurement at the single tower and 4-foot tower.A wide range of clamp meters: From current clamps to flexible current clamps with a length of 10 m.HF-earthing resistance (according to IEEE_Std 81).Sweep mode Z(f) on the screen.3.4" LCD color display with touch screen.Mains voltage input range (90 ... 260 V AC) or battery (quick charger installed).High degree of protection: IP 65 (housing closed), IP 54 (housing open).Checkbox - different self-test methods.DC resistance measurement.Impulse impedance measurement for simulation of a lightning strike.Support for single or automated measurements.Pre- and post-processing PC software: Test structure preparation, download results, tree view, table view and graphical display, save and print.

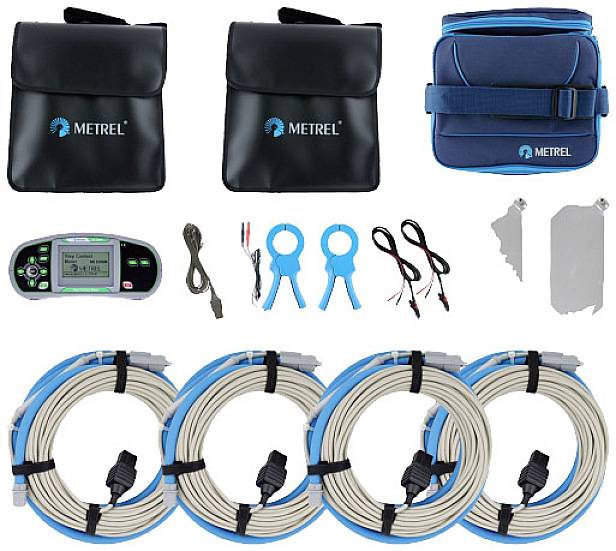

Scope of delivery
- Measuring device MI 3290Power ground spike 90 cm, 2 piecesPotential ground spike 42 cm, 2 piecesConnection cable black 2mTest lead red 5 mTest lead blue 5 mTest lead black on roll 50 m.Test lead green on roll 50 m.Test lead blue on roll 50 m.Shielded test lead on roll 75 m.G Clip-on ammeterA set consisting of test probes, alligator clips and 2m test lead, 4 piecesCarrying case for accessoriesUSB cablePower cable;Calibration certificateUser manualPC SW Meterl ES Manager
- License GXClip-on ammeter A 1018 with 3.5 m test leadClip-on ammeter A 1019Flexible clamp-on ammeter 5 m with 15 m shielded cableKelvin clip-on ammeter with 2.5 m cable, 2 pieces.Voltmeter MI 3295M with 2-conductor test leadStep voltage test plate, 2 piecesUpholstered carry bagCarrying case for accessoriesNiMH battery lines, type AA, 6 piecesPower supply adapterRS 232 and USB cable, soft carrying strap
- Flexible clamp-on ammeter 5 m with 15 m shielded cable, 3 piecesCarrying case for accessories
Hints
Supplied with German license.
