Metrix GX 1030 Mains-powered 0.01 MHz - 30 MHz 2-channel Arbitrary, Triangle, Lorentz curve, Pulse, Ramp, Noise, Rectang
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

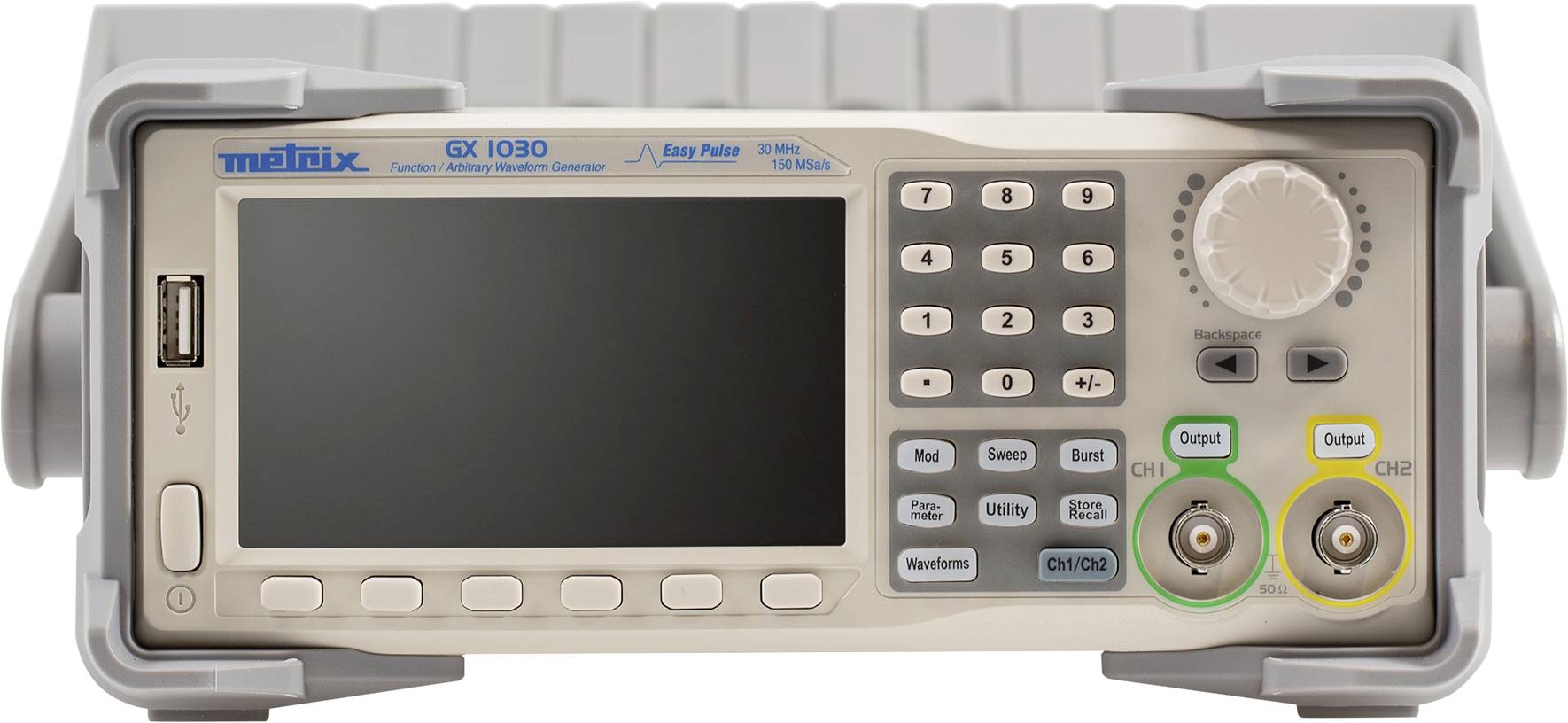

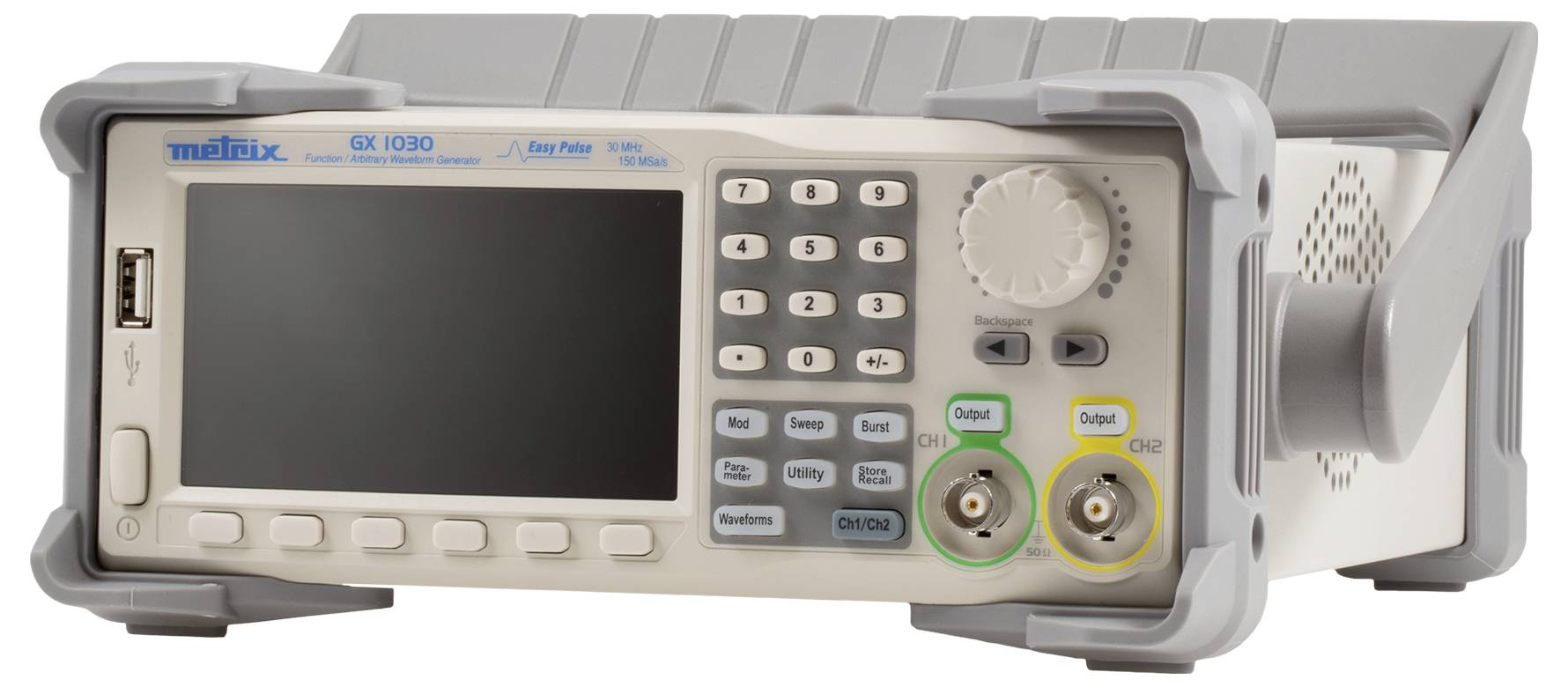

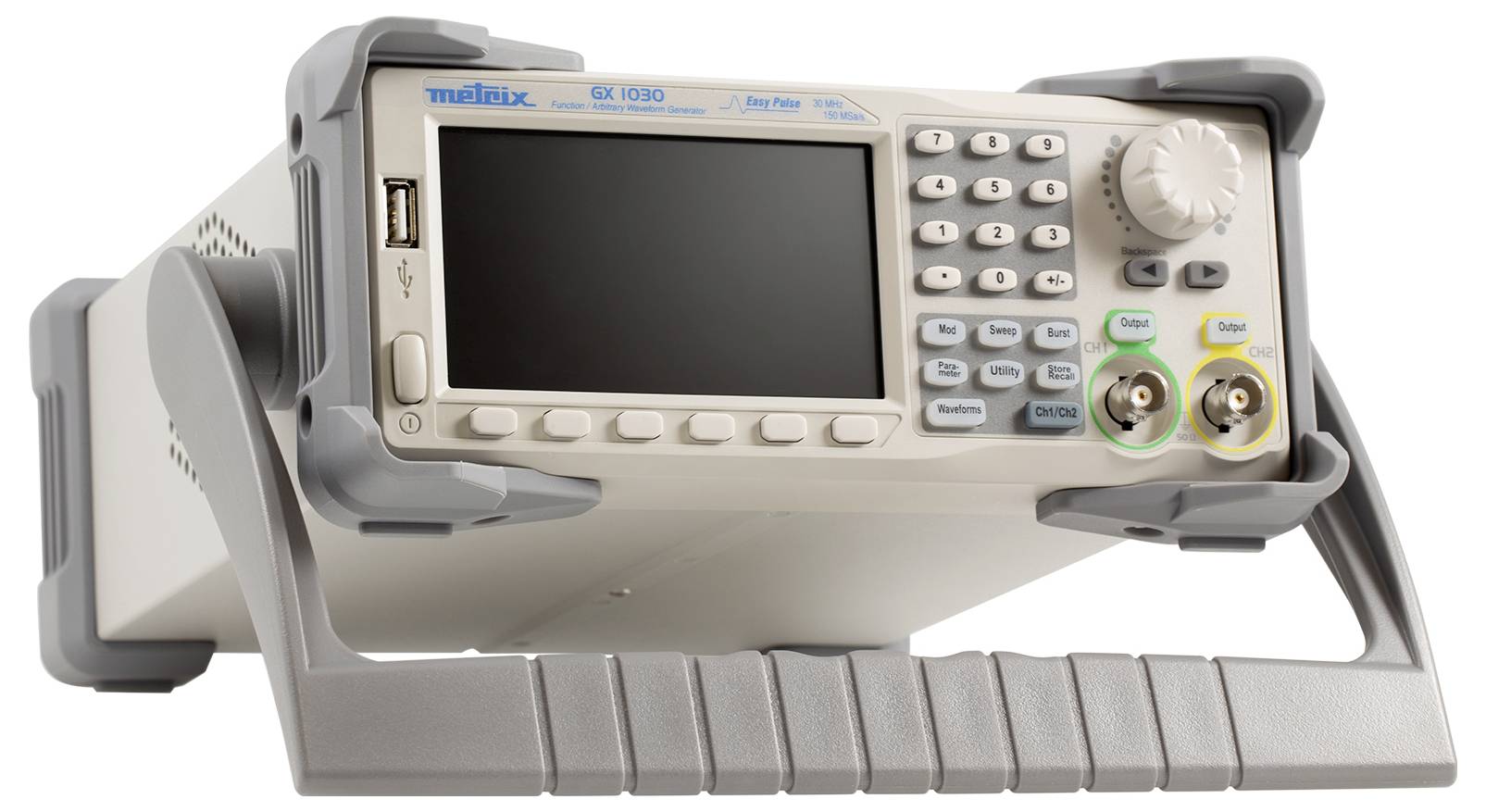

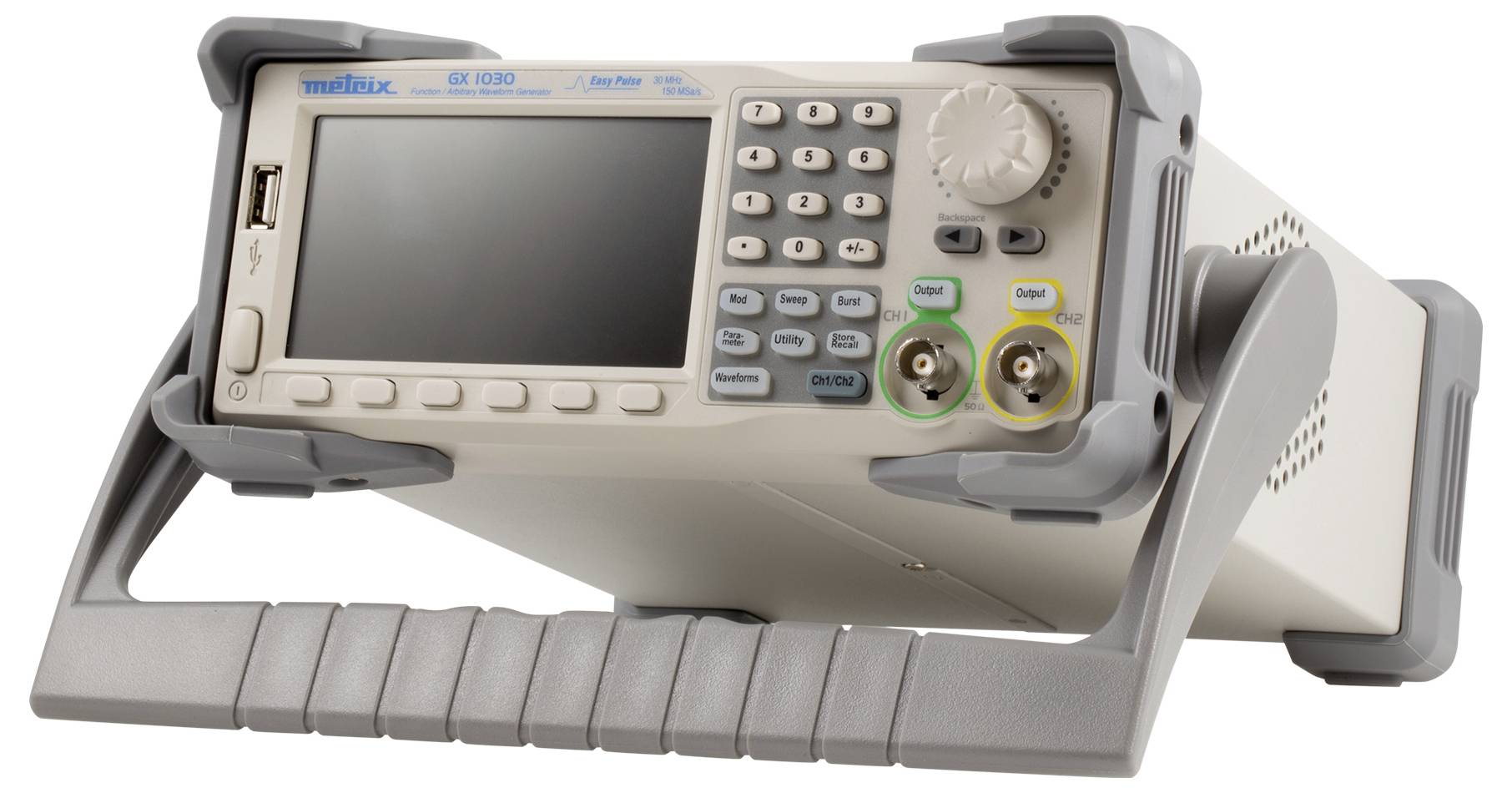

GX 1030 Arbitrary function generator
- Multi-functional, powerful arbitrary function generator for generating lowest stable high-fidelity signals up to 30 MHzEquipped with a large 4.3 inch TFT color display with Hohem contrast (960 x 540 mm)DDS technology at 2 outputs (coupling or doubling) - function combinationSampling rate of 150 Ms/s with a frequency resolution of 14 bitsAnalogue and digital AM or FM modulation, FSK&ASK, PSK and PWM as well as practical SWEEP and BURST functionsIntegrated frequency counter from 100 MHz to 200 MHzEasyPulse and TrueArb technology: Generating low jitter pulses and eliminating jitter/signal distortionProgrammable via USB or Ethernet connection, control via PC software and storage on a USB stick
Technical specifications
- Control keys on the front: 23 direct function keys, 1 rotary switchesSets the signal parameters: Continuously with encoder or Numeric keypadBNC outputs on the front: Generator outputs 1 & 2 - independent settings (waveform, f, phase, amplitude, ...), coupled, doubled, or combinedBNC inputs and outputs on the back: 3 inputs/outputs Ext-Trigger, frequency counter and clock 10 MHz - synchronizationSignal generationSignal shapes: Sine, square, triangle, ramp, pulse, Noise, arbitrary signal (196 pre-installed signal forms)Resolution/Sampling 14 bit / 150 MS/sMemory: Memory depth 16 kPts - Storage of pre-installed or specific signals on USB stickSx-Gene signal processing: Acquisition, transmission and modification of a signal recorded by an oscilloscope (OX5000, OX6000, OX7000, OX9000, Scopein@Box)Graphic or mathematical processing using the software Sx Gene Change of a recorded signal and/or combination of standard signals from the generatorSignal frequenciesFrequency range: Sine from 0.001 MHz to 30.000 MHz, triangle 500 kHz, noise and square 30 MHz, pulse 12.5 MHz, arbitrary signal 6 MHzResolution/accuracy: 7-digit display - Resolution of 1 MHz - vertical accuracy ≤ (1 % + 1 mVss) at 10 kHzLong-term drift: ±100 ppm/yearTemperature coefficient: Up to 5 ppm/°C.AmplitudeVoltage level: 50 Ω output = 2 mVss ~ 10 Vss to 10 MHz / 2 mVss ~ 5 Vss ≥10 MHz | HiZ output = 4 mVss ~ 20 Vss to 10 MHz / 4 mVss ~ 10 Vss ≥ 10 MHzLevel accuracy (Flatness): 7-digit display - Resolution of 1 MHz - vertical accuracy to = (1 % + 1 mVss) at 10 kHzVDC offset: ±100 ppm/yearImpedance/protection: Up to 5 ppm/°CSignal propertiesSinusoidal signal: Typ. Distortion rate up to 0.075 % for f to 20 kHz, and harmonics up to - 50 dBcTriangular signal (max. Frequency 2 MHz): Linearity error max. up to 1 %Rectangle & pulse: Typ. Rise time up to 16.8 ns - duty cycle 10-90 % (DC to f up to 20 MHz) - impulse min. 32.6 ns Resolution 1 nsAM modulationCarrier: Sine, square, triangle, arbitraryModulated signals: Sine, square, ramp, noise, arbitrary (1 MHz - 20 kHz)Depth: From 0% to 120%FM modulationCarrier: Sine, square, triangle, arbitraryModulated signals: Sine, square, ramp, triangle, noise, Arbitrary (1 MHz - 20 kHz)Frequency shift: From 0 to 15 MHzFSK modulationCarrier: Sine, square, triangle, arbitraryModulated signals: 50% duty cycle (from 1 MHz to 50 kHz)ASK modulation Column4Carrier: Sine, square, triangle, arbitraryModulated signals: 50% duty cycle (from 1 MHz to 50 kHzPM modulationCarrier: Sine, square, triangle, arbitraryModulated signals: Sine, square, ramp, triangle, noise, Arbitrary (2 MHz - 20 kHz)Phase displacement: From 0° to 360°PWM ModulationFrequency 1 MHz to 1 MHzModulated signals: Sine, square, triangle, noise, arbitraryResolution 6.67 nsSweepCarrier: Sine, square, ramp, triangle, arbitraryType: Linear / logarithmicDirection: Ascending or descendingSweep speed: 1 ms to 500 s.Trigger: Manual, external, internalBurstSignals: Sine, square, ramp, arbitraryType: Short (1-100,000 cycles), infinite, gatePhase start/stop: From 0° to +360°Internal period: From 1 μs to 1000 s ±1 %Frequency counterMeasuring range from 100 MHz to 200 MHzParameters: Frequency, depth, period, duty cycle, pulse
- Signal output type
Stairs, Trapezium, pulse, ramp, sine, …
- Product type
Mains-powered
- Frequency range
0.01 MHz - 30 MHz
- Signal output types
Arbitrary
Triangle
Lorentz curve
Pulse
Ramp
Noise
Rectangle
Waveform
Sinus
- Distortion factor (sine)
0.075 %
- Square wave slew rate
16.8 ns
- Display
LCD
- ARB frequency range
6 MHz
Manufacturer's standards (no certificate)
- Dim
(W x H) 260 mm x 107 mm
- Weight
4350 g
- No. of channels
2-channel
- Max. frequency
30 MHz
- Min. frequency
0.01 MHz
- Features
incl. cycle counter
Modulation
- Reading category
CAT II
- Width
260 mm
- Height
107 mm
- Interfaces
USB
LAN
- Voltage supply
230 V/AC
Mains
- Type
GX 1030
Documents & Downloads
Datasheet
Datasheet 2749774 Metrix GX 1030 Mains-powered 0.01 MHz - 30 MHz 2-channel Arbitrary, Triangle, Lorentz curve, Pulse, Ramp, Noise, Rectang
User & Safety Instructions
User & Safety Instructions 2749774 Metrix GX 1030 Mains-powered 0.01 MHz - 30 MHz 2-channel Arbitrary, Triangle, Lorentz curve, Pulse, Ramp, Noise, Rectang
Warranty Terms
Warranty Terms 2749774 Metrix GX 1030 Mains-powered 0.01 MHz - 30 MHz 2-channel Arbitrary, Triangle, Lorentz curve, Pulse, Ramp, Noise, Rectang
Description
The GX1030 is a 0.01 MHz to 30 MHz arbitrary function generator for precise and versatile, simple and complex signals of all kinds: Sine, square, triangle, ramp, pulse, Noise, arbitrary signal (196 pre-installed signal shapes), which generated with much higher accuracy and frequency stability than conventional generators. In addition, the GX1030 offers the user internal and external modulations as well as linear and logarithmic sweeps. With THE BURST function, on the other hand, which enables an even more accurate analysis and the detection of very short events, the desired number of signal cycles per time period can be set. An integrated frequency meter in turn covers the frequency range from 100 MHz to 200 MHz. The harmonic function generates 16 straight or odd orders with amplitude and phase. The ergonomic GX1030 has a large-format LCD display (960 x 540 mm), which offers an excellent readability on a 4.3" TFT color screen with Hohem contrast. Two PC software for generating arbitrary signals and programming the generator are available for download: SX-GENE and EasywaveX.
This text is machine translated.
This text is machine translated.
Features

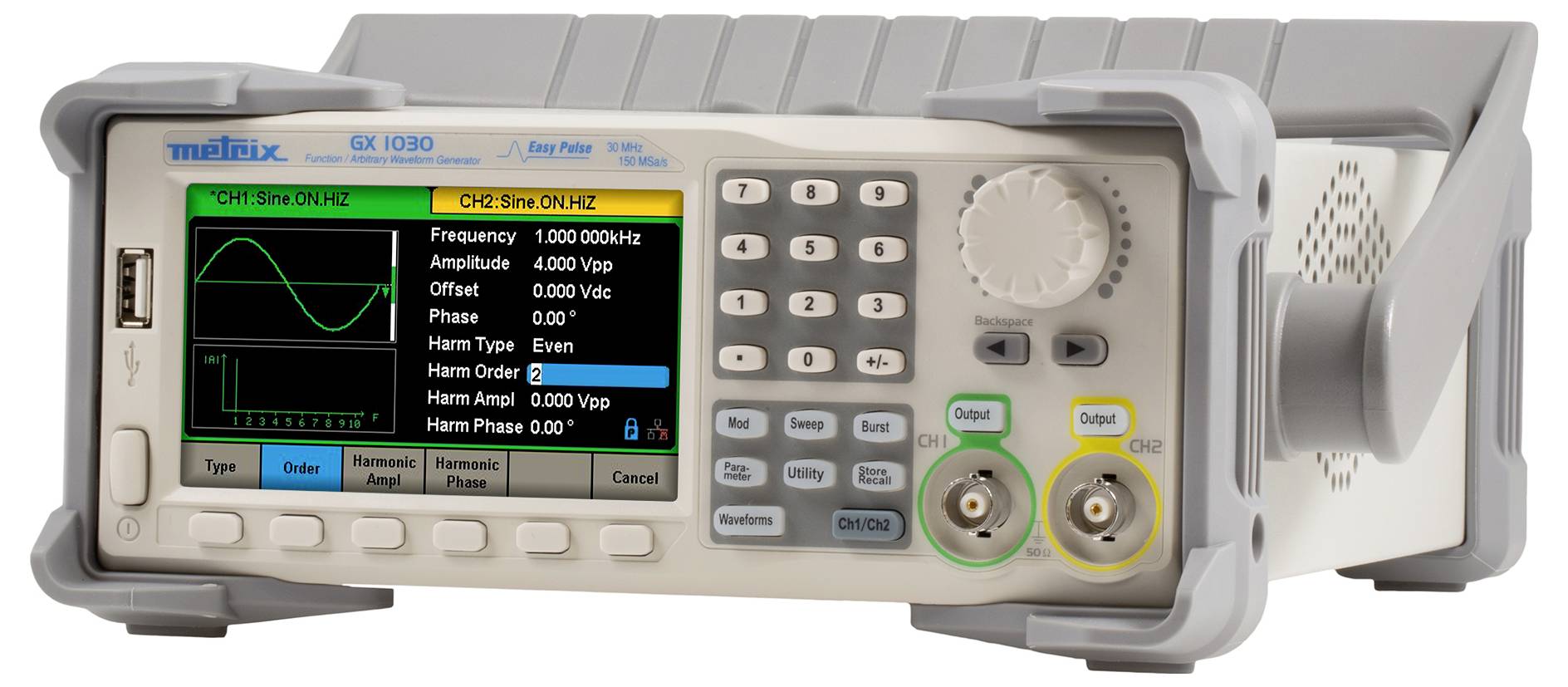

- BNC outputs on the front: Generator outputs 1 & 2Independent settings (waveform, f, phase, amplitude…), coupled, doubled or combinedBNC inputs and outputs on the rear: 3 inputs/outputs Ext-Trigger, frequency counter and clock source 10 MHz - synchronizationFrequency counter: From 100 MHz to 200 MHzHarmonic function: Graphical display, 16 straight or odd-numbered configurations with amplitude and phaseMemory: Store preset or specific signals or complete device configurations on a USB stickCommunication interface: USB device, USB host, LANFrequency range from 0.001 MHz to 30 MHz classical and arbitrary signalsDDS technology at 2 outputs (coupling or doubling) - combination of functionsSampling rate of 150 MS/s with a frequency resolution of 14 bitsAnalogue and digital AM or FM modulation, FSK&ASK, PSK and PWMPractical SWEEP and BURST functionsFrequency counter from 100 MHz to 200 MHzEasyPulse technology for generating pulses with low pulse jitterTrueArb technology for eliminating jitter and signal distortionProgrammable via a USB or Ethernet connection and storage on a USB stickHarmonic function: Graphical display: 16 orders, straight or odd, with amplitude and phaseCombination of the channels: Display of the arrangement: 2 internal channels CH1-CH2- CH1+CH2Memory: Store preset or specific signals or complete device configurations on a USB stickCommunication interfaces: USB device, USB host, LANSoftware: The SX-GENE software can be downloaded from our support website together with the LV and LW drivers
Scope of delivery

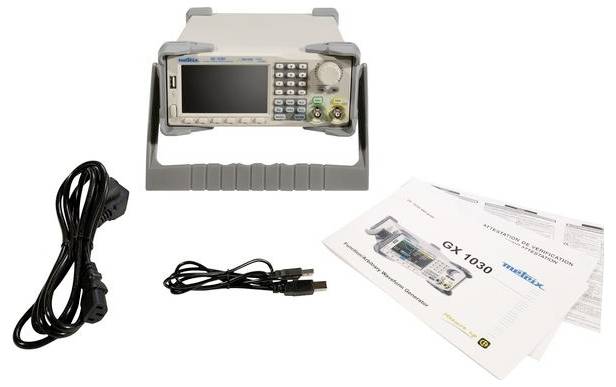

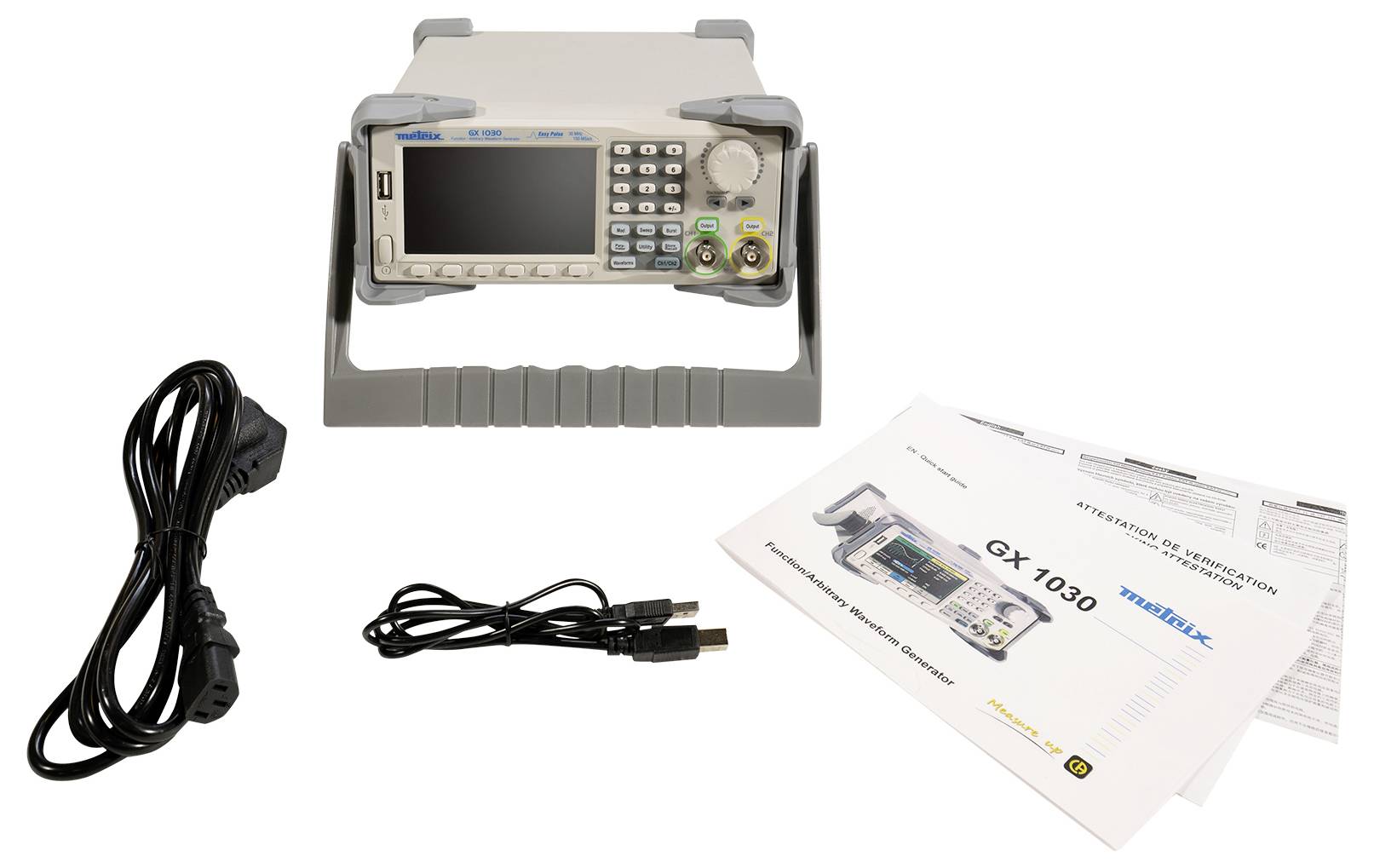

- 1 Power connection cable 2P+E
- 1 USB cable
- 1 five-language printed quick guide
What kind of Function Generators are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
