Metrix MTX 3291 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 570.59 / piece)
€ 570.59
plus VAT.
Only 2 Piece(s) available
Highlights & Details

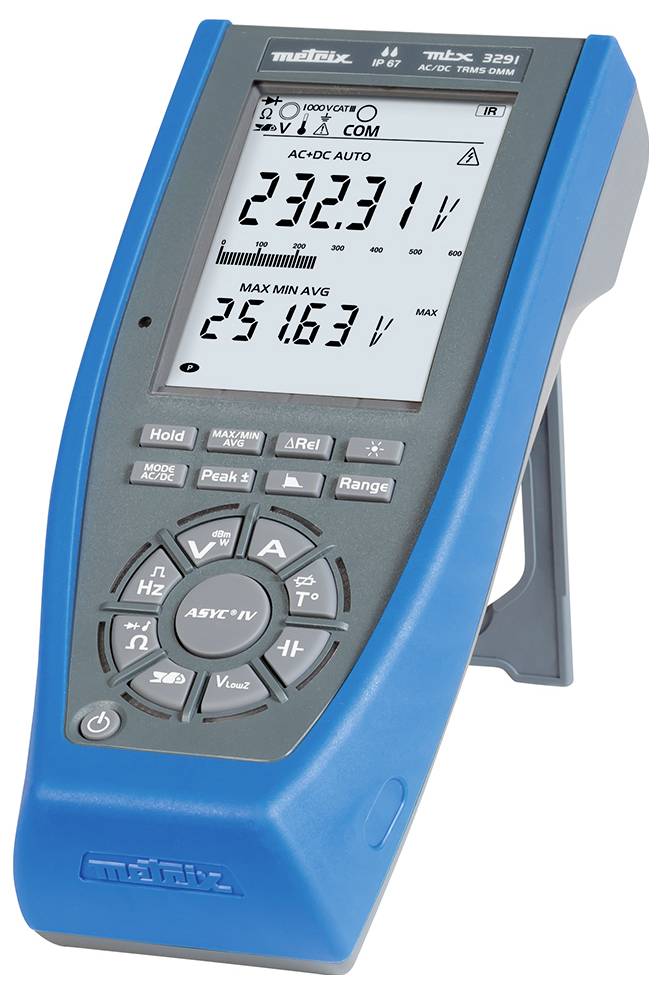

MTX 3291 digital multimeter
- Digital multimeter with robust, ergonomic and waterproof (IP67) housing with folding stand Direct measurement of the most important electrical parametersLarge, easy-to-read 70 x 52 mm LCD screen with 60,000 digits backlightOperation according to the principle 1 button = 1 functionEasily monitor voltage and current peaks with MAX/MIN/AVG with time specificationsWith optical USB interface for SX-DMM software for displaying, processing and analyzing data in real timeBASIC FUNCTIONS: V AC, V DC, V AC+DC, A AC, A DC, A AC+DC, resistor, acoustic Continuity test, diode test, frequency, capacitance, temperatureAdditional functions: HOLD, MIN, MAX, PEAK, relative measurement, Adjustable transformer ratios and much more.
Technical specifications
- Voltage reading range DC (min.)
60 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
60 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
600 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
600 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
600 Ω to 60 MΩ
- Reading range - capacity
6 nF to 60 mF
- Frequency reading range
60 Hz to 600 kHz
- Temperature
-200°C to +800 °C.
- Measurement type (details)
True RMS
- Interfaces
USB
- Power supply (details)
Batteries or NiMH rechargeable batteries
- Height
196 mm
- Width
90 mm
- Length
47 mm
- Weight
570 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC
DC
AC/DC
- Current reading
AC
DC
AC/DC
- Type
MTX 3291
- Display
Digital
- Display (counts)
60000
- Dim
(L x W x H) 47 x 90 x 196 mm
- Temperature reading range (max.)
+800 °C
- Temperature reading range (min.)
-200 °C
Documents & Downloads
Datasheet
Datasheet 1310074 Metrix MTX 3291 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60000
User & Safety Instructions
User & Safety Instructions 1310074 Metrix MTX 3291 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60000
Description
ASYC IV MTX 3291 - the new reference for multimetersThe portable digital multimeter allows direct measurement of the most important electrical parameters. They have an innovative design and are compact, robust, waterproof and ergonomic.
This text is machine translated.
This text is machine translated.

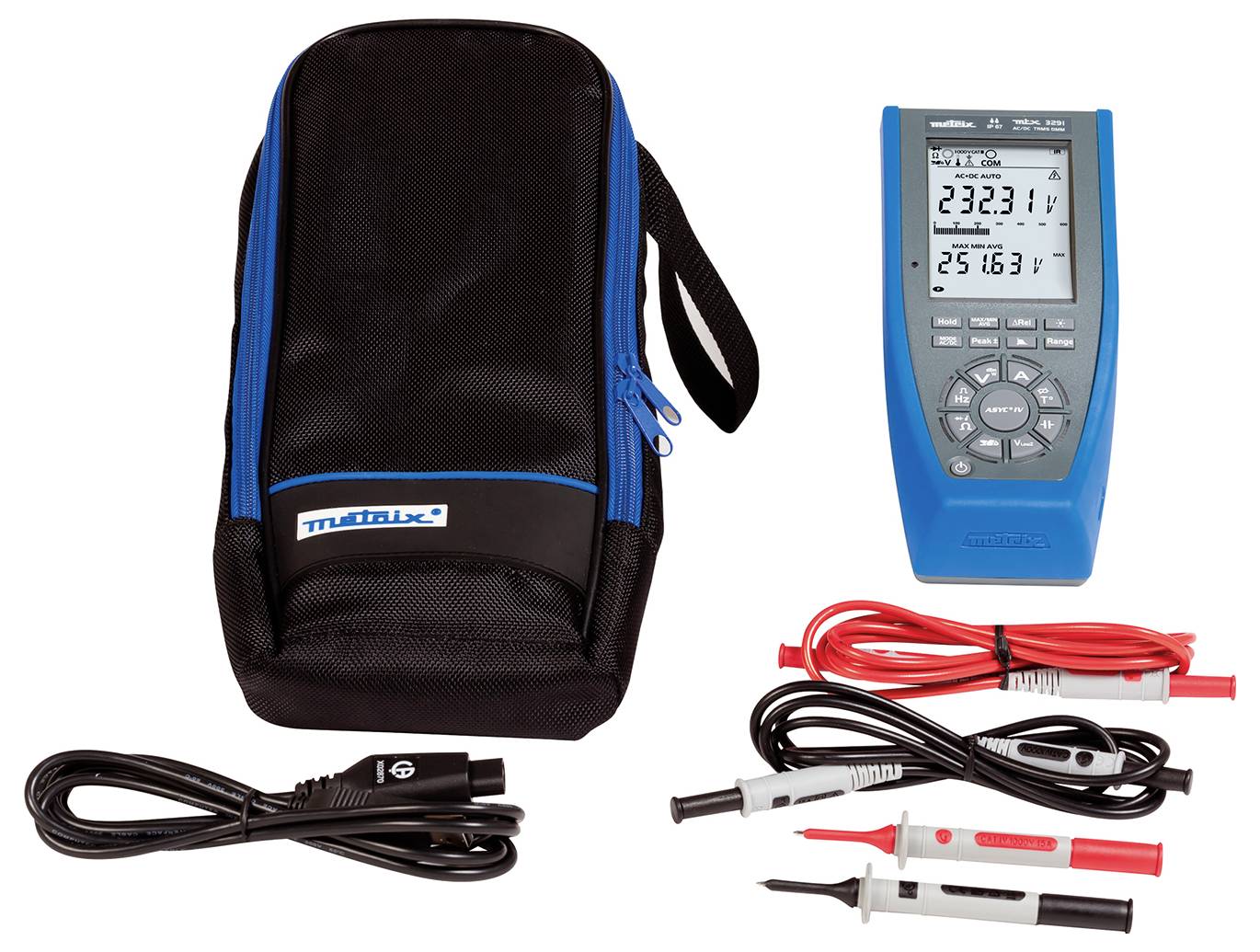

Scope of delivery
- 4 alkaline batteries 1.5 V
- 2 test leads 1.5 m with 2 straight plugs (red+black)
- 2 test probes cat IV 1 kV (red+black)
- 1 user manual on CD
- 1 printed quick start guide
- 1 carrying case
- 1 USB cable
- 1 remote programming instruction SCPI
- 1 software SX-DMM
