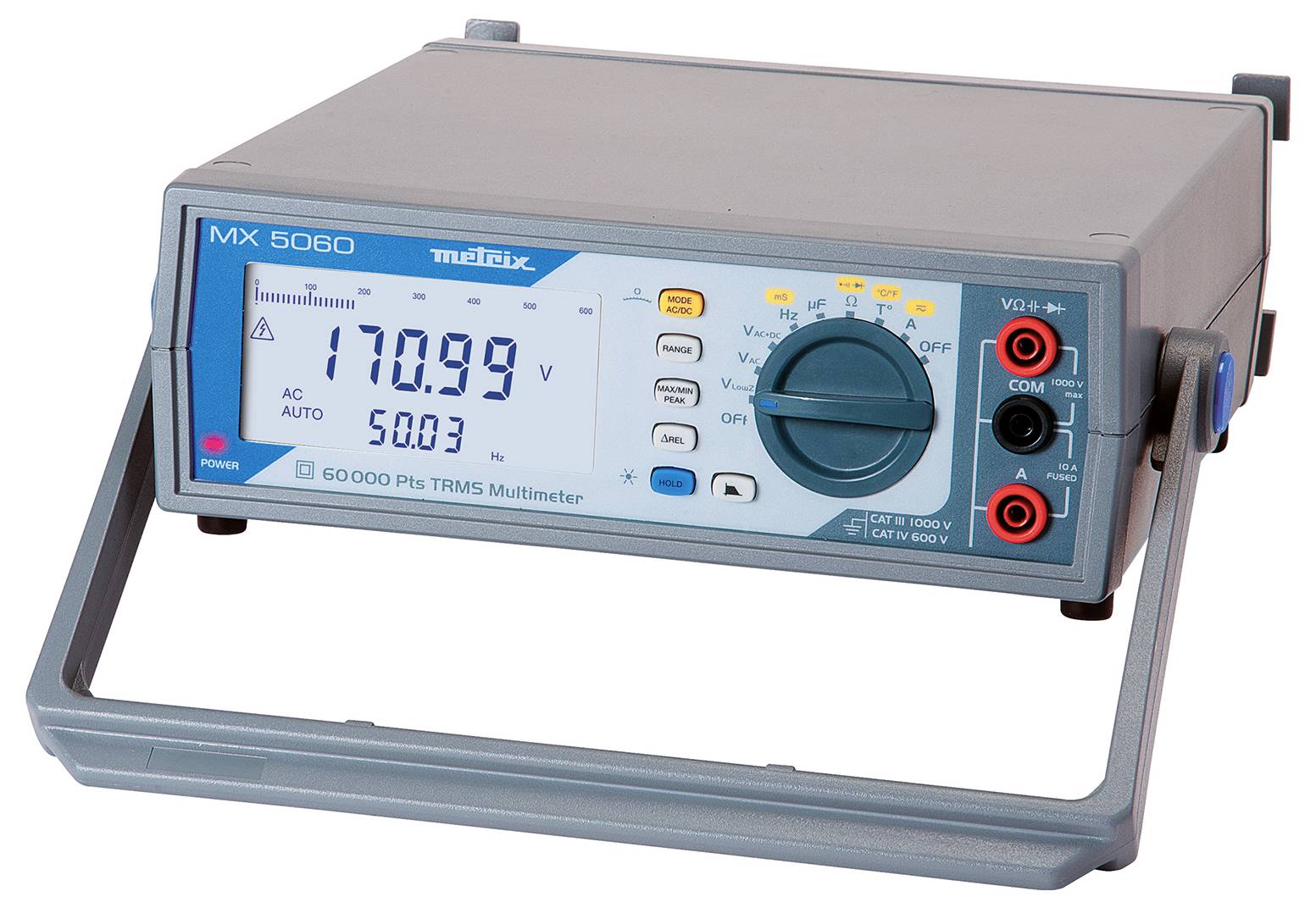

Metrix MX 5060 Bench multimeter Digital, Analogue CAT III 1000 V Display (counts): 60000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 520.17 / piece)
€ 520.17
plus VAT.
Only 2 Piece(s) available
Highlights & Details
For your laboratory applications - simple and efficient
- Easy current measurements with a single A input socket up to 10 A.
- AC+DC-TRMS measurements with a bandwidth of 100 kHz and a display up to 60,000 digits
- Stable measured values through VLowZ-measuring range, which suppresses phantom voltages
- Stable measurements on speed controllers with a PWM filter 300 Hz
- Monitoring and recording OF THE MIN, MAX, peak values with date/time
- Double insulation according to IEC 61010, 1000 V CAT III, optimized safety
Technical specifications
- Voltage reading range DC (min.)
60 mV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
60 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
6000 µA
- A DC reading range (max.)
20 A
- A AC reading range (min.)
6000 µA
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
600 Ω to 60 MΩ
- Reading range - capacity
6 nF to 60 mF
- Frequency reading range
60 Hz to 60 kHz
- Temperature
-200 °C to +1200 °C
- Interfaces
USB
- Height
295 mm
- Width
295 mm
- Length
95 mm
- Weight
1.85 kg
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
- Voltage metering
AC
AC/DC
DC
DC/TRMS
- Current reading
AC
AC/DC
DC
DC/TRMS
- Type
MX 5060
- Display
Digital
Analogue
- Display (counts)
60000
- Dim
(L x W x H) 95 x 295 x 295 mm
- Interfaces
USB
Documents & Downloads
Datasheet
Datasheet 1925290 Metrix MX 5060 Bench multimeter Digital, Analogue CAT III 1000 V Display (counts): 60000
User & Safety Instructions
User & Safety Instructions 1925290 Metrix MX 5060 Bench multimeter Digital, Analogue CAT III 1000 V Display (counts): 60000
Description
The TRMS multimeter MX 5006 & MX 5060 from Metrix were developed for maximum safety during measurement and cover a wide range of applications in electrical engineering and electronics. The multimeters have all the measuring functions required in the electronics: DC currents, resistors, frequencies, voltage peak values, RMS values etc… with their bandwidth of 100 kHz, the smallest measuring range of 60 mV and the resolution up to µV on the MX 5060, the multimeters offer high measuring accuracy in all measuring modes, comparable to portable VDC multimeters with 0.05 %. The large measuring ranges and the numerous combination possibilities make the instruments extremely versatile and find different applications in electrical engineering and at speed controllers.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 mains connection cable
- 1 set of test leads 1.5 m straight/straight (red + black)
- 1 set of test probes (red + black)
- 1 USB cable
- 1 user manual on CD
- 1 quick guide on paper
- 1 instructions for remote programming
