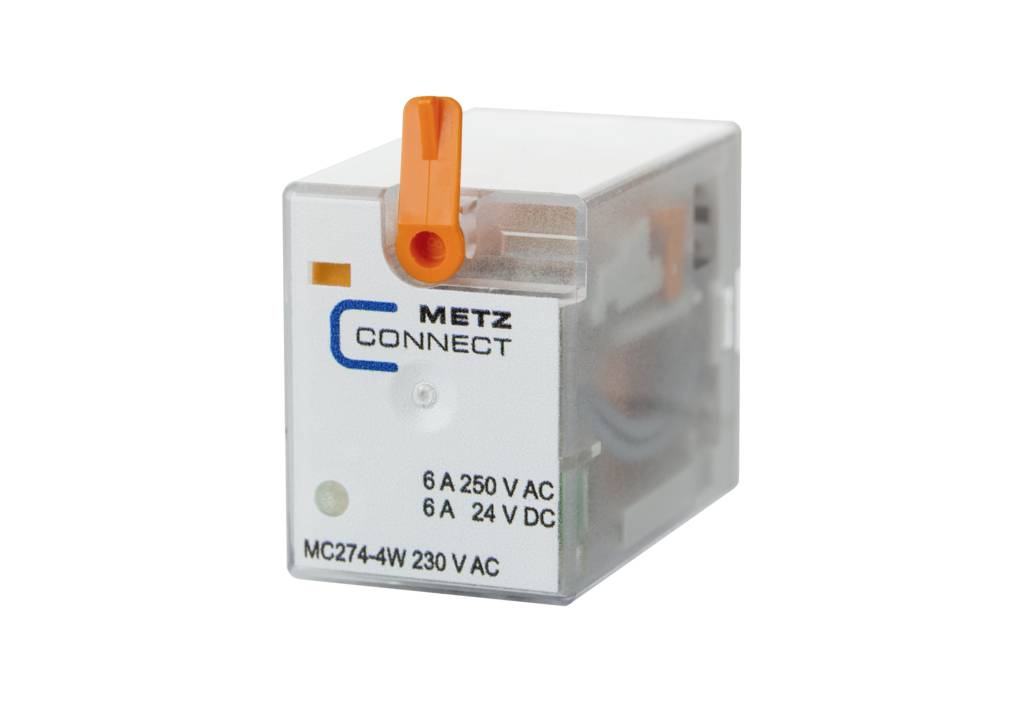

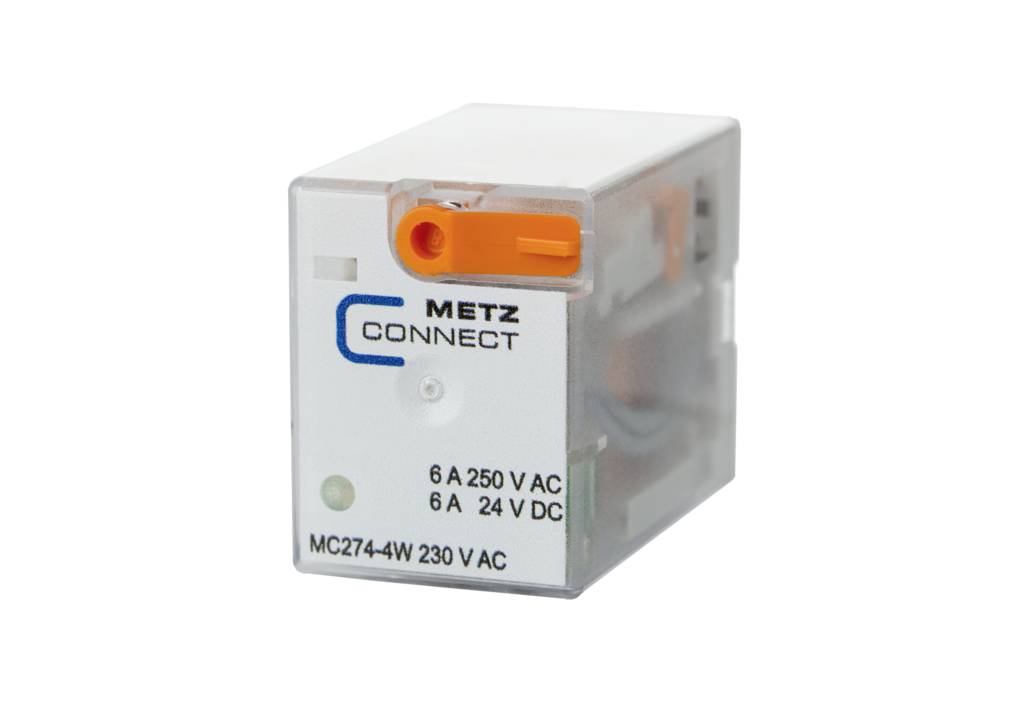

Metz Connect 110017051407 Plug-in relay 230 V AC 7 A 4 change-overs 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Contact type
4 change-overs
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
PLUG-IN RELAY MC274-4W 230 V AC
Highlights & Details
- Coupling RelaysIndustrial relayPower relaysPlug-in RelaysHand test buttonTest keyBTR Industrial relayCan be plugged inBTR Netcom
Technical specifications
- Packaging type
Piece
- Product type
Plug-in relay
- Type
110017051407
- Coil nominal voltage
230 V AC
- Coil voltage rating
1.6 VA
- Contact type
4 change-overs
- Contact material
Cadmium free (Ag-alloy)
- Switching voltage (max.)
250 V AC
- Switching current (max.)
7 A
- Max. switching capacity
1500 VA
- Connection
Jack connector
- Features
+ test button
- Min. temperature
-40 °C
- Max. temperature
+55 °C
- Weight
35 g
- Factory colour
Grey
- Width
21 mm
- Height
35.50 mm
- Depth
27.40 mm
- Dim
(W x H x D) 21 x 35.50 x 27.40 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860542 Metz Connect 110017051407 Plug-in relay 230 V AC 7 A 4 change-overs 1 pc(s) Piece
Description
Compact, pluggable relay for industrial use. Mating tabs are designed as soldering lugs, mechanical status indicator, with manual test button, cadmium-free contacts, LED indicator.
