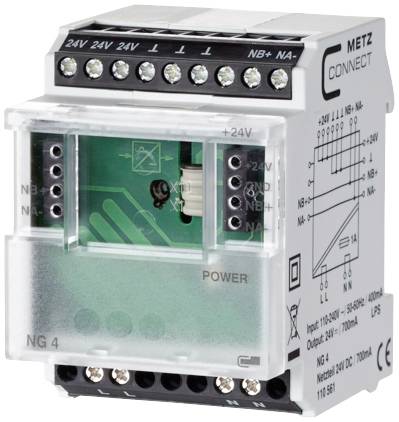

Metz Connect 110561 PSU 24 V DC 700 mA 16 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Input frequency range 47 ~ 63Hz
- Power resistance 4000 V/AC (input/output)
- Connection terminal 4-pin
- Colour: grey
- Material housing: Polyamide 6.6 V0
- Product type
PSU
- Min. input voltage
110 V AC
- Inputs
1
- Input voltage
110 - 240 V AC
- Input voltage (max.)
240 V AC
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
16 W
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 60 x 50 x 69.30 mm
- Weight
108 g
- Output voltage (max.)
24 V DC
- Operating temperature (max.)
+55 °C
- Operating temperature (min.)
-10 °C
- Manufacturer part #
110561
- Content
1 pc(s)
- Width
50 mm
- Height
69.30 mm
- Length
60 mm
IP40
Protection class II
- Type
NG4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3164636 Metz Connect 110561 PSU 24 V DC 700 mA 16 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164636 Metz Connect 110561 PSU 24 V DC 700 mA 16 W Content 1 pc(s)
Description
The power supply NG4 provides a regulated DC voltage of 24 V DC / 16 W for the supply of devices of the product family I / O components Secondary voltage can only be tapped on the right side of the device front through a pluggable terminal as well as through the screw terminals. Bus communication can be picked up on both sides of the device front with plug-in terminals. Parallel operation of several power supply units is not permitted. Suitable for decentralized mounting on support rail TH35 as per IEC 60715 in electric distributors. Connection with screw terminals.
