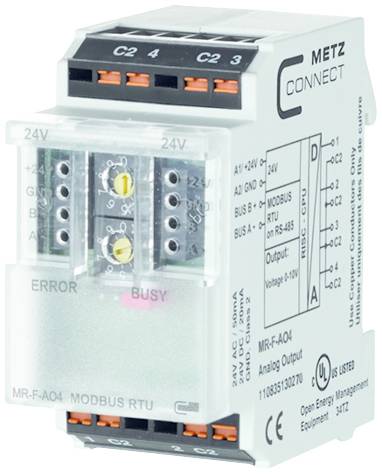

Metz Connect 110835130270 24 V AC, 24 V DC 50 mA No. of outputs:4 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Max. Current consumption 50 mA/AC; 20 mA/DC
- Connection terminal 4-pin
- Colour: grey
- Product type
Bus
- Type
MR-F-AO4 Modbus RTU
- No. of outputs
4 x
- Dim
(L x W x H) 60 x 35 x 69.30 mm
- Height
69.30 mm
- Width
35 mm
- Manufacturer part #
110835130270
- Length
60 mm
IP40
- Operating temperature (max.)
+55 °C
- Operating temperature (min.)
-5 °C
- Max. output current
50 mA
- Output voltage (max.)
24 V AC
24 V DC
- Output voltage (nominal)
24 V AC
24 V DC
- Weight
72 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3164642 Metz Connect 110835130270 24 V AC, 24 V DC 50 mA No. of outputs:4 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164642 Metz Connect 110835130270 24 V AC, 24 V DC 50 mA No. of outputs:4 x Content 1 pc(s)
Description
The Modbus module with 4 analogue outputs was developed for decentralized switching tasks. It is suitable as a reference magnitude giver for e.g. electrical ventilation and mixing flaps, valve positions, etc. Via a Modbus master, the outputs can be output via standard registers. The addressing of the module, the setting of the bit rate and parity is made by 2 address switches on the front or via software. Suitable for decentralized mounting on support rail TH35 as per IEC 60715 in electric distributors. Connection with spring clamps (Push-In).
This text is machine translated.
This text is machine translated.
Features
- Intelligent components
- ModBUS
- ModBus RTU
- ModBus I/Os
- I/O module
- I/O components
- Output module
- Analogue Output
- RS485
- Decentralized mounting
- 45 mm cap size
