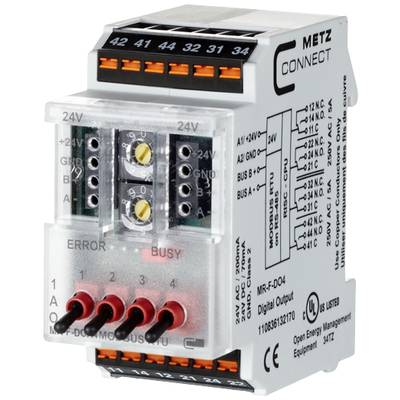

Metz Connect 110836132170 24 V AC, 24 V DC 200 mA No. of outputs:4 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Max. Current consumption 200 mA/AC; 70 mA/DC
- Relay output 4 changeover contact
- Switching voltage relay output max. 250 V/AC
- Continuous current relay output 5 A / relay
- Connection terminal 4-pin
- Colour: grey
- Product type
Bus
- Type
MR-F-DO4 Modbus RTU
- No. of outputs
4 x
- Dim
(L x W x H) 60 x 35 x 69.30 mm
- Height
69.30 mm
- Width
35 mm
- Manufacturer part #
110836132170
- Length
60 mm
IP40
- Operating temperature (max.)
+55 °C
- Operating temperature (min.)
-5 °C
- Max. output current
200 mA
- Output voltage (max.)
24 V AC
24 V DC
- Output voltage (nominal)
24 V AC
24 V DC
- Weight
95 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3164643 Metz Connect 110836132170 24 V AC, 24 V DC 200 mA No. of outputs:4 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164643 Metz Connect 110836132170 24 V AC, 24 V DC 200 mA No. of outputs:4 x Content 1 pc(s)
Description
The Modbus module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, e.g. motors, contactors, lamps, shutters, etc. In this case, the relay contacts must be protected by suitable load-dependent measures. The module has a manual control level with which the relays can be switched manually. Via a Modbus master, the outputs can be switched via standard register. The addressing of the module, the setting of the bit rate and parity is made by 2 address switches on the front or via software. Suitable for decentralized mounting on support rail TH35 as per IEC 60715 in electric distributors. Connection with spring clamps (Push-In).
This text is machine translated.
This text is machine translated.
Features
- Intelligent components
- ModBUS
- ModBus RTU
- ModBus I/Os
- I/O module
- I/O components
- Output module
- Digital output
- RS485
- Decentralized mounting
- 45 mm cap size
