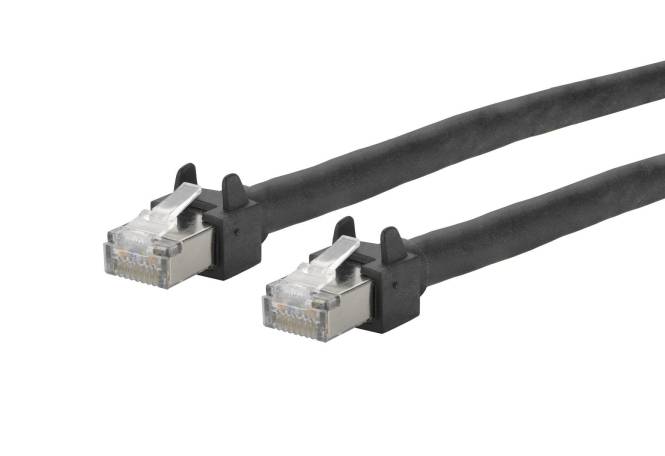

Buy Metz Connect 13084F0500-E RJ45 Patch cable CAT 5e S/UTP 0.50 m Black Suitable for drag chains, PUR coating, UV-resistant

Metz Connect 13084F0500-E RJ45 Patch cable CAT 5e S/UTP 0.50 m Black Suitable for drag chains, PUR coating, UV-resistant-0

Product type

Patch cable

Specification

CAT 5e

Shielding

S/UTP

Connection type

RJ45

Cable length

0.50 m

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Shielded CAT.5e, Class EA RJ45 patch cable for industrial and outdoor applications...

Highlights & Details

RJ45 Patch cable for industrial and outdoor applications
Shielded CAT.5e, Class EA RJ45 patch cable
Suitable for 10 GBit/s Ethernet up to 40m
Robust and abrasion-resistant cable for industrial applications
Constructed for repeated moving application (drag chain)

Technical specifications

Product group: Network components
Product type: Industrial Networking
Colour, black
Length: 0.5 m
Shielding type S/UTP
Transmission quality Cat5e/Class D
Power over Ethernet (PoE) PoE+ (IEEE 802.3at)
Allocation 1:1
Kink protection sleeve: Splashed
Page 1 Port Type: RJ-45 (8P8C)
Page 1 Type of connection: Male (plug)
Page 2 Port Type: RJ-45 (8P8C)
Page 2 Type of connection: Male (plug)
Suitable for drag chains: Yes
Oil resistant: Yes
Halogen-free: Yes
Halogen free according to EN IEC 60754-2: Yes
Min. Operating temperature 0 °C
Max. operating temperature: 50 °C
Min. Storage temperature: -40 °C
Storage temperature max. 70 °C.
Weight: 46 g
Packaging height 20 mm
Package width 150 mm
Packaging depth 190 mm
Package weight: 0.05 kg
Gross weight: 0.05

Product type: Patch cable

: CAT 5e

: S/UTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 8p8c plug

No. of B connections: 1 x

Type B: RJ45 8p8c plug

Cable length: 0.50 m

Factory colour: Black

Connector version: straight

Cable features: Suitable for drag chains
PUR coating
UV-resistant

Cable use: Networks

Version: Cable

Halogen-free: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3739851 Metz Connect 13084F0500-E RJ45 Patch cable CAT 5e S/UTP 0.50 m Black Suitable for drag chains, PUR coating, UV-resistant

Description

Shielded CAT.5e, Class EA RJ45 patch cable for industrial and outdoor applications Compliance with class EA Channel-Link to ISO/IEC 11801-1, DIN EN 50173-1. Tested: Channel link up to 500 MHz. Suitable for 10 GBit/s Ethernet (IEEE 802.3an) up to 40m. Particularly suitable for unshielded and shielded Class EA systems. Robust and abrasion-resistant cable for industrial applications, such as mechanical engineering and plant construction. Also suitable for laying in the open. Compliance with VDE-AR-N 4100:2019-04 (6KV surge voltage test in accordance with DIN EN 60664-1) when laying in the counter space and electrical distributor. Cable type S/UTP 4x2xAWG24/7. Cable sheath LSHF (FRNC) PUR; black The cable is designed for repeated moving applications (drag chain). Tested with a bending radius of 100mm and an acceleration of 4m/s² 3 MIO cycles were reached at room temperature. Two shielded RJ45 connector protective element 1 - 1 UV; Oil resistant. Remote Power (PoE, PoE plus and PoE). For IoT; M2M, IoT; HDBaseT; Industrial 4.0; Multimedia; Suitable broadband video. Strain relief sleeve injected. Longer durability than standard patch cables Very short kink protection sleeve

This text is machine translated.
