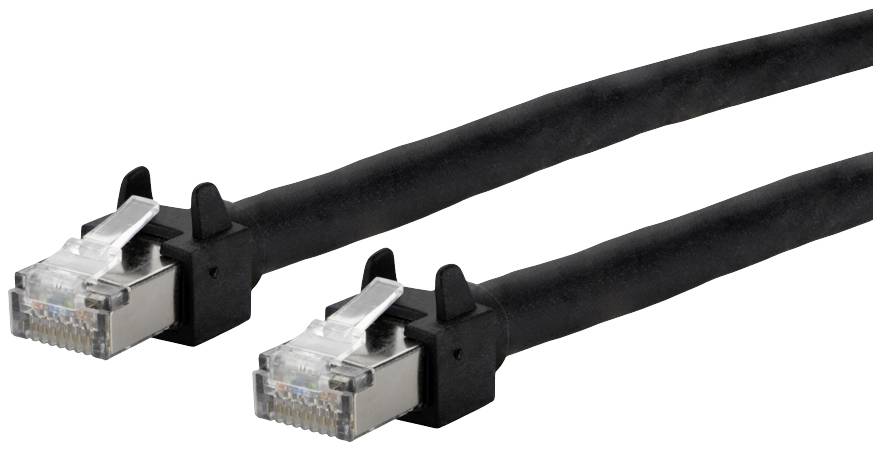

Metz Connect 13084F5000-E RJ45 Patch cable CAT 5e S/UTP 5.00 m Black Suitable for drag chains, PUR coating, UV-resistant
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 5e
Shielding
S/UTP
Connection type
RJ45
Cable length
5.00 m
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 3 Piece(s) available
Patch cable 6kV Flex500 Outdoor 5.0 m black
Highlights & Details
- Patch cable 6kV Flex500
- Outdoor 5.0 m black
Technical specifications
- Product type
Patch cable
CAT 5e
S/UTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 8p8c plug
- No. of B connections
1 x
- Type B
RJ45 8p8c plug
- Cable length
5.00 m
- Factory colour
Black
- Connector version
straight
- Cable features
Suitable for drag chains
PUR coating
UV-resistant
4x2xAWG24/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
- Max. frequency
100 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
- Halogen-free
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899179 Metz Connect 13084F5000-E RJ45 Patch cable CAT 5e S/UTP 5.00 m Black Suitable for drag chains, PUR coating, UV-resistant
User & Safety Instructions
User & Safety Instructions 2899179 Metz Connect 13084F5000-E RJ45 Patch cable CAT 5e S/UTP 5.00 m Black Suitable for drag chains, PUR coating, UV-resistant
Description
RJ45 patch cable for industrial and outdoor applications, shielded Cat.5e, Class EA RJ45 patch cable, compliance with the class EA channel link according to ISO/IEC 11801-1, DIN EN 50173-1, tested: Channel-Link up to 500 MHz, suitable for 10 GBit/s Ethernet (IEEE 802.3an) up to 40m, particularly suitable for unshielded and shielded Class EA systems, robust and abrasion-resistant cable for industrial applications, such as mechanical and plant engineering. Also suitable for outdoor installation, compliance with VDE-AR-N 4100:2019-04 (6KV surge voltage test in accordance with DIN EN 60664-1) for laying in counter space and electrical distributors, cable type: S/UTP 4x2xAWG24/7, cable jacket LSHF (FRNC) PUR, black, The cable is designed for repeated moving applications (drag chain). 3 MIO were tested with a bending radius of 100mm and an acceleration of 4m/s². Cycles reached at room temperature.Two shielded RJ45 plugs, wiring 1 - 1, UV, resistant to oil, remote power (PoE, PoE plus and PoE), for IoT, M2M, IoT, HDBaseT, Industry 4.0, multimedia, broadband video suitable, compression protection sleeve sprayed, significantly longer durability than standard patch cable, very short bend protection sleeve
This text is machine translated.
This text is machine translated.
Features
- RJ45 Patch cable for industrial and outdoor applications
- Shielded Cat. 5e, Class EA RJ45 patch cable
- Adherence to the class EA Channel-Link according to ISO/IEC 11801-1, DIN EN 50173-1
- Tested: Channel link up to 500 MHz
- Suitable for 10 GBit/s Ethernet (IEEE 802.3an) up to 40m
- Particularly suitable for unshielded and shielded Class EA systems
- Robust and abrasion-resistant cable for industrial applications
- As in machine and plant engineering. Also suitable for laying in the open
- Compliance with VDE-AR-N 4100:2019-04 (6KV surge voltage test in accordance with DIN EN 60664-1) when laying in the counter space and electrical distributor
- Cable type S/UTP 4x2xAWG24/7
- CABLE SHEATH LSHF (FRNC) PUR
- Black
- The cable is designed for repeated moving applications (drag chain). 3 MIO were tested with a bending radius of 100mm and an acceleration of 4m/s². Cycles at room temperature reached.Two shielded RJ45 plugs
- Wiring 1 - 1
- UV,oil resistant
- Remote Power (PoE
- PoE plus and PoE)
- Suitable for IoT, M2M, IoT, HDBaseT, Industrial 4.0, Multimedia, Broadband Video
- Strain relief sleeve injected
- Longer durability than standard patch cables
- Very short kink protection sleeve
Scope of delivery
- Patch cable 6kV Flex500 Outdoor 5.0 m black
